Beckhoff BC9050 Ethernet Tcp/Ip BUS Terminal Controller

Auf Lager4 EinheitenVersandbereit

Ethernet TCP/IP Bus Terminal Controller

Beckhoff BC9050 compact controller with TwinCAT support, 48 kB program memory, 32 kB data memory, Modbus TCP protocol, and 24 V DC power supply.

Hersteller
BECKHOFF
SKU
1083000
Kategorie
PLC Modules
Zustand
Neu
Gebraucht Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

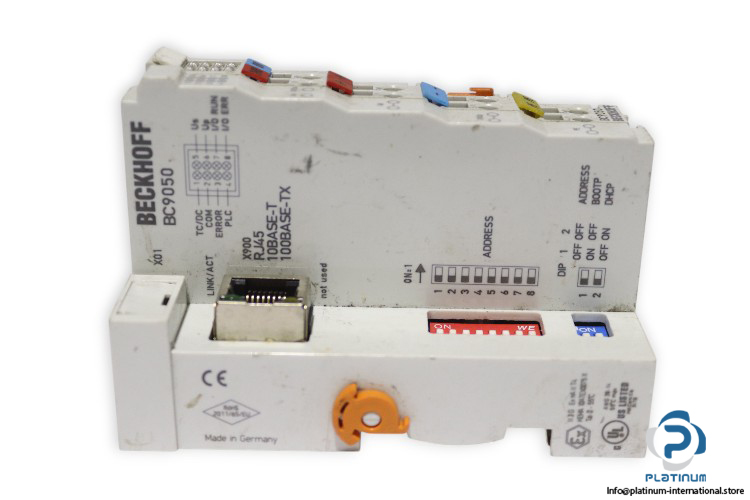

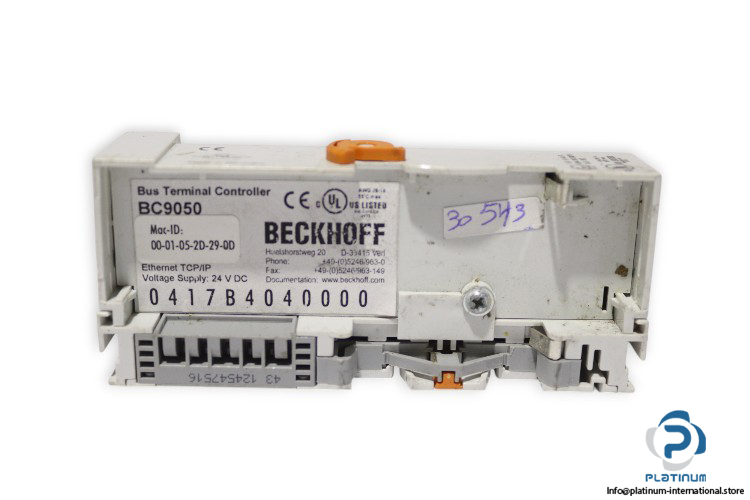

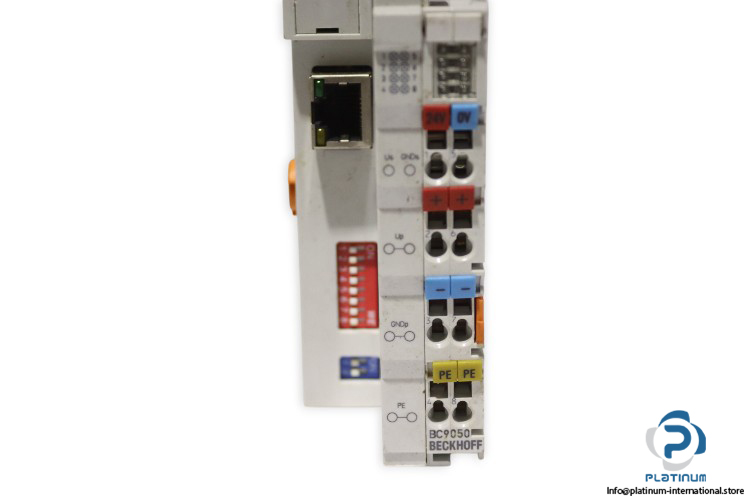

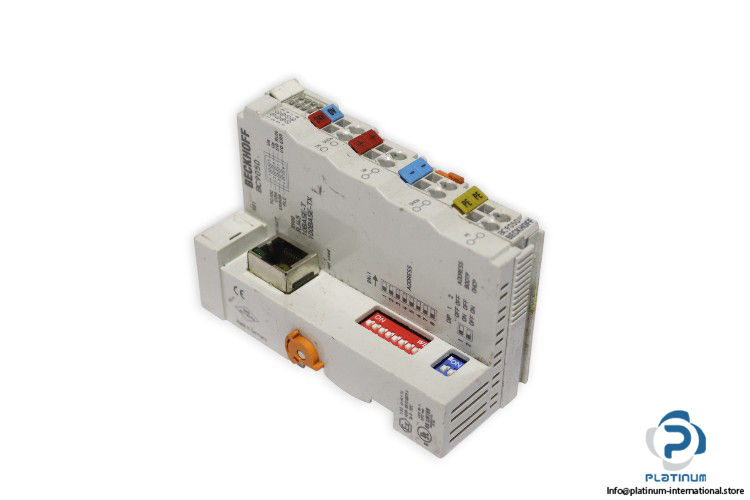

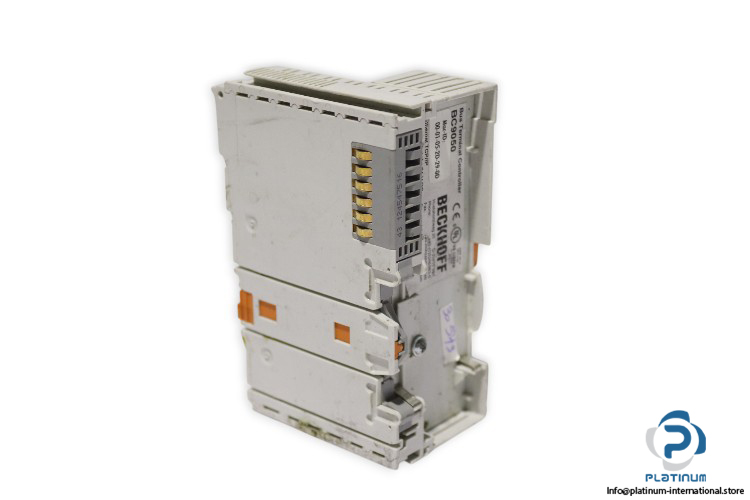

Beckhoff BC9050 Ethernet TCP/IP Bus Terminal Controller

The Beckhoff BC9050 is a compact Ethernet TCP/IP bus terminal controller designed for automation solutions. It supports TwinCAT programming, multiple interfaces, and provides high-performance PLC functionality in demanding industrial environments.

Manufacturer: Beckhoff

Type: Ethernet TCP/IP Bus Terminal Controller

Model: BC9050

MAC ID: 00-01-05-2d-29-0d

Programmingvia TwinCAT and programming interface or Ethernet
Program Memory48 kbytes
Data Memory32 kbytes
Remanent Data2 kbytes
Runtime System1 PLC task
PLC Cycle Timeapprox. 1.5 ms for 1,000 instructions (without I/O cycle, K-bus)
Programming LanguagesIEC 61131-3 (IL, LD, FBD, SFC, ST)
Number of Bus Terminals64 (255 with K-bus extension)
Max. Bytes Fieldbus512 byte input and 512 byte output
Max. Bytes Process Image2048 byte input and 2048 byte output
Digital Peripheral Signals2,040 inputs/outputs
Analog Peripheral Signals512 inputs/outputs
ProtocolTwinCAT ADS, Modbus TCP
Data Transfer Rates10/100 Mbaud, automatic recognition
Bus Interface1 x RJ45
Power Supply24 V DC (-15 %/+20 %)
Input Current65 mA + (total K-bus current)/4
Starting Currentapprox. 2.5 x continuous current
Recommended Fuse‰¤ 10 A
Current Supply K-bus1750 mA
Power Contactsmax. 24 V DC / max. 10 A
Electrical Isolation500 V (power contact/supply voltage/fieldbus)
Operating Temperature0 / +55 °C
