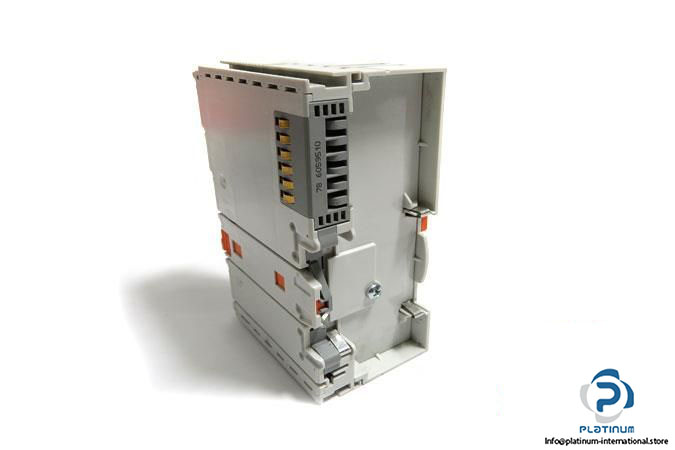

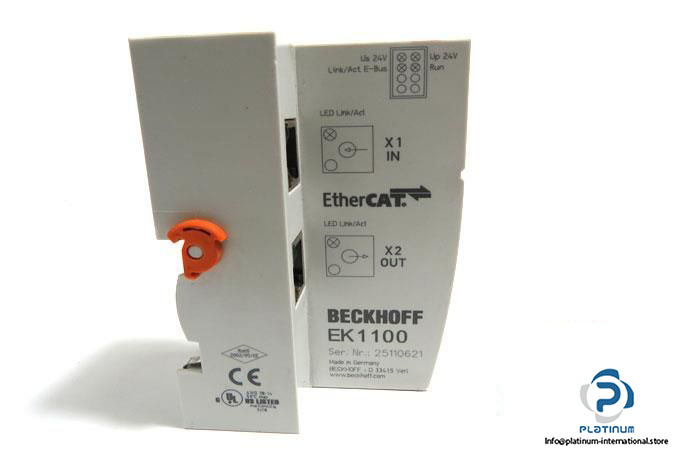

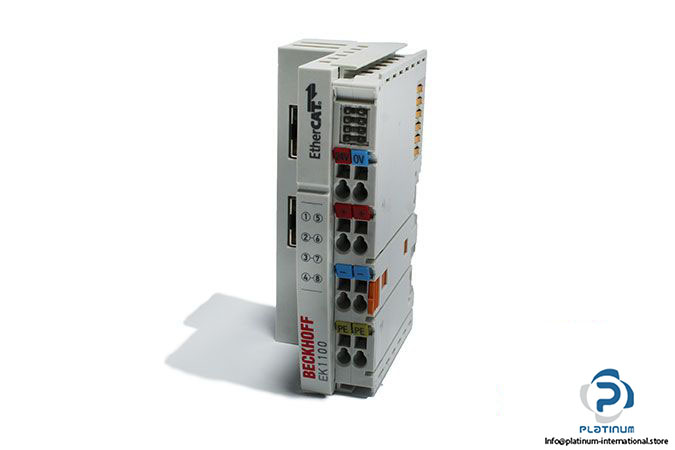

Beckhoff EK 1100 Ethercat Coupler

Auf Anfrage verfügbar

90,00$

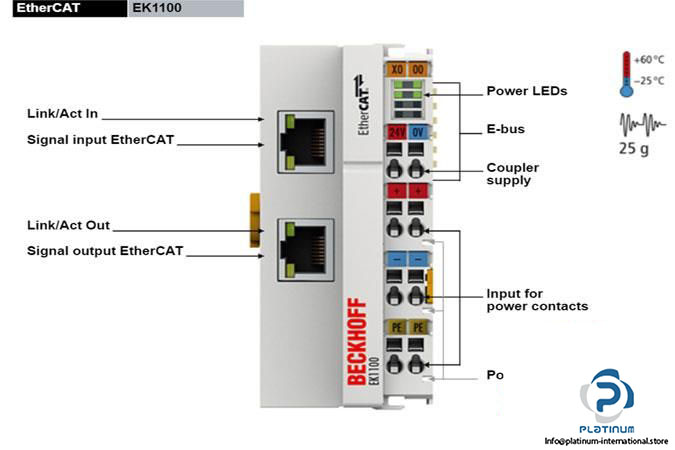

EtherCAT Coupler The BECKHOFF EK1100 is an EtherCAT Coupler designed to connect EtherCAT Terminals to 100BASE-TX networks, providing fast and reliable industrial communication.

Hersteller
BECKHOFF
SKU
923537
Kategorie
PLC Modules
Zustand
Gebraucht
Neu Auf Lager 149,99$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Task within EtherCAT systemcoupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks
Transmission mediumEthernet/EtherCAT cable (min. Cat.5), shielded
Distance between stationsmax. 100 m (100BASE-TX)
Number of EtherCAT Terminalsup to 65,534
ProtocolEtherCAT
Power Supply24 V DC (-15%/20%)
Current Supply E-bus2000 mA
Power Contacts24 V DC
Current Power Contacts10 A
Electrical Isolation500 V
Bus interface2 x RJ45
Delay1 µs
Transfer Rate100 Mbit/s
ProtectionIP20
Operating Temp.-25 … 60 °C
Design formcompact terminal housing with signal LEDs
Materialpolycarbonate
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means ofdouble slot and key connection
Markinglabeling of the BZxxxx series
Wiringsolid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Dimensions (W x H x D)44 mm x 100 mm x 68 mm
ConditionUsed
SKU923537
Weight0,11

You May Also Need

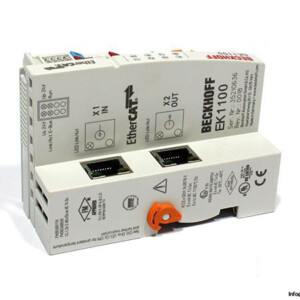

Beckhoff EK 1100 Ethercat Coupler
