Beckhoff EK 1100 Ethercat Coupler

Disponible bajo solicitud

90,00$

EtherCAT Coupler The BECKHOFF EK1100 is an EtherCAT Coupler designed to connect EtherCAT Terminals to 100BASE-TX networks, providing fast and reliable industrial communication.

Fabricante
BECKHOFF
SKU
923537
Categoría
PLC Modules
Condición
Usado
Nuevo En stock 149,99$
Este producto también está disponible completamente nuevo
Ver nueva versión →
Compartir
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
Task within EtherCAT systemcoupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks
Transmission mediumEthernet/EtherCAT cable (min. Cat.5), shielded
Distance between stationsmax. 100 m (100BASE-TX)
Number of EtherCAT Terminalsup to 65,534
ProtocolEtherCAT
Power Supply24 V DC (-15%/20%)
Current Supply E-bus2000 mA
Power Contacts24 V DC
Current Power Contacts10 A
Electrical Isolation500 V
Bus interface2 x RJ45
Delay1 µs
Transfer Rate100 Mbit/s
ProtectionIP20
Operating Temp.-25 … 60 °C
Design formcompact terminal housing with signal LEDs
Materialpolycarbonate
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means ofdouble slot and key connection
Markinglabeling of the BZxxxx series
Wiringsolid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Dimensions (W x H x D)44 mm x 100 mm x 68 mm
ConditionUsed
SKU923537
Weight0,11

You May Also Need

Beckhoff EK 1100 Ethercat Coupler
Nuevo

BECKHOFF

Beckhoff EK 1100 Ethercat Coupler

SKU: 993839

Cant.: 41

149,99$
Beckhoff EK 1100 Ethercat Coupler
Nuevo

BECKHOFF

Beckhoff EK 1100 Ethercat Coupler

SKU: 1100790

Cant.: 8

Disponible previa cotización
Beckhoff CU2508-0000 Ethernet Port Multiplier
Nuevo

BECKHOFF

Beckhoff CU2508-0000 Ethernet Port Multiplier

SKU: 1104183

Cant.: 1

Disponible previa cotización
Beckhoff EL3164 Ethercat Terminal
Nuevo

BECKHOFF

Beckhoff EL3164 Ethercat Terminal

SKU: 1101447

Cant.: 1

Disponible previa cotización
Beckhoff C6640-1014-0040 Control Cabinet Industrial Computer PC
Nuevo

BECKHOFF

Beckhoff C6640-1014-0040 Control Cabinet Industrial Computer PC

SKU: 1104157

Cant.: 1

Disponible previa cotización
Beckhoff EL6652 Ethercat Terminal
Nuevo

BECKHOFF

Beckhoff EL6652 Ethercat Terminal

SKU: 1101442

Cant.: 1

Disponible previa cotización
Beckhoff ES1252 ETHERCAT TERMINAL
Nuevo

BECKHOFF

Beckhoff ES1252 ETHERCAT TERMINAL

SKU: 1101452

Cant.: 1

Disponible previa cotización

Productos Relacionados

Beckhoff EK1501 Ethercat Coupler
Usado

BECKHOFF

Beckhoff EK1501 Ethercat Coupler

SKU: 1059668

Cant.: 4

Disponible previa cotización
Beckhoff EL6731 Ethercat Terminal
Nuevo

BECKHOFF

Beckhoff EL6731 Ethercat Terminal

SKU: 1074999

Cant.: 1

Disponible previa cotización

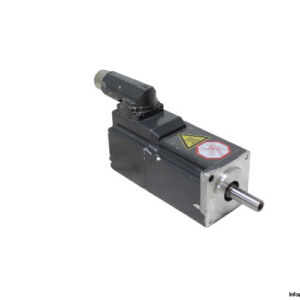

Beckhoff AM8111-0F20-0000 Servomotor
