Beckhoff EL 1502 2-CHANNEL Digital Input

Auf Lager2 EinheitenVersandbereit

EtherCAT Terminal

BECKHOFF EL1502 2-channel digital input EtherCAT terminal with 24 V DC nominal voltage, 100 kHz counting frequency, 32-bit counter depth, and IP20 protection for industrial automation systems.

Hersteller
BECKHOFF
SKU
1083426
Kategorie
PLC Modules
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

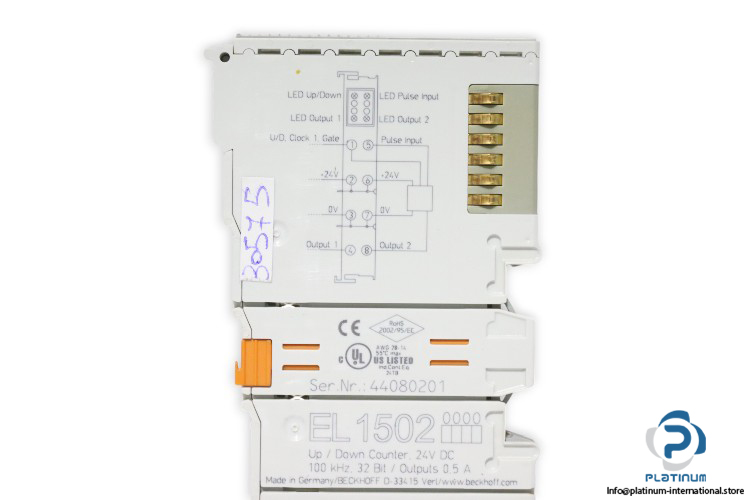

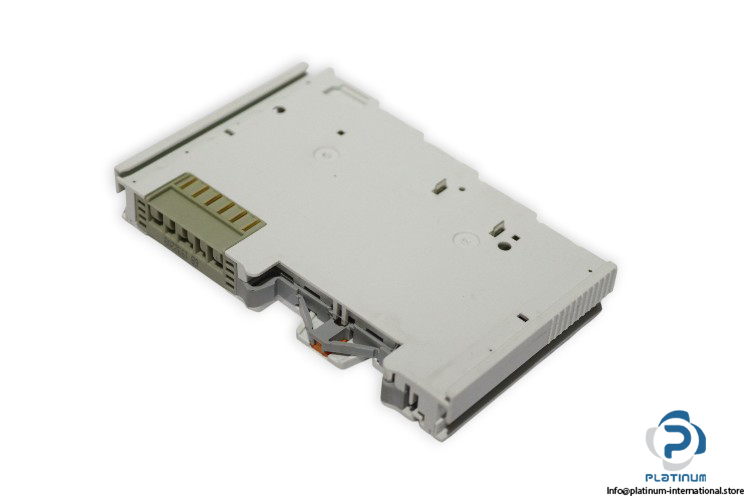

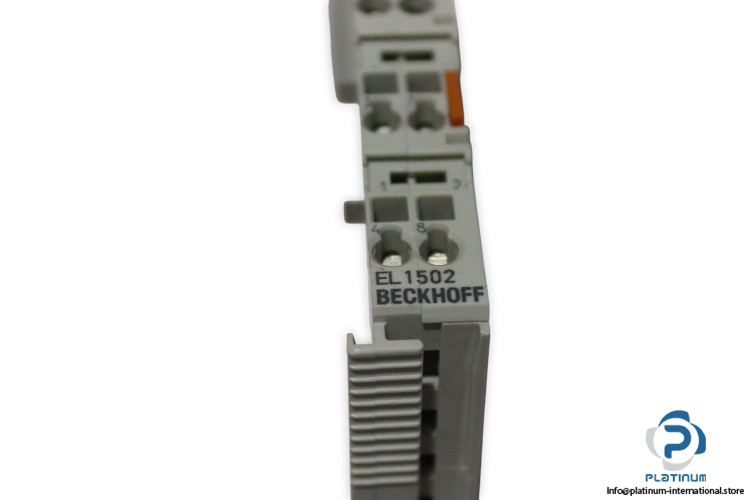

BECKHOFF EL1502 EtherCAT Terminal

The BECKHOFF EL1502 is a compact 2-channel digital input EtherCAT terminal designed for high-performance industrial automation systems. It supports fast counting frequencies, integrated electrical isolation, and robust compliance with international standards, ensuring reliability in demanding applications.

Manufacturer: BECKHOFF

Type: EtherCAT Terminal, 2-channel digital input

Model: EL1502

Serial No.: 44080201

Nominal Voltage24 V DC
0 Signal Voltage-3 / +5 V (EN 61131-2, type 1)
1 Signal Voltage15 / 30 V (EN 61131-2, type 1)
Input Currenttyp. 5 mA (EN 61131-2, type 1)
Counting Frequencymax. 100 kHz
Max. Output Current24 V/0.5 A (short-circuit proof) per channel
Current Consumption Power Contactstyp. 14 mA + load
Current Consumption E-bustyp. 130 mA
Counter Depth32 bit
Electrical Isolation500 V (E-bus/field potential)
ConfigurationNo address setting, configuration via the EtherCAT master
Special FeaturesSet counters, switch outputs
Operating Temperature-25 / +60°C
Storage Temperature-40 / +85°C
Relative Humidity95%, no condensation
Vibration/Shock ResistanceConforms to EN 60068-2-6/EN 60068-2-27
EMC Immunity/EmissionConforms to EN 61000-6-2/EN 61000-6-4
Protection Rating/Installation PositionIP20 / variable
Pluggable WiringFor all ESxxxx terminals
Ex MarkingATEX: II 3 G Ex ec IIC T4 Gc / IECEx: Ex ec IIC T4 Gc
MaterialPolycarbonate
InstallationOn 35 mm DIN rail, conforming to EN 60715 with lock
Dimensions (W x H x D)12 mm x 100 mm x 68 mm
