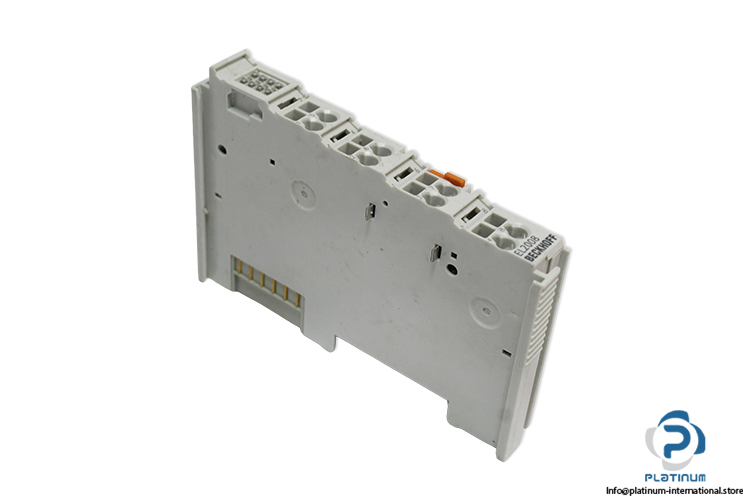

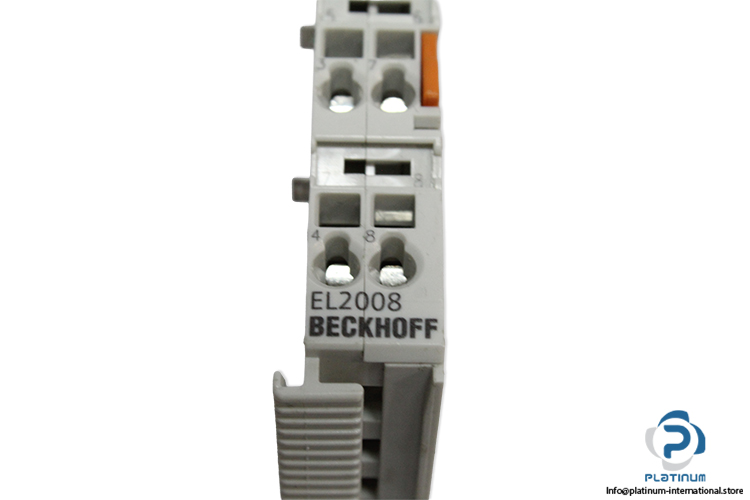

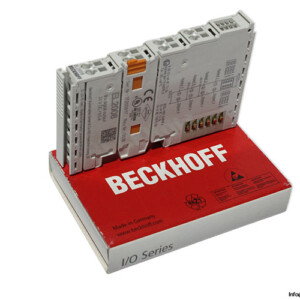

Beckhoff EL2008 Ethercat Terminal
Gebraucht
Auf Lager1 EinheitVersandbereit
EtherCAT Terminal Beckhoff EL2008 EtherCAT terminal with 8 digital outputs, 24 V DC operation, compact DIN rail mounting design, and fast switching performance for industrial automation applications.
24v8AutomationBeckhoffControldcDigitalDINEL2008EtherCATI/OIndustrialModuleOutputPLCrailSystemterminal
Neu
Auf Lager 39,99$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

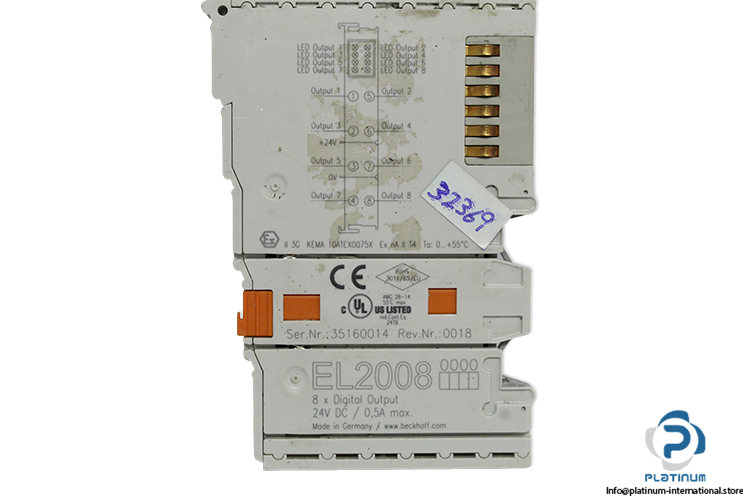

| Serial No. | 35160014 |
| Rev. No. | 0018 |
| No. of digital output (DO) | 8 |
| Connection Technology | 1-wire |
| Load type | ohmic, inductive, lamp load |
| Nominal voltage | 24 V DC |
| Output current | max. 0.5 A |
| Electrical isolation | 500 V |
| Short-circuit current | typ. < 2 A |
| Switching times | typ. TON: 60 µs, typ. TOFF: 300 µs |
| Current consumption E-bus | typ. 110 mA |
| Material | Polycarbonate |
| Protection degree | IP20 |
| Operating temperature | -25 to 60°C |
| Standard | II 3G Ex nA IIC T4 Gc, KEMA 10ATEX0075 X, IECEx DEK 16.0078 X, Ex nA IIC T4 Gc, Ex tc IIIC T135 C Dc |
| Certificate | cULus, CE |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Terminal No. | 10023042491419 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | Used |
| SKU | 1084764 |
| Weight | 0,05 |
