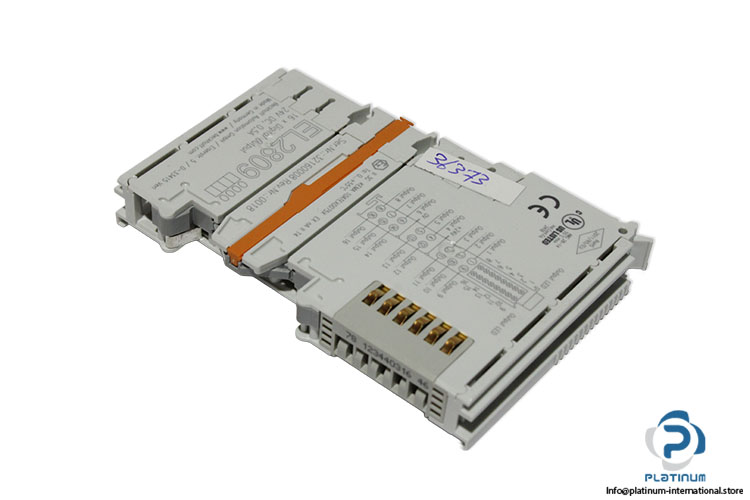

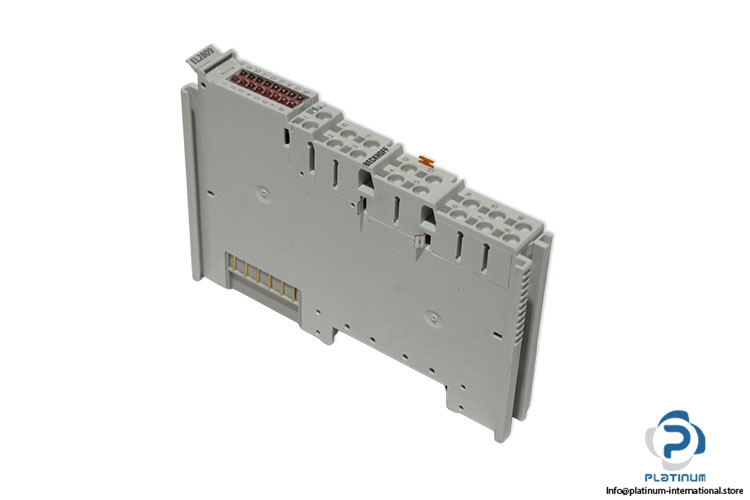

Beckhoff EL2809-0000 Ethercat Terminal
Neu
Auf Lager3 EinheitenVersandbereit
111,11$
EtherCAT Terminal Beckhoff EL2809-0000 16-channel digital output EtherCAT terminal designed for high-speed switching, reliable signal transmission, and compact installation in industrial automation systems.
24vAutomationBeckhoffComponentsControldcDigitalDINElectronicsEtherCATI/OIndustrialModuleOutputPLCrailSystemterminal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

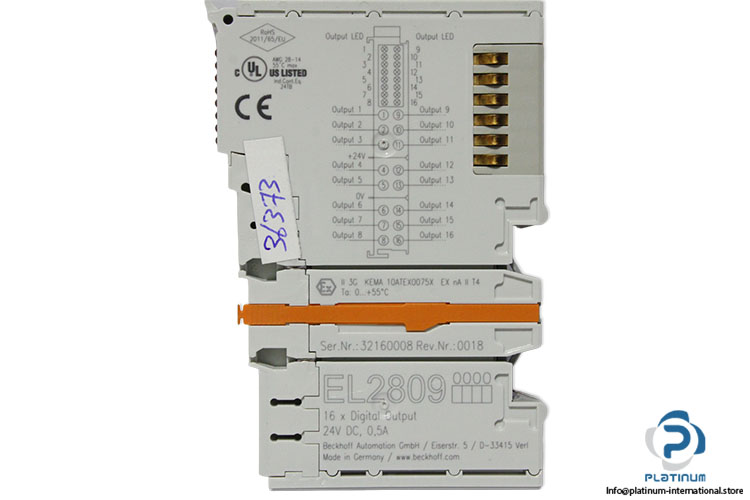

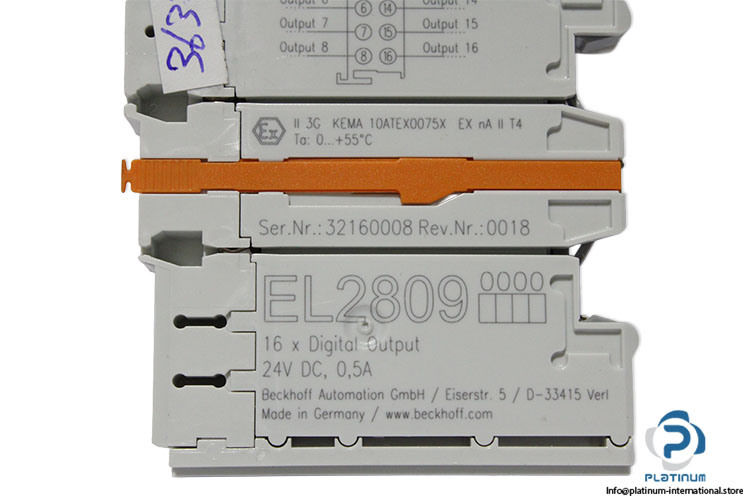

| Serial No. | 32160008 |
| Rev. No. | 0018 |
| Connection Technology | 1-wire |
| No. of digital outputs (DO) | 16 |
| Nominal Voltage | 24 V DC |
| Load type | ohmic, inductive, lamp load |
| Output current | max. 0.5 A |
| Short-circuit current | typ. < 2 A |
| Breaking energy | < 150 mJ/channel |
| Electrical isolation | 500 V |
| Switching times | typ. TON: 60 µs, typ. TOFF: 300 µs |
| Current consumption E-bus | typ. 140 mA |
| Current load power contacts | typ. 35 mA + load |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | 0 to 55 °C |
| Certificate | cULus, CE |

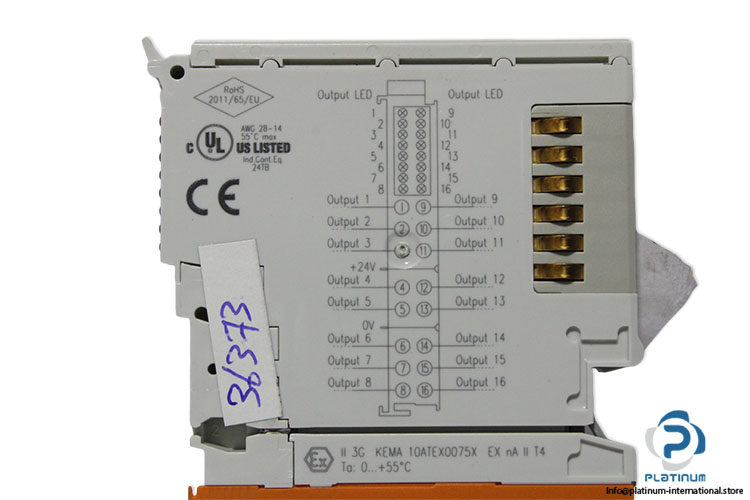

| Standard | Il 3G KEMA 10ATEX0075X EX nA II T4 |

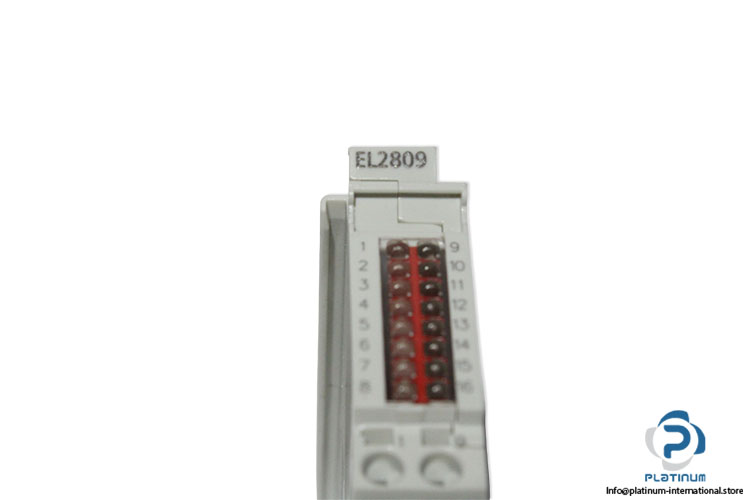

| Design form | HD (High Density) housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | Labeling of the BZxxxx series |

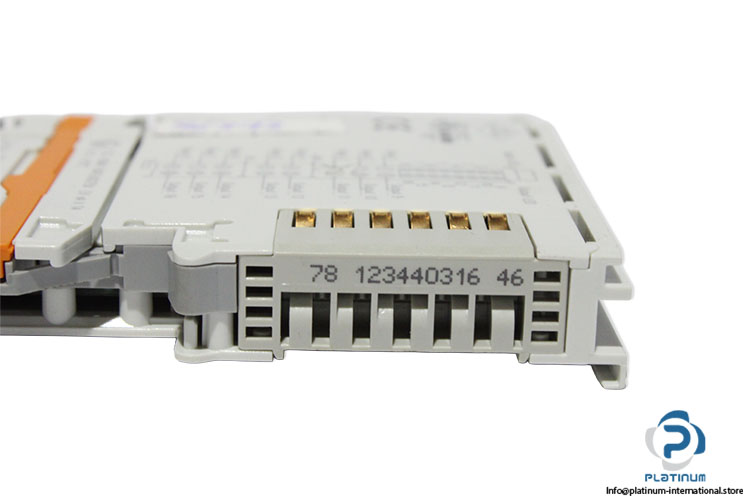

| Terminal No. | 78 123440316 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097606 |
| Weight | 0,05 |
