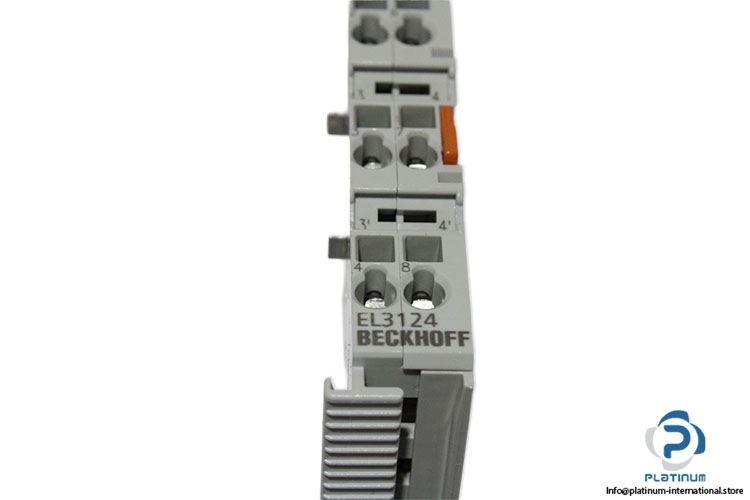

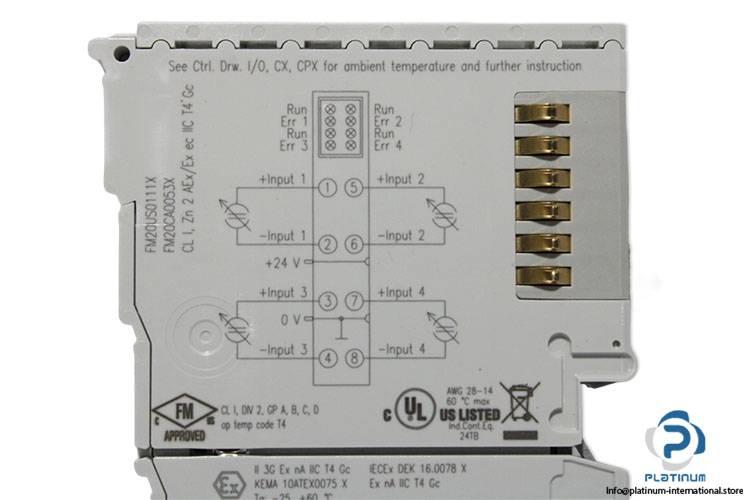

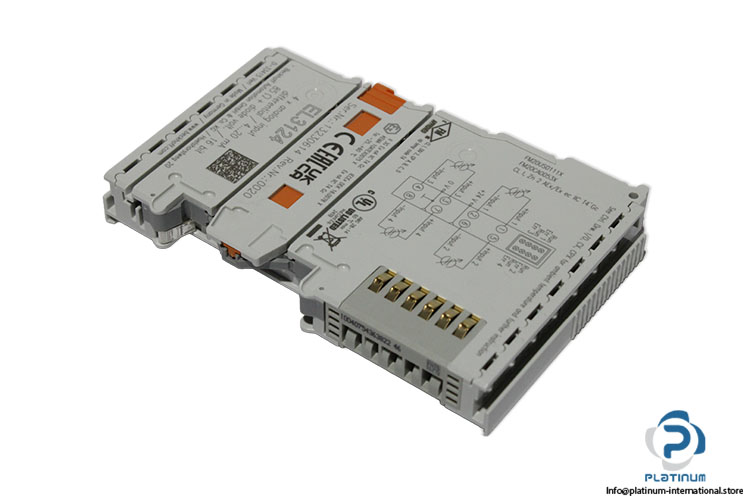

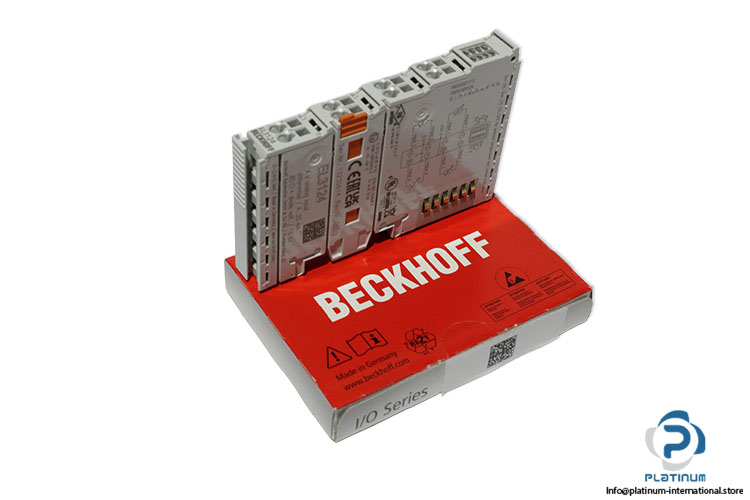

Beckhoff EL3124 Ethercat Terminal
Neu
Auf Lager5 EinheitenVersandbereit
111,11$
EtherCAT Terminal Beckhoff EL3124 4-channel analog input EtherCAT terminal designed for precise 4 to 20 mA signal acquisition, high-resolution measurement, and industrial automation applications.
4AcquisitionAnalogAutomationBeckhoffchannelControlDINEL3124EtherCATI/OIndustrialInputModulePLCProcessrailSignalterminal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

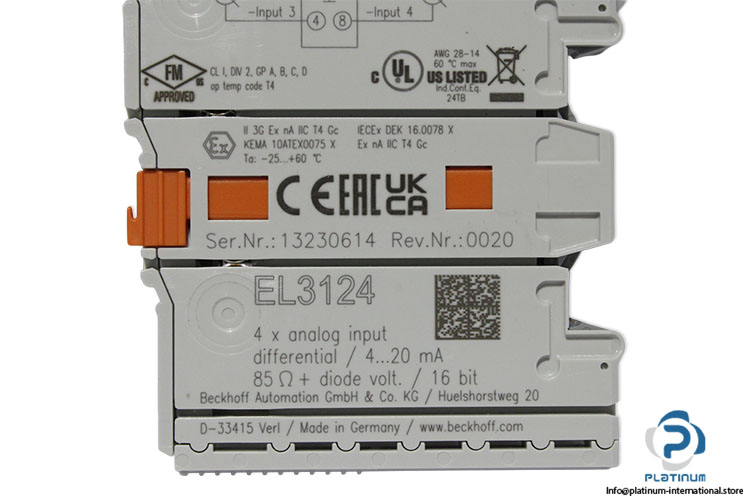

| Serial No. | 13230614 |
| Rev. No. | 0020 |
| No. of analog inputs (AI) | 4 |
| Nominal Voltage | via the E-bus |
| Signal current | 4 to 20 mA |
| Internal resistance | typ. 85 ohm + diode voltage |
| Input filter limit frequency | 5 kHz |
| Conversion time | 100 ms |
| Resolution | 16 bits (incl. sign) |
| Electrical isolation | 500 V |
| Current consumption E-bus | typ. 130 mA |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | -25 to 60°C |
| Certificate | cULus, CE, UKCA, EAC |
| Standard | II 3G Ex nA IIC T4 Gc, IECEx DEK 16.0078 X, KEMA 10ATEX0075 X, Ex nA IIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | Labeling of the BZxxxx series |

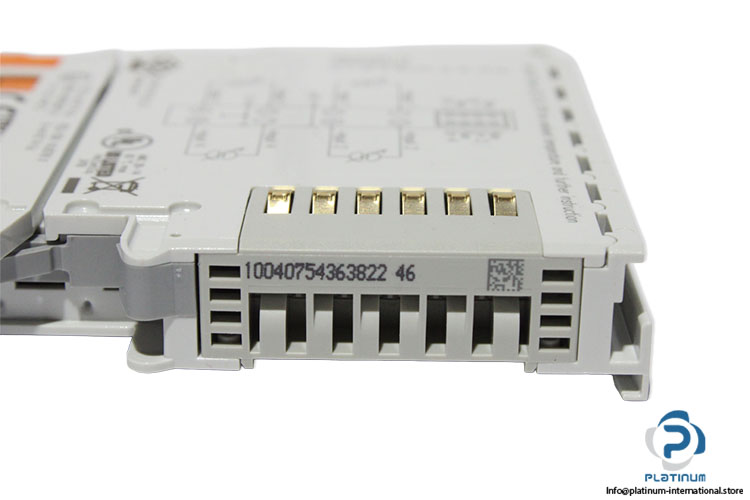

| Terminal No. | 10040754363822 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097599 |
| Weight | 0,06 |
