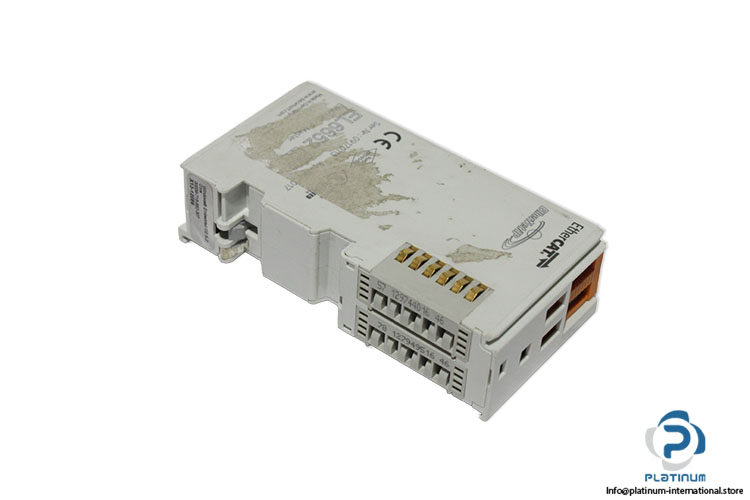

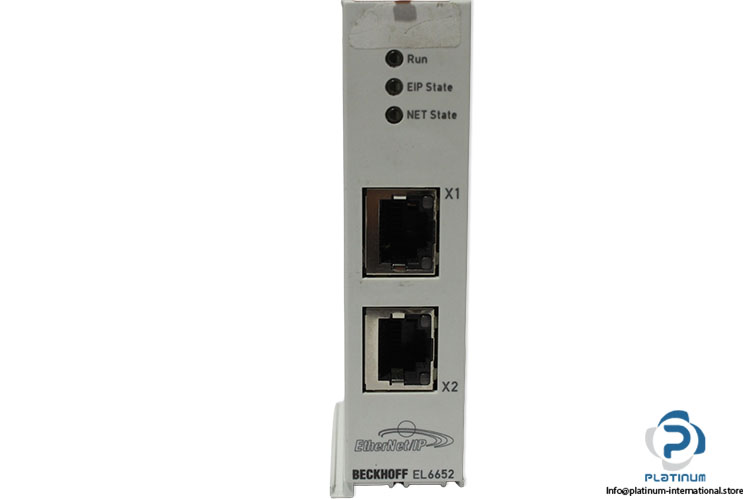

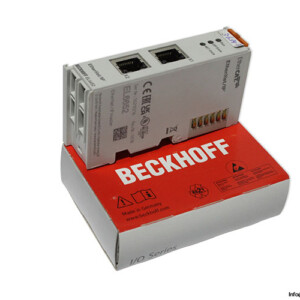

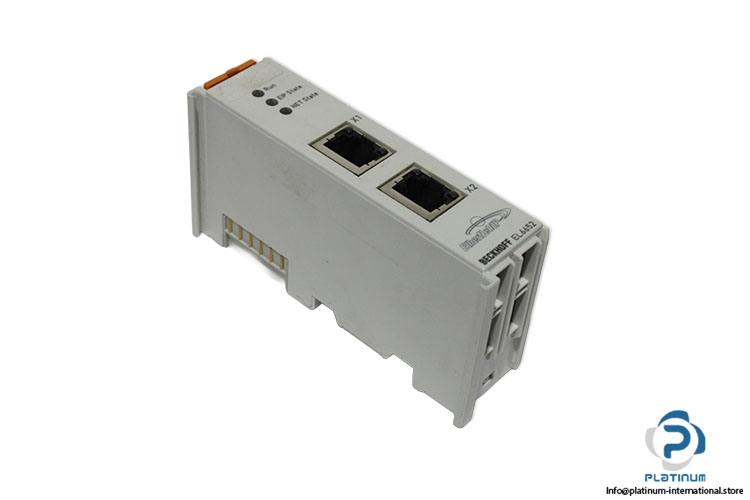

Beckhoff EL6652 Ethercat Terminal
Gebraucht
Auf Lager1 EinheitVersandbereit
111,11$
EtherCAT Terminal Beckhoff EL6652 EtherCAT terminal with dual switched RJ45 ports, EtherNet/IP™ communication, compact DIN rail design, and reliable industrial network integration for automation systems.
AutomationBeckhoffCommunicationDINEL6652EtherCATEthernEthernetIndustrialInterfaceIPModulerailRJ45terminal
Neu
Auf Lager 199,99$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

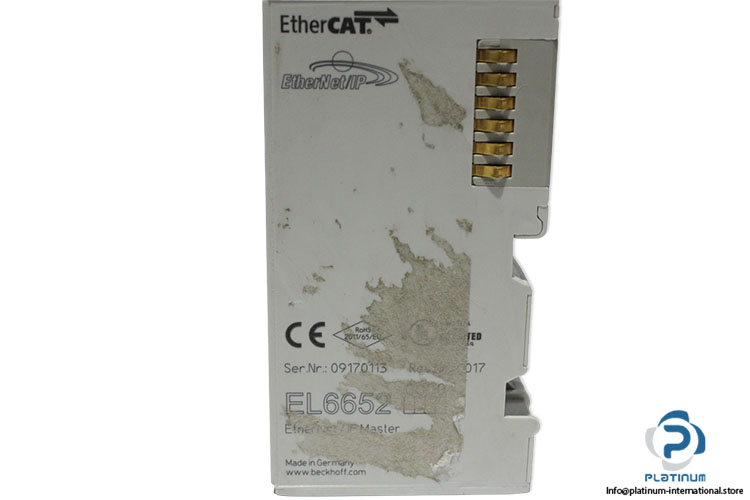

| Serial No. | 09170113 |
| Rev. No. | 0017 |
| No. of channels | 1 |
| Number of ports | 2 (switched) |
| Process data size | Max. 1 kbyte input/1 kbyte output data |
| Ethernet interface | 100BASE-TX Ethernet with 2 x RJ45 |
| Cable length | up to 100 m twisted pair |
| Hardware diagnostics | status LEDs |
| Power supply | via the E-bus |
| Electrical isolation | 500 V (E-bus/Ethernet) |
| Protocol | EtherNet/IP™ |
| Configuration | via EtherCAT master |
| Current consumption E-bus | typ. 400 mA |
| Special features | multicast/unicast connection |
| Material | Polycarbonate |
| Operating temperature | 0 to 55°C |
| Certificate | CE, EAC, UKCA, cULus |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Wiring | specific push-in connection |

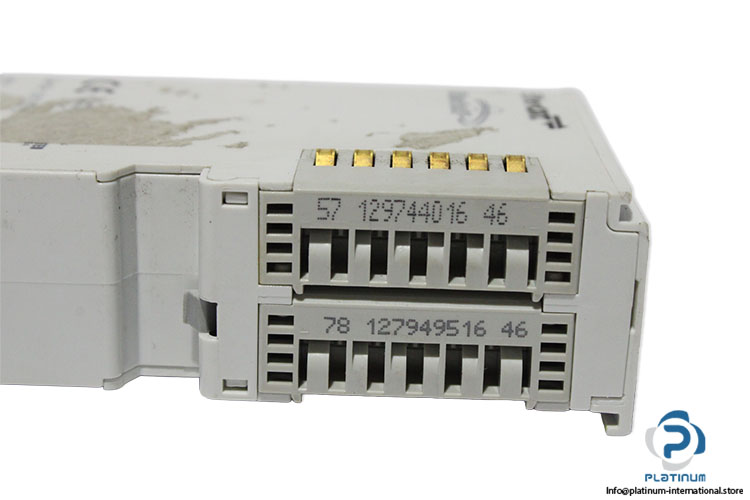

| Terminal No. | 57 129744016 46 / 78 127949516 46 |
| Dimensions | 24 x 100 x 52 mm |
| Condition | Used |
| Stock Key | JO-004 |
| SKU | 1097584 |
| Weight | 0,07 |
