Belimo SR24A-MP-5 Rotary Actuator
Belimo Drehantrieb SR24A-MP-5 24V AC/DC Drehantrieb mit 20 Nm Drehmoment, MP-Bus Steuerung und Temperaturbereich von -30 bis 50°C für HLK-Systeme.

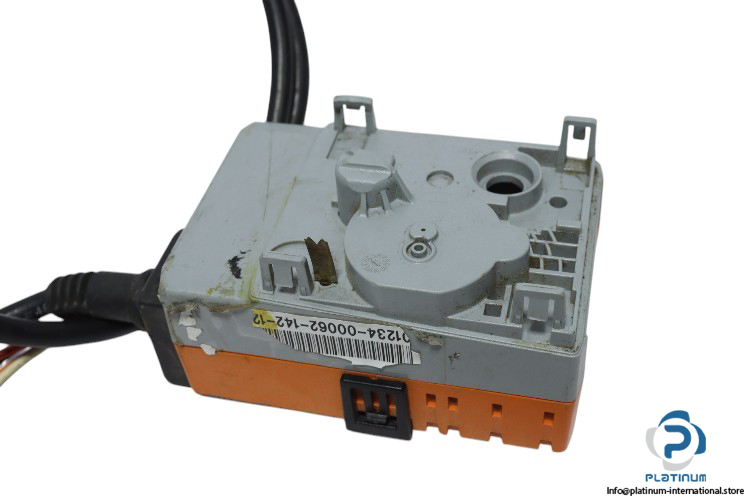

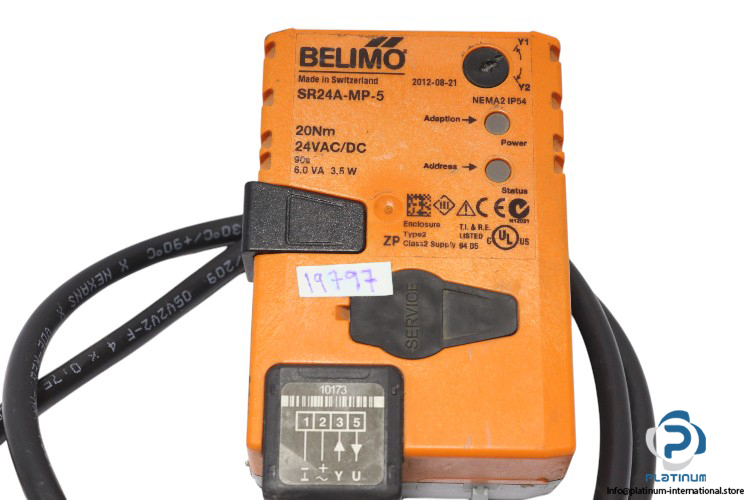

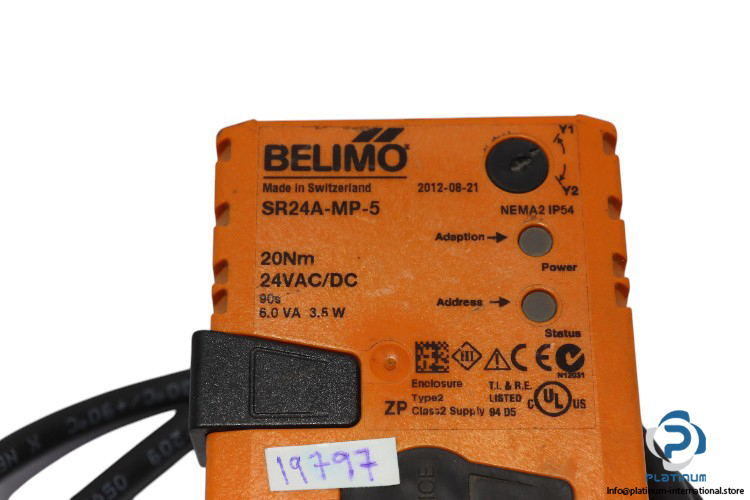

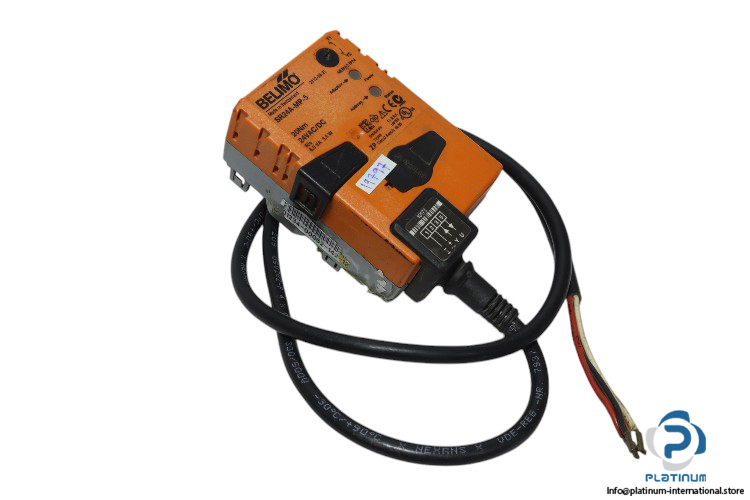

Belimo Rotary Actuator SR24A-MP-5
The Belimo Rotary Actuator SR24A-MP-5 is designed for precise control of heating, ventilation, and air conditioning (HVAC) systems. It operates with a nominal voltage of AC/DC 24 V and features a torque motor of 20 Nm. The actuator supports communicative control via MP-Bus and can accommodate up to 8 nodes. The power consumption is 3.5 W during operation and 1.25 W in the rest position, with a power consumption for wire sizing of 6 VA. The actuator operates within a temperature range of -30 to 50°C, providing reliable performance for various HVAC applications.
| Nominal Voltage | AC/DC 24 V |
| Nominal Voltage Frequency | 50/60 Hz |
| Nominal Voltage Range | 19.2...28.8 V AC / 21.6...28.8 V DC |
| Power Consumption in Operation | 3.5 W |
| Power Consumption in Rest Position | 1.25 W |
| Power Consumption for Wire Sizing | 6 VA |
| Connection Supply/Control | Cable 1 m, 4x 0.75 mm² |
| Communicative Control | MP-Bus |
| Number of Nodes MP-Bus Max | 8 |
| Torque Motor | 20 Nm |
| Operating Range | Y 2...10 V |
| Input Impedance | 100 k„¦ |
| Ambient Temperature | -30...50°C |
