BI-Sonic 4E-230B Axial FAN
Gebraucht
Auf Lager2 EinheitenVersandbereit
Axial Fan
The BI-Sonic 4E-230B is a compact axial fan with a metal frame, 230V AC rating, and flow rate up to 89 CFM. Ideal for cooling and ventilation in industrial environments.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

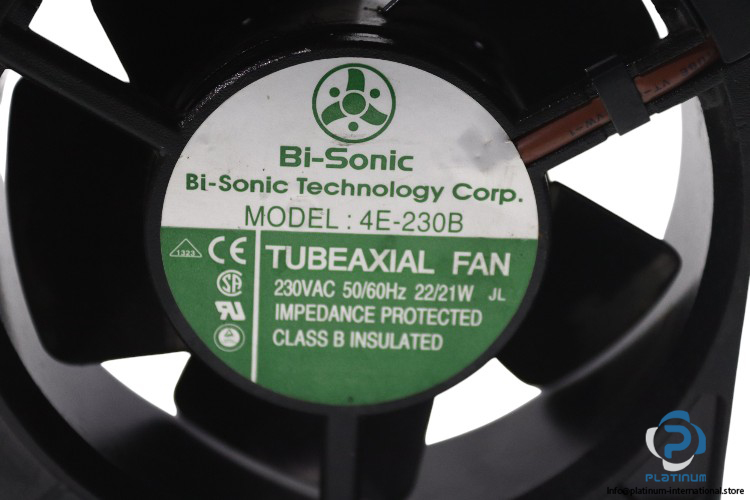

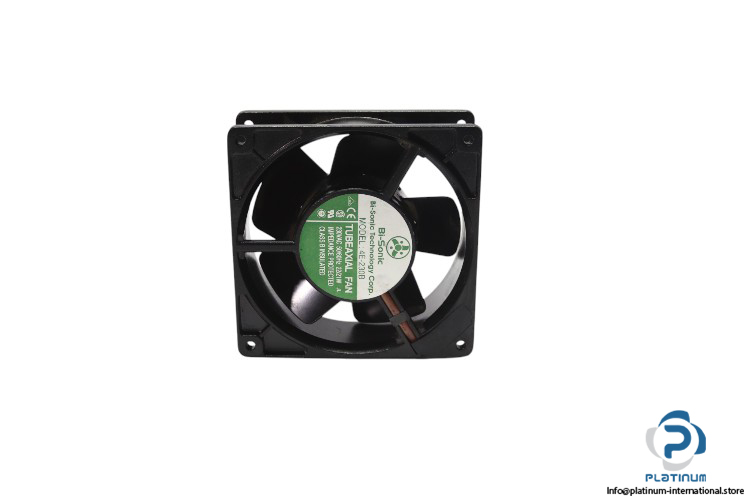

BI-Sonic 4E-230B Axial Fan
The BI-Sonic 4E-230B Axial Fan is a compact and efficient cooling solution designed for industrial and electronic ventilation systems. Built with a metal frame and blades, it delivers consistent airflow and durability, making it ideal for continuous operation under varied conditions.
Manufacturer: BI-Sonic
Type: Axial Fan
Model: 4E-230B
| Frame Shape | Square Frame |
| No. of Blades | 5 |
| Dimensions (mm) | 119 x 119 x 38 |
| Direction | Push |
| Voltage (V AC) | 230 |
| Power Rating | 0.022 kW / 22-21 W |
| Speed (rpm) | 2650 / 3000 |
| Flow Rate (m³/h) | 2.2 / 2.5 |
| Flow Rate (CFM) | 77.5 / 89 |
| Current (mA) | 140 / 130 |
| Frequency | 50 / 60 Hz |
| Inverter | Without Inverter |
| Number of Wires | 2 |
| Class | B |
| Blade / Housing Material | Metal |
