BI-Sonic 5E-230B Axial FAN
Neu
Auf Lager17 EinheitenVersandbereit
Axial Fan
BI-Sonic 5E-230B Axial Fan operates at 230 V AC with speeds of 2750 rpm and 3100 rpm, providing airflow of 339.6/407.4 m³/h and 173/197 CFM. Ideal for industrial and commercial cooling applications, featuring metal construction and ball bearing support.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

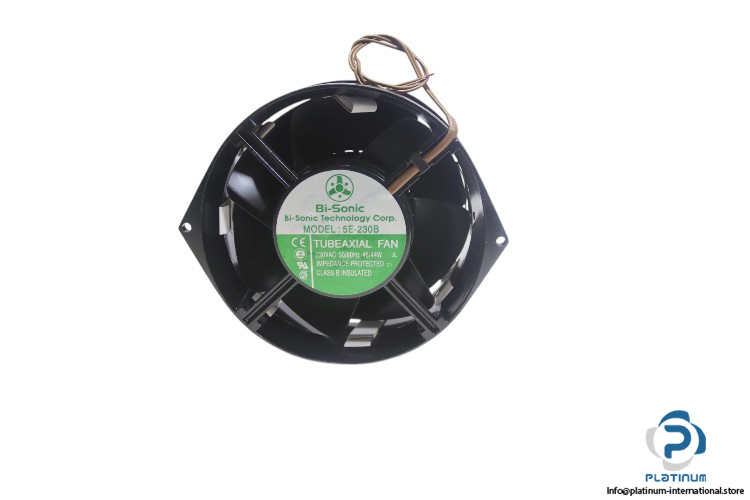

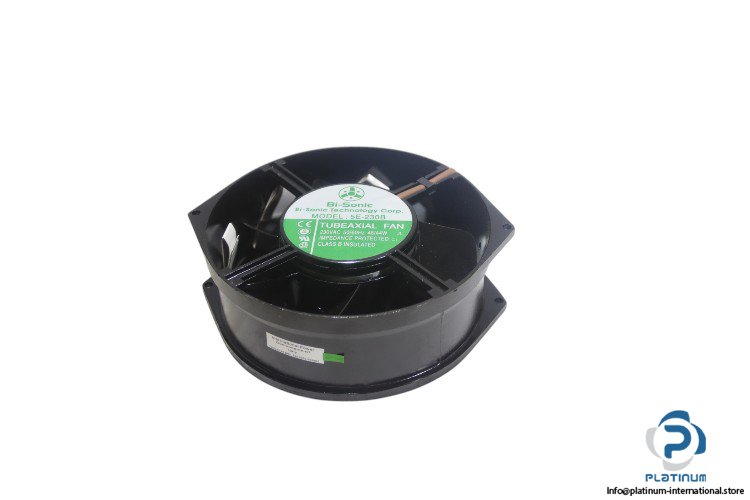

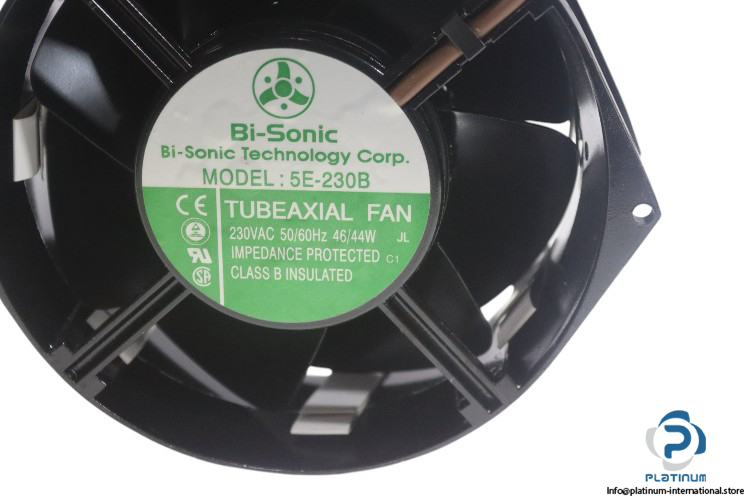

BI-Sonic 5E-230B Axial Fan
The BI-Sonic 5E-230B Axial Fan is designed to provide efficient air circulation and cooling in various industrial and commercial applications. With a durable metal construction, it delivers reliable performance at both 2750 rpm and 3100 rpm speeds, providing optimal airflow for demanding environments.
Manufacturer: BI-Sonic
Model: 5E-230B
Type: Axial Fan
| Insulation Class | B |
| Number of Blades | 7 |
| Dimension | 171x150x55 mm |
| Frame Shape | Circular Frame |
| Bearing Type | Ball Bearing |
| Airflow Direction | Push |
| Number of Wires | 2 |
| Blade Material / Fan Housing Material | Metal |
| Inverter | Without |
| Nominal Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Power | 46/44 W |
| Current | 0.3/0.280 A |
| Speed | 2750/3100 rpm |
| Flow Rate | 339.6/407.4 m³/h, 173/197 CFM |
