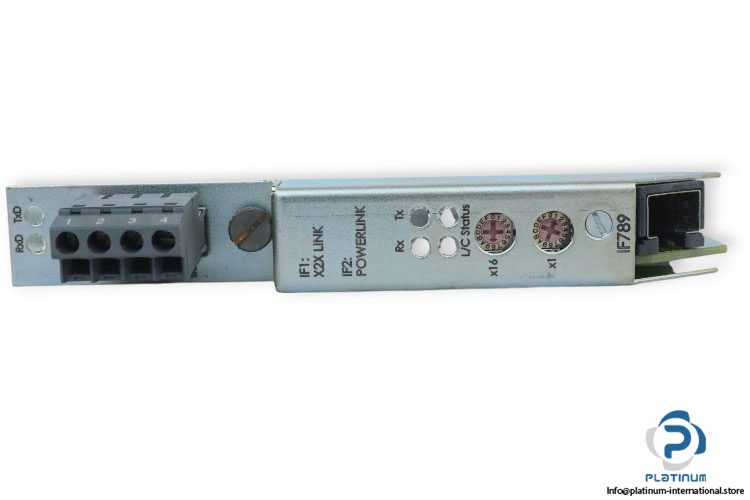

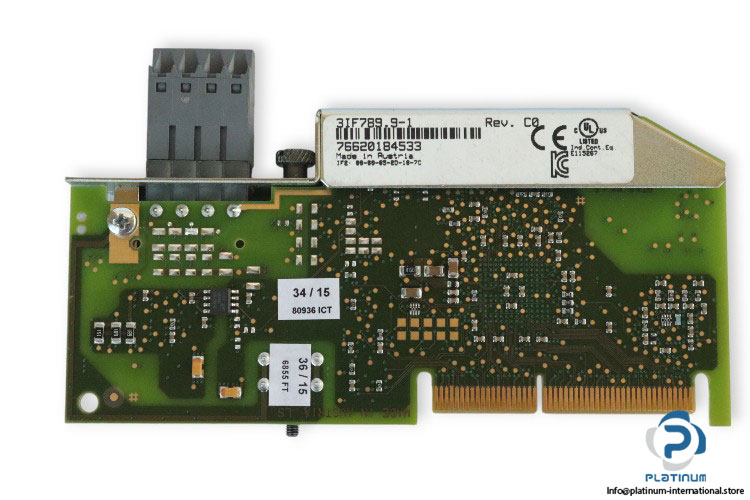

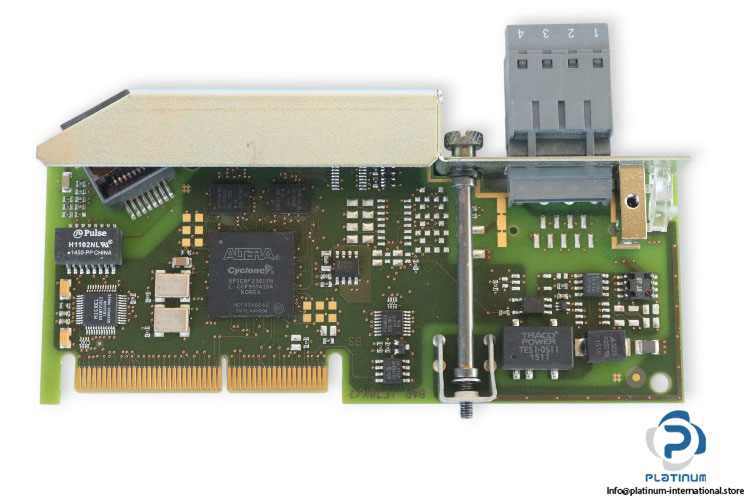

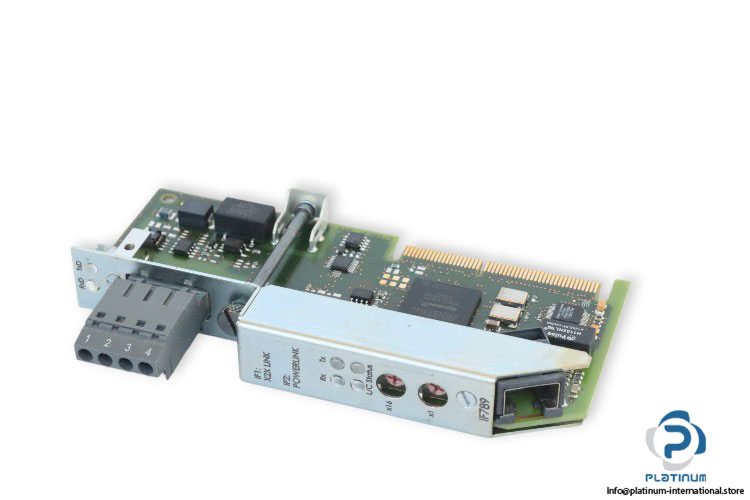

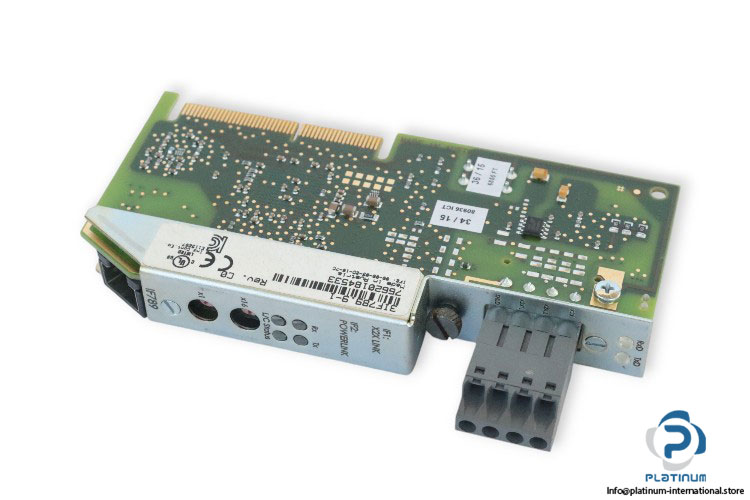

B&R 3IF789.9-1 INTERFACE MODULE

Manufacturer: B&R
Type: Interface Module
Model: 3IF78991
Part. No.: 76620184533

Short Name: IF789
Description: 3IF789.9-1 Is A POWERLINK Interface Module. Used as a Managing or Controlled Node. It is Connected Via an RJ45 Port.
Power Consumption: 2.8 W
Communication Module: 1x X2X Link Master, 1x POWERLINK (V1/V2) Managing or Controlled Node

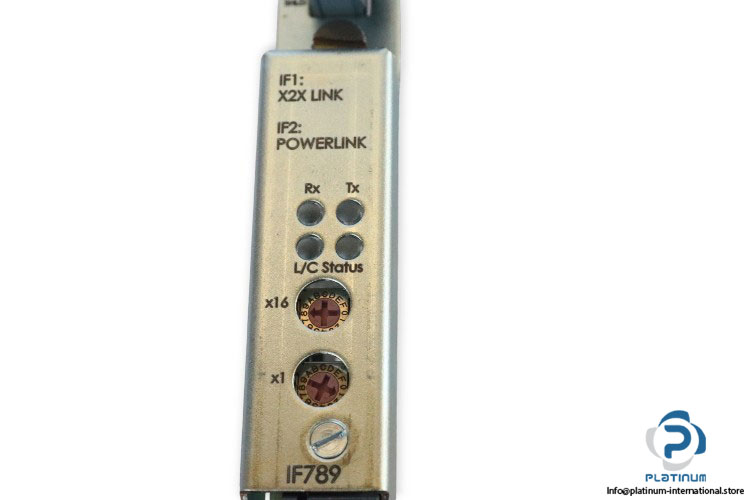

Status indicators: Transmitting/Receiving Data for IF1, Status of the POWERLINK Station, Network Activity, Link/Collision for IF2
Interface IF1:
Fieldbus: X2X Link Master
Design: Male Multipoint Connector, 4-Pin
Stations No. Max.: 253
Interface IF2:
Fieldbus: POWERLINK (V1/V2) Managing or Controlled Node
Design: 1x Shielded RJ45 Port
Transfer Rate: 100 Mbit/s
Input/Output Buffer: 20 KB
Protection Class: IP20
Temperature: 0 … 60 °C
