B&R 7CP570.60-1 CPU MODULE

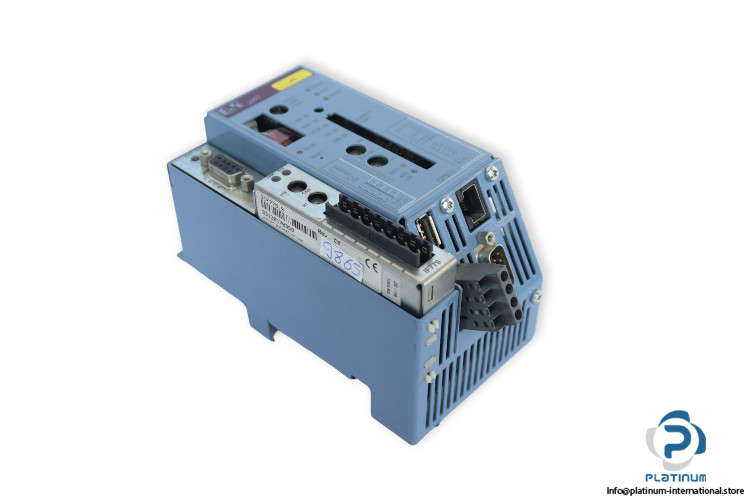

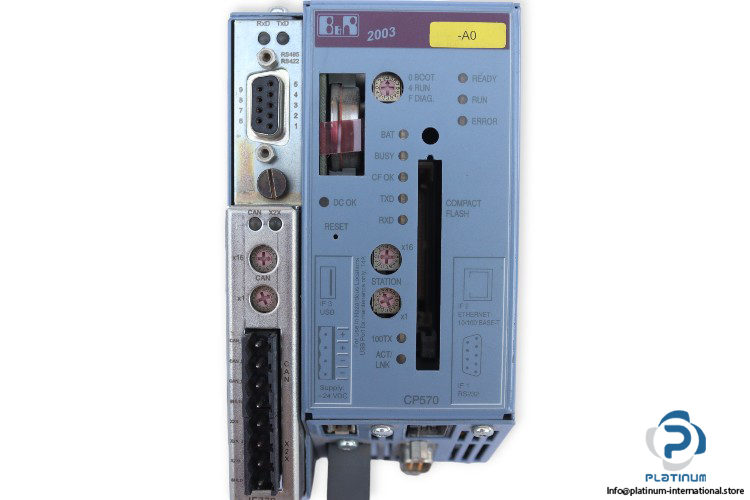

B&R Automation 7CP570.60-1 CPU Module

The B&R Automation 7CP570.60-1 CPU Module, with Part No.: 3IF779.9, is a high-performance control unit designed for advanced industrial automation applications. With robust features and reliable performance, it ensures seamless system integration and efficient operation.

• Manufacturer: B&R Automation
• Type: CPU Module

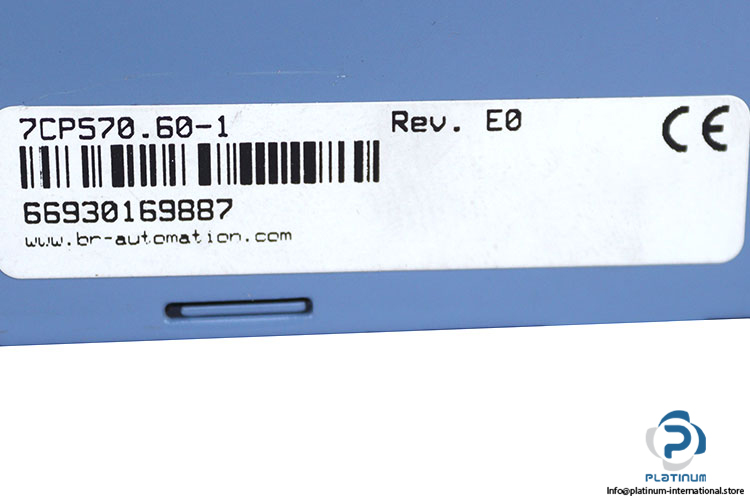

• Model: 7CP570.60-1

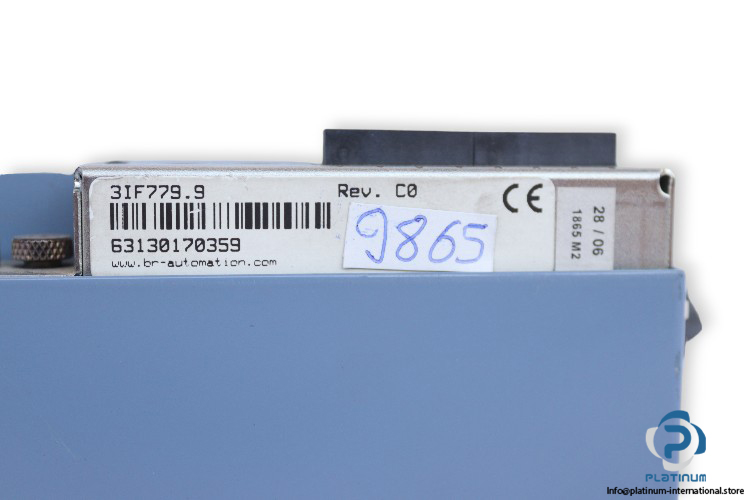

• Part No.: 3IF779.9
• Card No.1: 66930169887
• Card No.2: 66930169467
• Card No.3: 63130170359
• Power Supply: 24 V DC (20.4 / 30 V DC)
• Power Consumption: max. 15 W
• Input Power: 30 W
• No. of Slots: 1

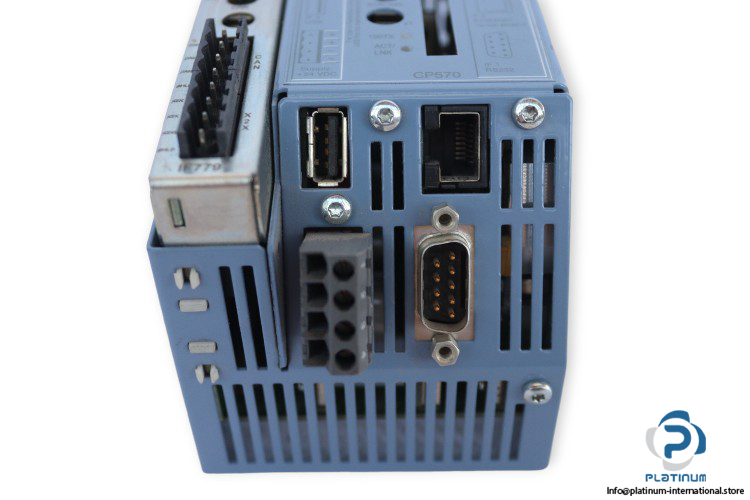

• Interface: 1 x RS232, 1 x Ethernet, 1 x USB
• I/O Bus Interface: 9-pin DSUB socket
• Memory Capacity: 64 MB DRAM, 512 KB SRAM
• Protection Type: IP20
• Operating Temperature: 0 / +60°C (max)

The B&R Automation 7CP570.60-1 CPU Module combines exceptional performance, multiple interface options, and reliable memory capacity, making it an essential component for modern industrial automation systems.
