Cabur CSF240C Power Supply
Neu
Auf Lager1 EinheitVersandbereit
Single-Phase Power Supply
A high-quality industrial 24 Vdc power supply designed for automation systems and control panels, offering stable output, wide input voltage support, and reliable protection features.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

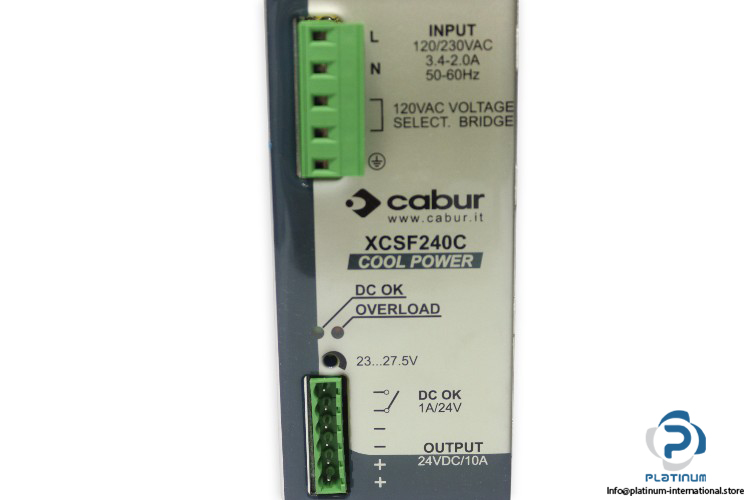

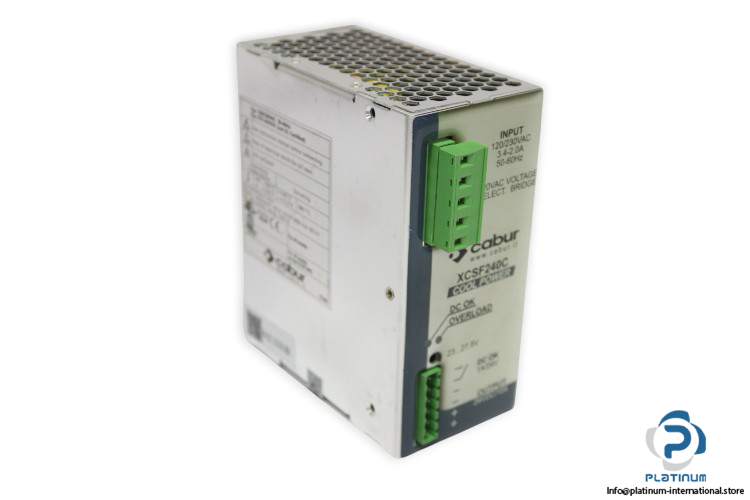

CABUR CSF240C Single-Phase Power Supply
A high-performance industrial power supply designed to deliver stable 24 Vdc output, excellent electrical protection, and reliable operation in automation, control panels, and industrial equipment. Built with durable aluminium housing and engineered for long-term stability, it ensures dependable performance even in harsh environments. Manufacturer: CABUR
Type: Single-phase Power Supply

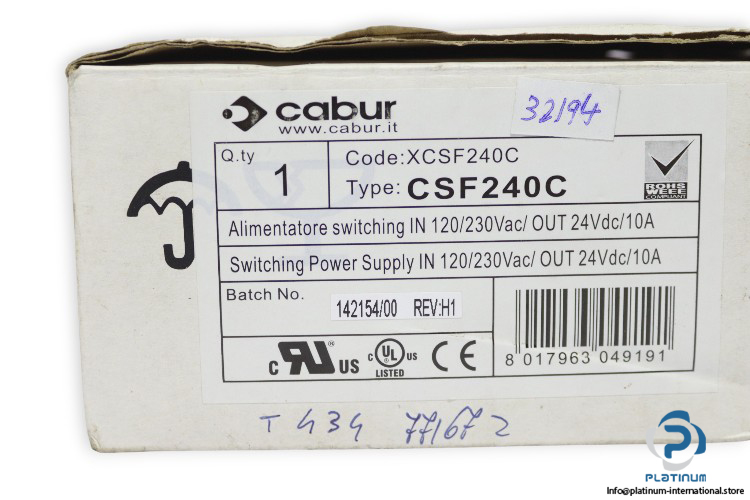

Code: XCSF240C
Model: CSF240C
ID No.: 142154/00
Rev: H1
Serial No.: 8017963049191
| Input Rated Voltage | 120“230 Vac |
| Switching Voltage | 120“230 Vac |
| Input Voltage AC | 90 / 132 Vac / 185 / 264 Vac |
| Input Voltage DC | 300 / 345 Vdc |
| Frequency | 47 / 63 Hz |
| Current Consumption | 3.5 A (120 Vac) / 1.8 A (230 Vac) |
| Inrush Peak Current | 35 A |
| Power Factor | > 0.6 |
| Internal Protection Fuse | T 6.3 A |
| External AC Line Protection | MT: C-10 A / Fuse: T 10 A |
| Output Voltage Range | 24 Vdc |
| Output Adjustable Range | 23 / 27.5 Vdc |
| Continuous Current | 10 A at 45°C |
| Overload Limiting | 15 A for >30 s |
| Short Circuit Peak Current | 25 A for 400 ms |

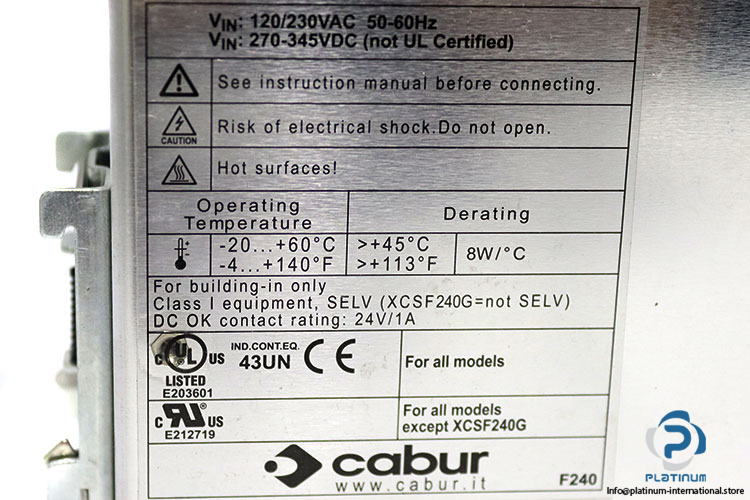

| Operating Temperature Range | “20 / +60°C (derating -4 W >45°C) |
| Input / Output Isolation | 3 KVac / 60 s (SELV output) |
| Input / Ground Isolation | 1.5 KVac / 60 s |
| Output / Ground Isolation | 0.5 KVac / 60 s |
| Safety Standard | EN 62368-1, UL508 |
| Protection Degree | IP20 |
| Connection Terminal | 2.5 mm² / 2.5 mm² |

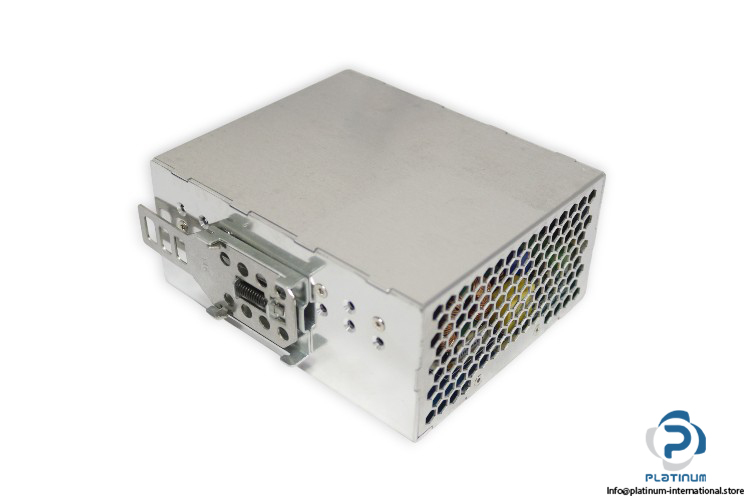

| Housing Material | Aluminium |
| Dimensions (LxHxD) | 63.5 x 140 x 135 mm |
