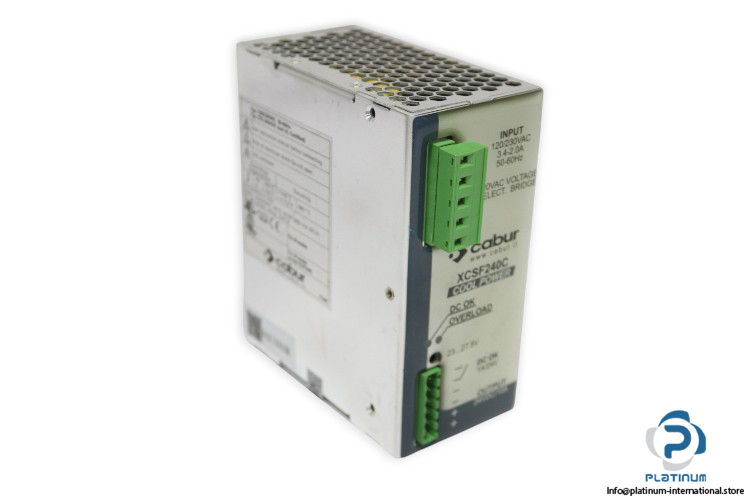

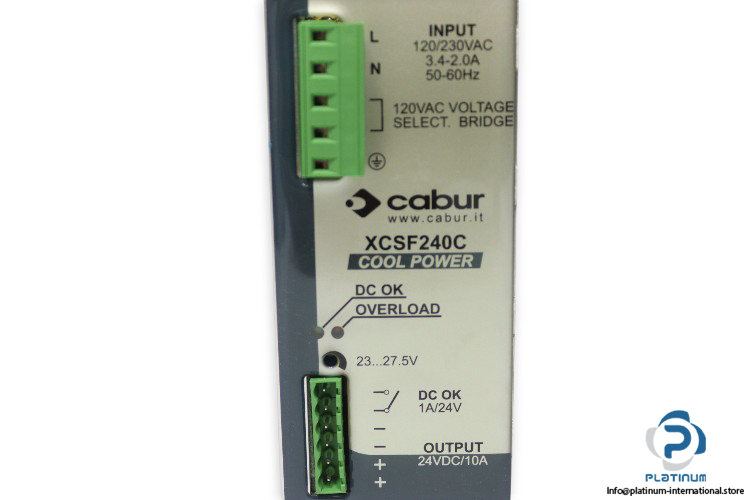

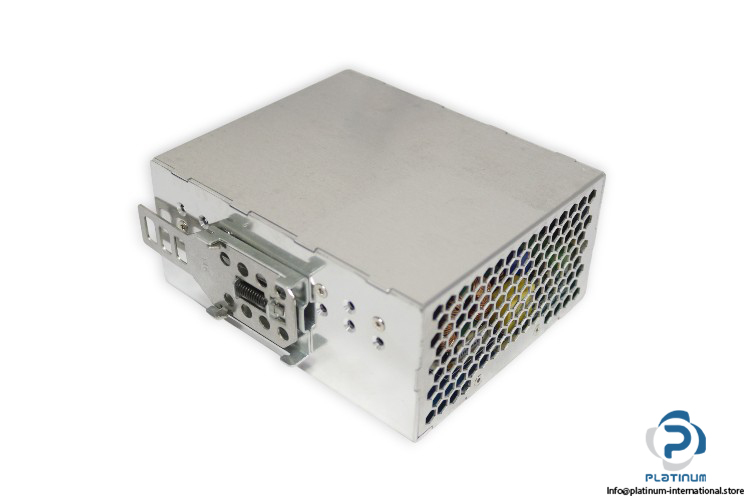

Cabur CSF240C Power Supply

En stock1 unitéPrêt à être expédié

Single-Phase Power Supply

A high-quality industrial 24 Vdc power supply designed for automation systems and control panels, offering stable output, wide input voltage support, and reliable protection features.

Fabricant
CABUR
SKU
1084342
Catégorie
Power Supplies
Condition
Nouveau
Partager
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

CABUR CSF240C Single-Phase Power Supply

A high-performance industrial power supply designed to deliver stable 24 Vdc output, excellent electrical protection, and reliable operation in automation, control panels, and industrial equipment. Built with durable aluminium housing and engineered for long-term stability, it ensures dependable performance even in harsh environments. Manufacturer: CABUR

Type: Single-phase Power Supply

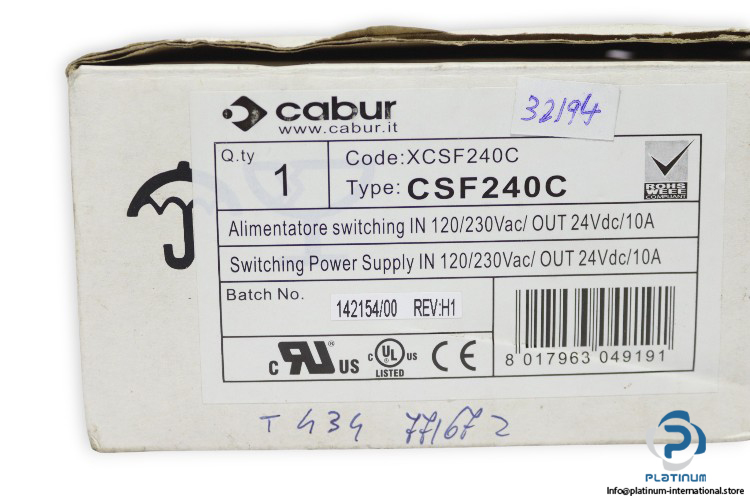

Code: XCSF240C

Model: CSF240C

ID No.: 142154/00

Rev: H1

Serial No.: 8017963049191

Input Rated Voltage120“230 Vac
Switching Voltage120“230 Vac
Input Voltage AC90 / 132 Vac / 185 / 264 Vac
Input Voltage DC300 / 345 Vdc
Frequency47 / 63 Hz
Current Consumption3.5 A (120 Vac) / 1.8 A (230 Vac)
Inrush Peak Current35 A
Power Factor> 0.6
Internal Protection FuseT 6.3 A
External AC Line ProtectionMT: C-10 A / Fuse: T 10 A
Output Voltage Range24 Vdc
Output Adjustable Range23 / 27.5 Vdc
Continuous Current10 A at 45°C
Overload Limiting15 A for >30 s
Short Circuit Peak Current25 A for 400 ms

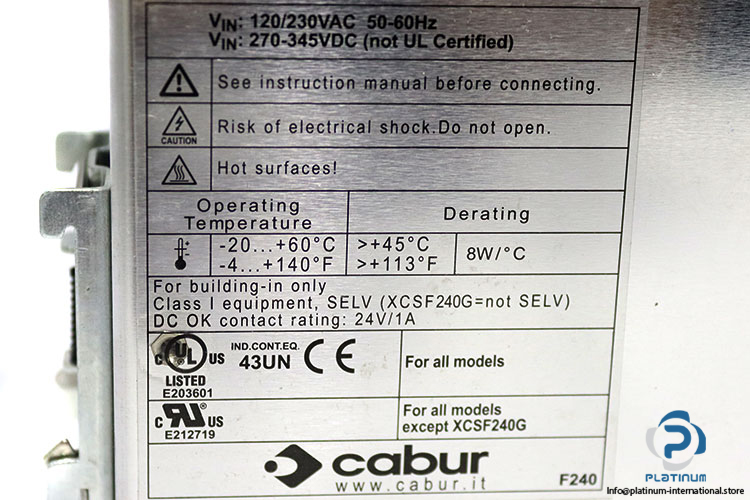

Operating Temperature Range“20 / +60°C (derating -4 W >45°C)
Input / Output Isolation3 KVac / 60 s (SELV output)
Input / Ground Isolation1.5 KVac / 60 s
Output / Ground Isolation0.5 KVac / 60 s
Safety StandardEN 62368-1, UL508
Protection DegreeIP20
Connection Terminal2.5 mm² / 2.5 mm²
Housing MaterialAluminium
Dimensions (LxHxD)63.5 x 140 x 135 mm
