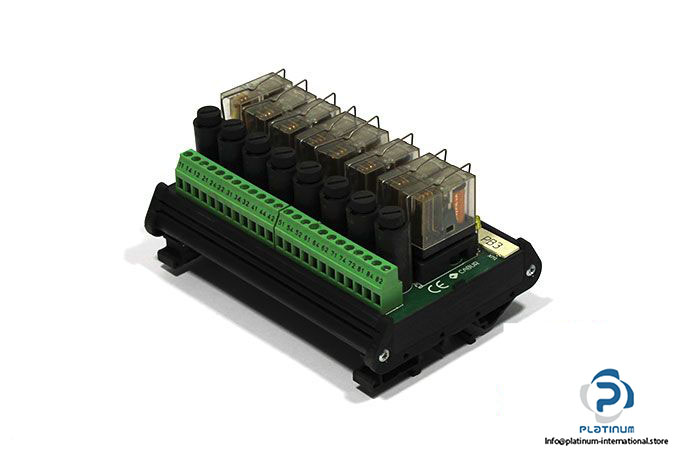

Cabur R81U24F Relay Module
Gebraucht
Manufacturer: Cabur
Type: Relay Module
Model: R81U24F

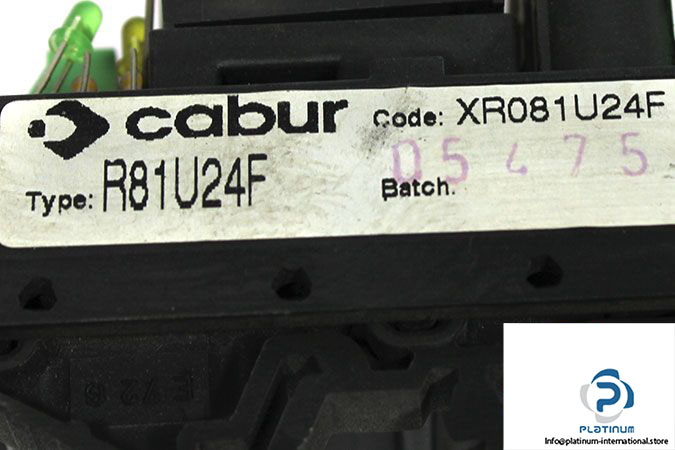

Order Code: XR081U24F

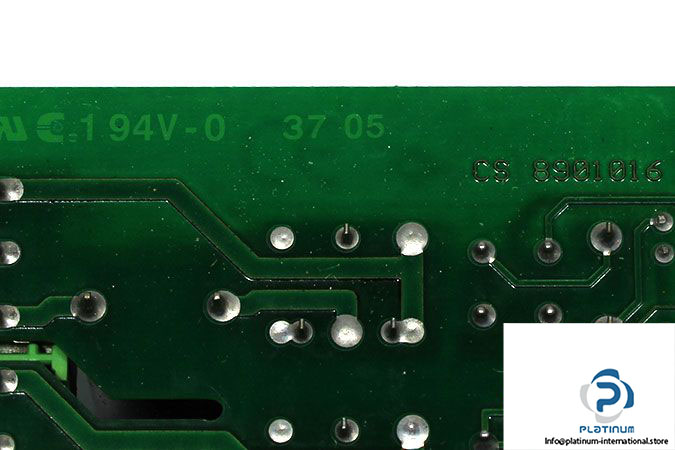

MRN: CS 8901016
Input Rated Voltage: 24 Vac/dc ±10%
Current Consumption: 22 mA ±10%
Nominal Current: 16 A (250 Vac)
Max Fuse Current: 6.3 A (250 Vac) (2)
Turn ON OFF Time: 10 ms / 5 ms
Protection Circuit: Free-wheel diode, Reverse polarity
Connection Type: 2.5 mm² screw type and 16 poles connector

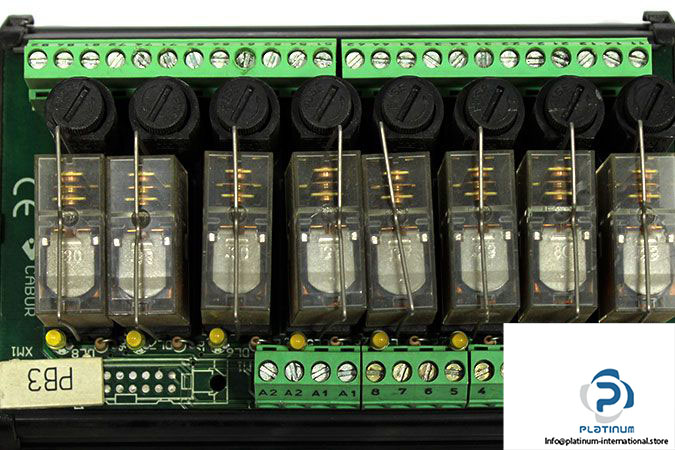

Input Channels: 8 pluggable
Contact Type: SPDT, 1 form C, AgSnO2
Operating Temperature Range: -20…70 °C
Material: UL94V-0 Plastic
Dimensions: 137 x 93 x 75 mm
Weight: 0.40 kg
