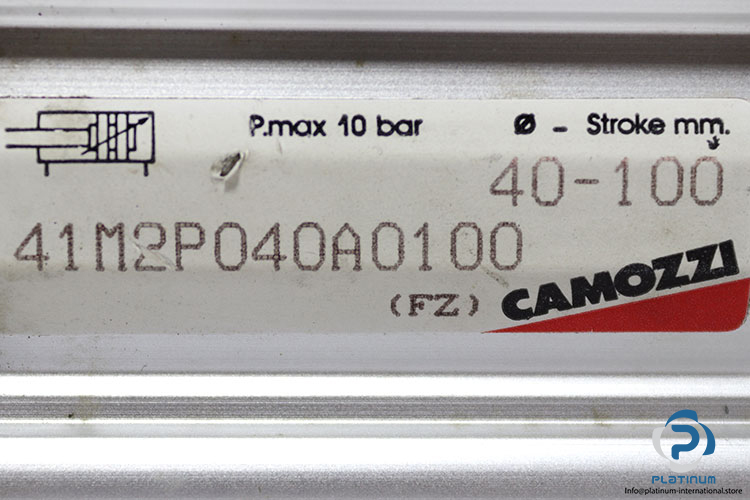

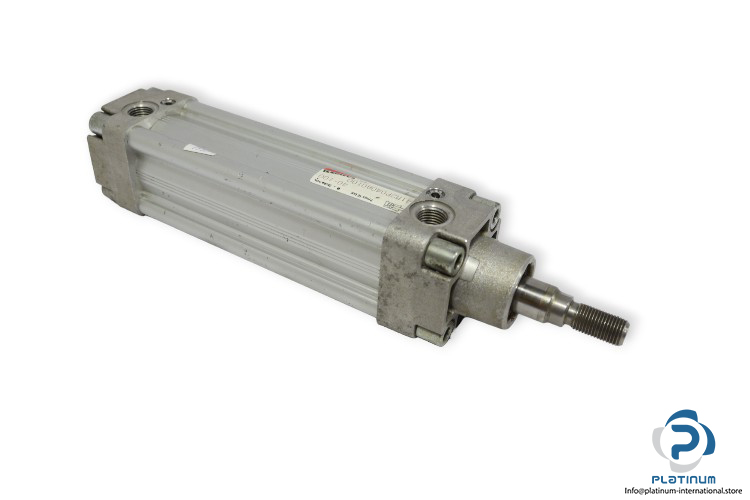

Camozzi 41M2P040A0100 ISO Cylinder
Manufacturer: Camozzi
Type: ISO Cylinder
Model: 41M2P040A0100
Media: Compressed Air
Stroke (mm): 100
Bore diameter (mm): 40
BorexStroke (mm): 40×100
Rod diameter (mm): 16
Fram Dimensions (mm): 265×53
Maximum pressure (bar): 10
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
