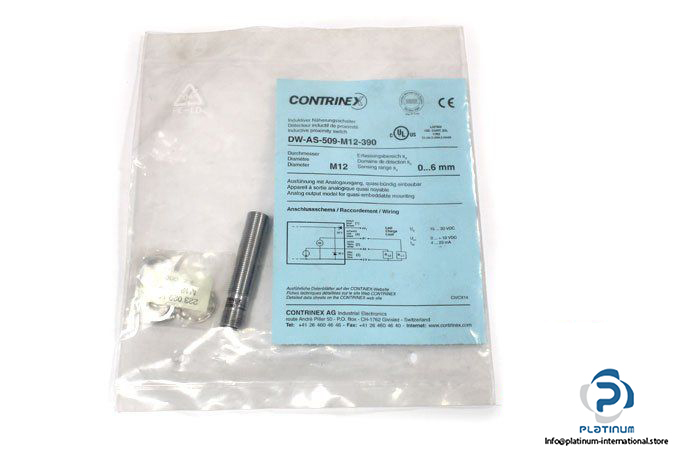

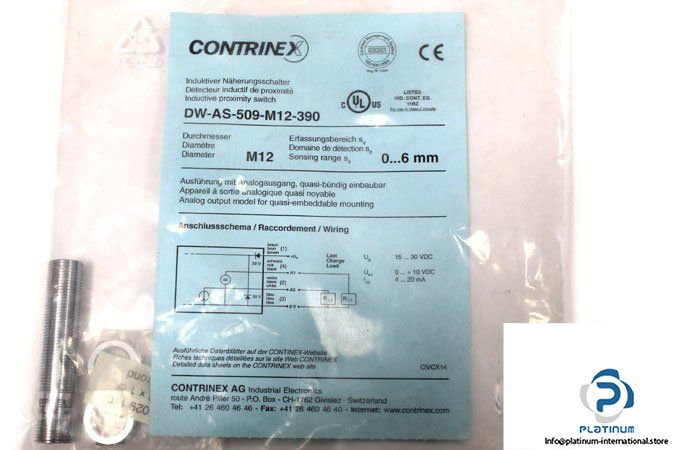

Contrinex DW-AS-509-M12-390 Inductive Proximity Sensor

Manufacturer: CONTRINEX

Type: INDUCTIVE PROXIMITY SENSOR

Model No.: DW-AS-509-M12-390

Rated Operating Distance: 0 … 6 mm

Operating Voltage: 15 … 30 V DC

Polarity: Analog 0 … 10 VDC / 4 … 20 mA

Output: Voltage/Current

Connector Type: M12 Connector, 4-Pin

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70 °C

Diameter, Housing Length: 12, 60 mm

Housing Material: Chrome-Plated Brass

Sensing Face Material: PBTP

Mounting: Quasi-Embeddable

Supplied Accessories: 2 Lock Nuts

Weight: 0.04 kg
