Crouzet F83161.1 Miniature Microswitch

Manufacturer: CROUZET

Type: MINIATURE MICROSWITCH

Series: 83161

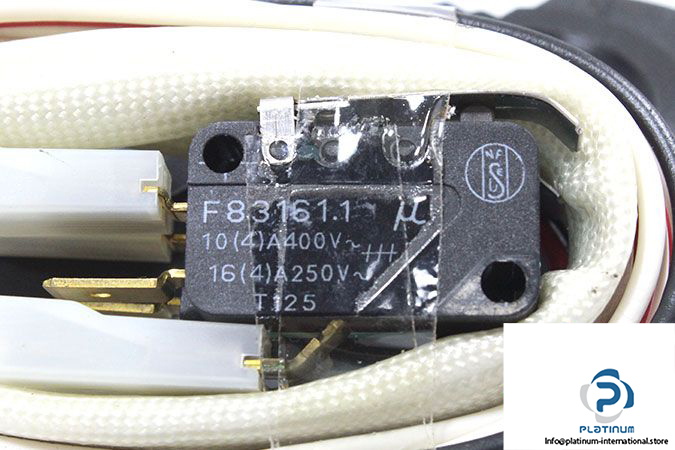

Model: F83161.1 / 83 161 1

Material: Polyamida, AgNi

Levers Material: Stainless steel

No. of Terminals: 3

Min. Rating Current: 0.1 A … 20 A

Nom. Rating Current: 16 A

Voltage: 250 V AC

Max. Operating Force: 3 N

Min. Release Force: 1 N

Max. Total Travel Force: 4.5 mm

Tripping Point: 14.7 mm ± 0.4

Max. Differential Travel: 0.35 mm

Contact Gap: 0.4 mm

Ambient Operating Temperature: -20 … 125°C

Weight: 0.08 kg
