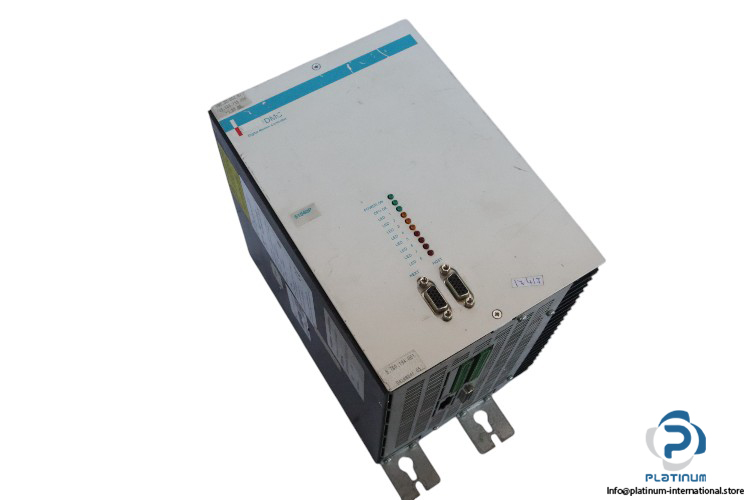

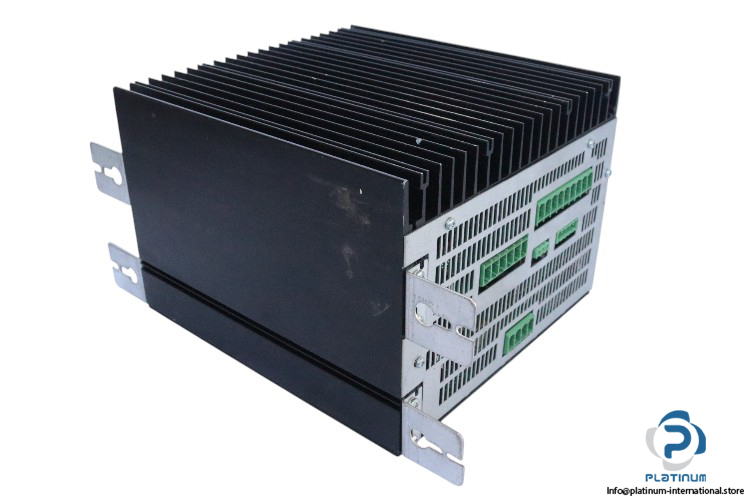

Danaher Motion 9032 0120 50 Digital Motion Controller

Danaher Motion/F.E.R.A.G Digital Motion Controller DMC 51540P-AC EXT 24

Danaher Motion/F.E.R.A.G Digital Motion Controller DMC 51540P-AC EXT 24 is designed for precise control of industrial motors, offering reliable performance with high power efficiency. This digital motion controller is ideal for applications that require high output power and robust operation in varying conditions.

• Manufacturer: Danaher Motion/F.E.R.A.G
• Type: Digital Motion Controller (DMC)

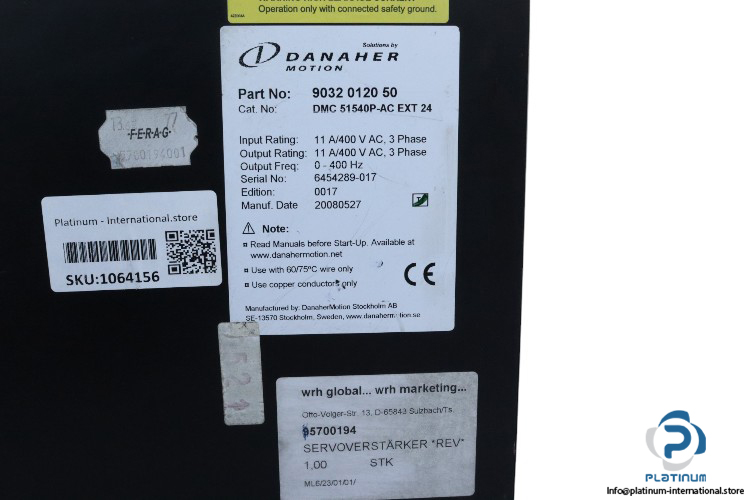

• Model: DMC 51540P-AC EXT 24
• Part No. 1: 9032012050

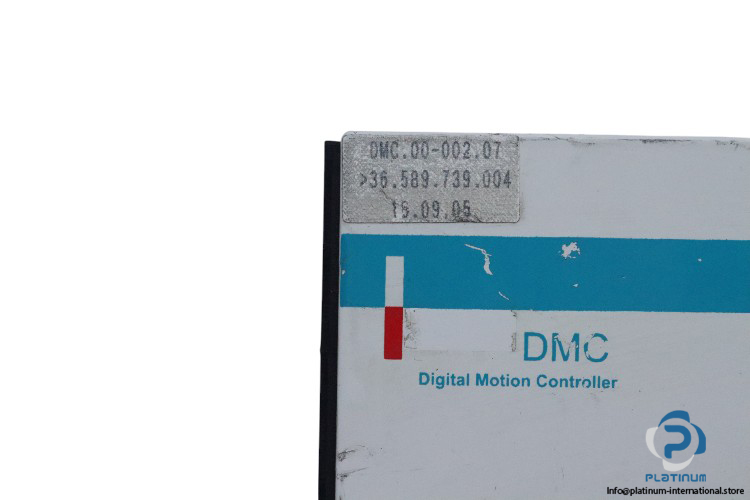

• Part No. 2: DMC.00-002.07
• Part No. 3: 36.589.739.004

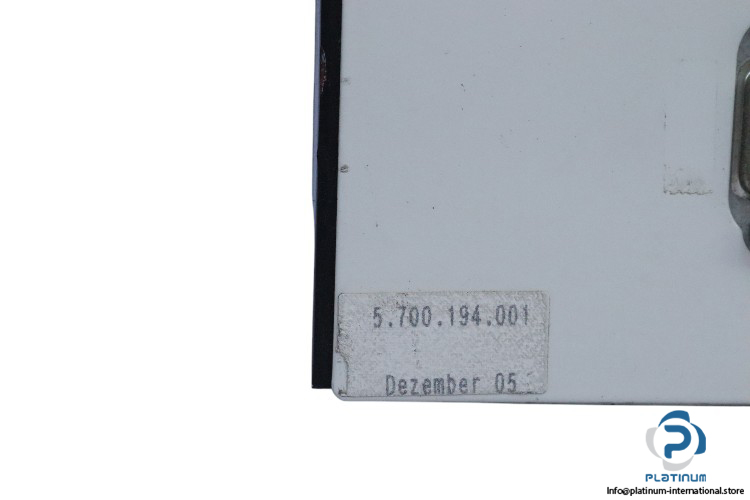

• Part No. 4: 5.700.194.001

Technical Data:

• Input Voltage: 3 phase/400 V AC
• Output Voltage: 3 phase/400 V AC
• DC Bus Voltage: 570 V DC
• Input/Output Current: 11 A
• Shunt Regulation On: 675 to 700 V DC
• Shut Down DC Bus Voltage: 700 to 725 V DC
• Continuous Current (A DC): 15 A at 40°C
• Continuous Current (Arms): 10.5 A at 40°C
• Peak Current: 40 A
• Power Loss: 155 W
• Continuous Output Power: 7.4 kW at 40°C
• Min Motor Inductance: 6 mH
• Speed Range: 1 to 9000
• Output Frequency: 0 to 400 Hz
• Ambient Temperature: 0 to 60°C
• Protection Degree: IP 20
• Dimensions: 234 x 160 x 227 mm
