Danaher Motion 9032 0120 49 Digital Motion Controller

Danaher Motion Digital Motion Controller DMC 50720P-AC EXT 24

Danaher Motion Digital Motion Controller DMC 50720P-AC EXT 24 is a high-performance motion control solution designed for precise and efficient control of 3-phase motors. Below are the key technical specifications:

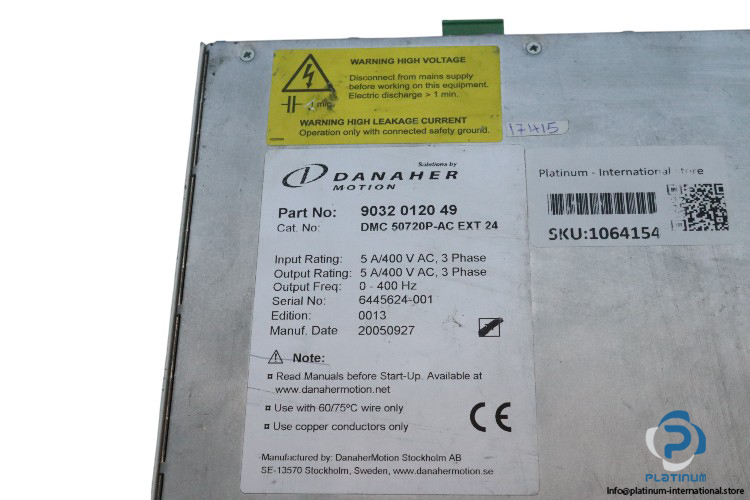

• Manufacturer: Danaher Motion
• Type: Digital Motion Controller/DMC
• Model: DMC 50720P-AC EXT 24
• Part No.1: 9032012049

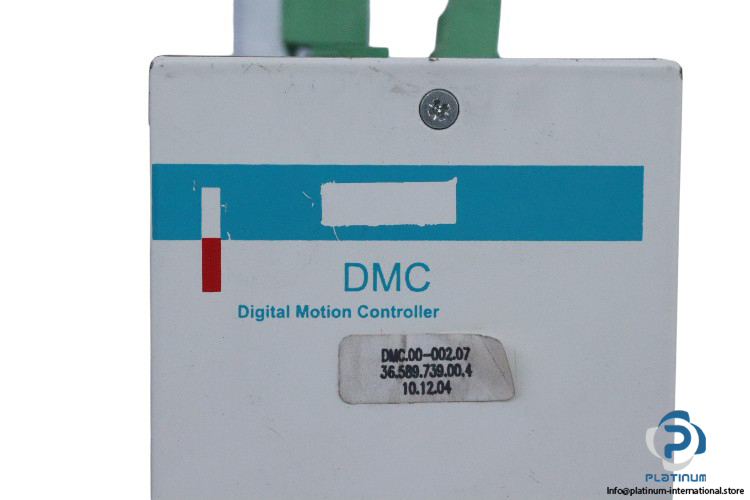

• Part No.2: DMC.00-002.07
• Part No.3: 36.589.739.00.4

Technical Data:

• Input Voltage: 3 phase/ 400 V AC
• Output Voltage: 3 phase/ 400 V AC
• DC Bus Voltage: 570 V DC
• Input, Output Current: 5 A
• Shunt Regulation On: 675 to 700 V DC
• Shutdown DC Bus Voltage: 700 to 725 V DC
• Continuous Current (A DC): 7 A at 40°C
• Continuous Current (Arms): 4.5 A at 40°C
• Peak Current: 20 A
• Power Loss: 90 W
• Continuous Output Power: 3.4 kW at 40°C
• Min Motor Inductance: 8 mH
• Speed Range: 1 to 9000 RPM
• Output Frequency: 0 to 400 Hz
• Ambient Temperature: 0 to 60°C
• Protection Degree: IP 20
• Dimensions: 234 x 76 x 227 mm
