Danfoss MBS 3000 Pressure Transmitter 1 BAR
Drucktransmitter Der DANFOSS MBS3000 ist ein robuster Drucktransmitter mit einem Messbereich von 0 bis 1 bar, einem Ausgang von 4 bis 20 mA, einer Versorgungsspannung von 9 bis 32 V DC und einem Gehäuse aus Edelstahl AISI 316L für anspruchsvolle hydraulische und industrielle Umgebungen.

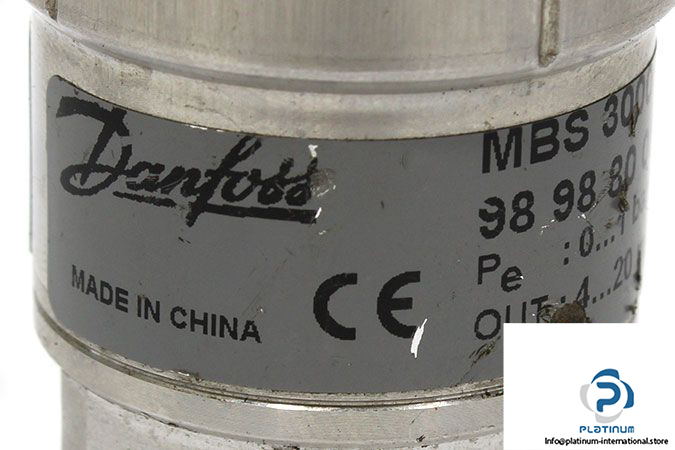

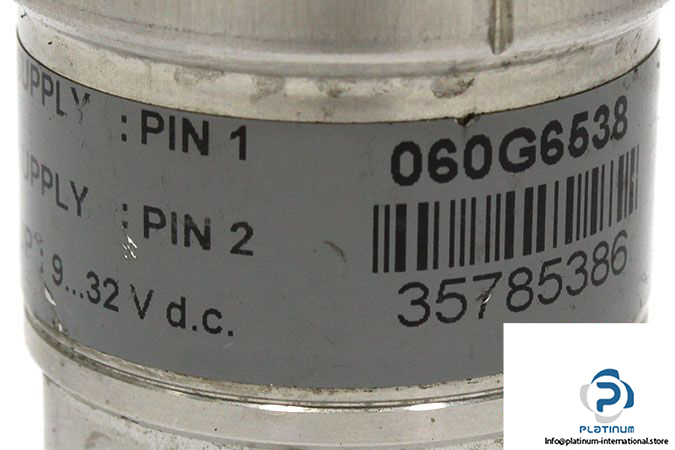

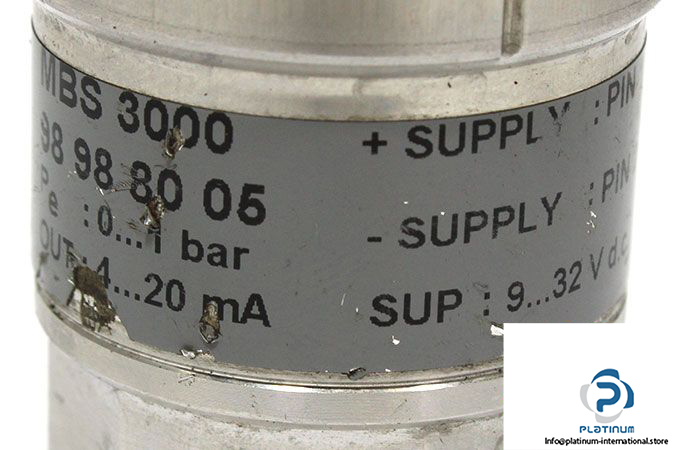

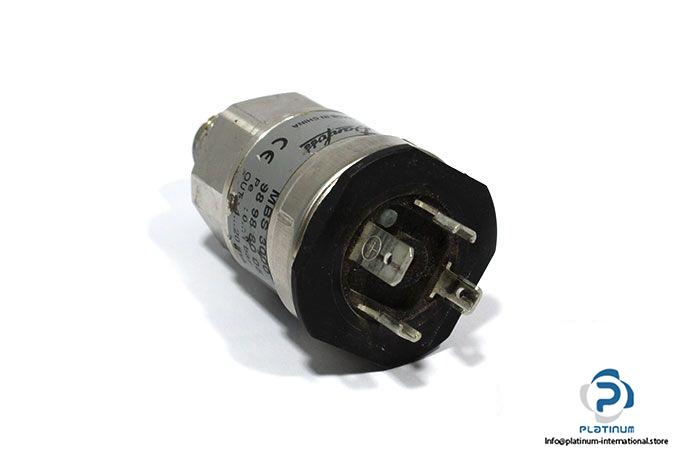

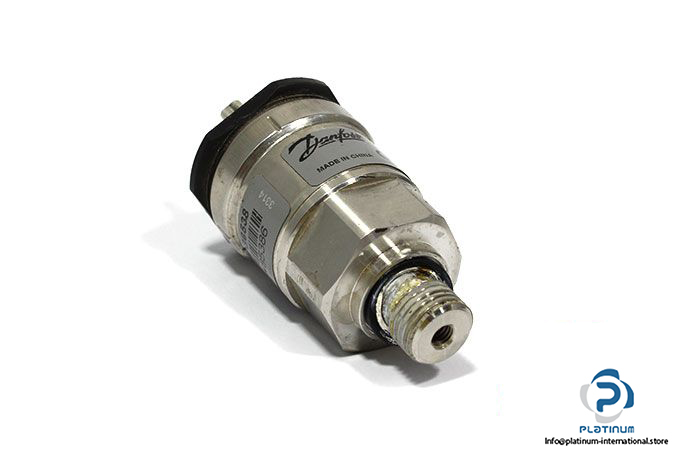

DANFOSS MBS3000 Pressure Transmitter
The DANFOSS MBS3000 Pressure Transmitter is engineered for precise pressure measurement in industrial and hydraulic applications. It offers excellent resistance to cavitation, liquid hammer, and pressure peaks, ensuring long-term stability and reliability even in harsh operating conditions.
Manufacturer: DANFOSS
Type: Pressure Transmitter
Model: MBS3000
Part Number: 98 98 80 06
| Pressure Measuring Range | 0 to 1 bar |
| Connection | G 1/2, threaded |
| Electrical Connection | Plug connection |
| Supply Voltage | 9 to 32 V DC |
| Current Output | 4 to 20 mA |
| Sensor Temperature Range | minus 40 to 85 degree Celsius |
| Design | Suitable for severe industrial and hydraulic environments |
| Resistance | Cavitation, liquid hammer, and pressure peaks (MBS 3050) |
| Enclosure and Wetted Parts | Acid-resistant stainless steel (AISI 316L) |
