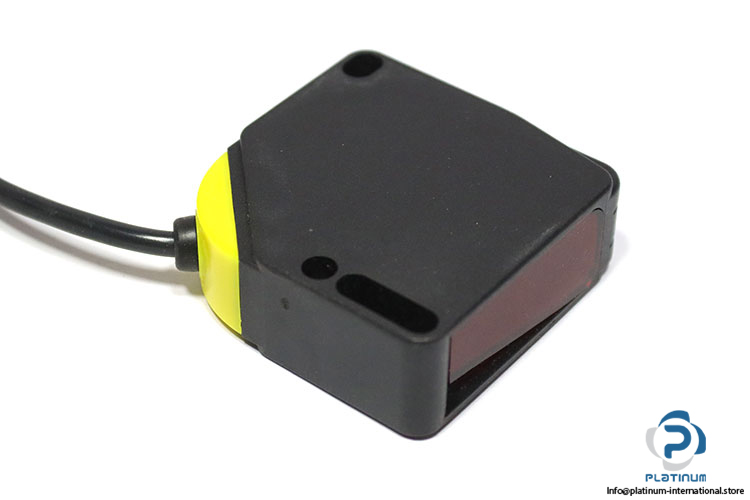

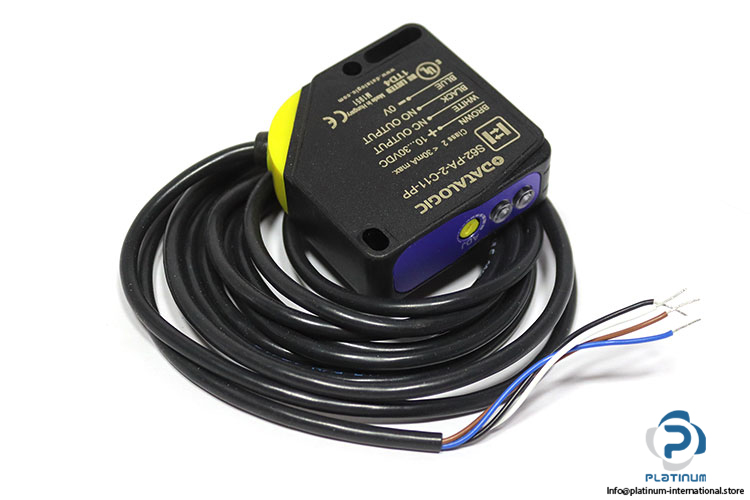

DATALOGIC S62-PA-2-C11-PP Long-Range Proximity Sensor
The DATALOGIC S62-PA-2-C11-PP is a long-range proximity sensor designed for advanced detection applications in industrial automation. It provides flexible sensing modes, reliable LED emission, and robust performance for material handling, packaging, and conveyor systems.
Manufacturer: DATALOGIC
Type: Long-range Proximity Sensor

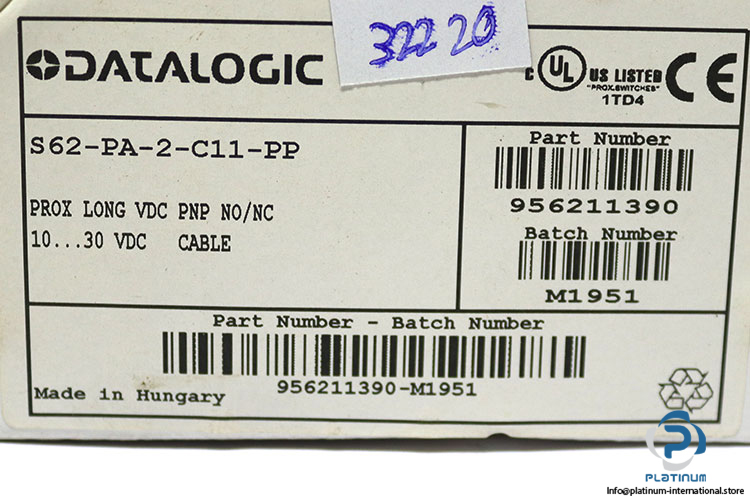

Model: S62-PA-2-C11-PP
Part Number: 956211390
Series: S62
Code: M1951
| Applications | Processing and packaging machinery, conveyor lines, material handling |
| Output | PNP NO and NC |
| Emission | LED red 640 nanometers |
| Supply Voltage | 10 to 30 VDC |
| Class 2 Power | Less than 30 mA maximum |
| White Wire | NO output |
| Black Wire | NC output |
| Brown Wire | plus 10 to 30 VDC |
| Through Beam Range | 0 to 25 meters |
| Retroreflective Range | 0.1 to 13 meters |
| Polarized Retroreflective | 0.1 to 8 meters, 0.3 to 20 meters class 2 laser |
| Diffuse Proximity | 0 to 900 millimeters short, 0 to 2000 millimeters long, 0 to 900 millimeters class 2 laser |
| Background Suppression | 30 to 300 millimeters short, 60 to 600 millimeters medium, 60 to 1200 millimeters long |
| Dimensions | 18 x 50 x 50 millimeters |
| Housing Material | ABS |
| Lens Material | PMMA window, polycarbonate lens |
| Operating Temperature | minus 10 to 55 degree Celsius |
