Datasensor S20-5-G Photoelectric Sensor Emitter
Neu
Auf Lager2 EinheitenVersandbereit
100,00$
Fotoelektrischer Sensor Datasensor Datalogic S20-5-G Sender-Sensor mit Infrarot-LED, großer Erfassungsreichweite bis zu 50 m, schneller Ansprechzeit und IP66-Schutz für industrielle Automatisierung.
550m880AutomationConnectorDatalogicDatasensorDetectionEmitterGIndustrialinfraredIP66LEDlongM12NmOpticalPhotoelectricRangeS20SESensorSeries
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

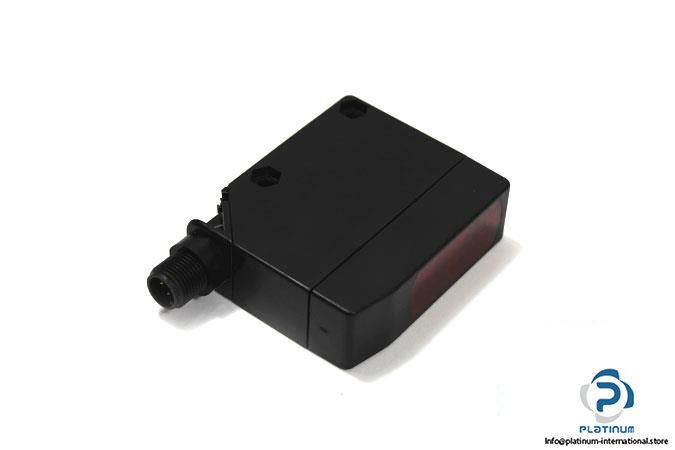

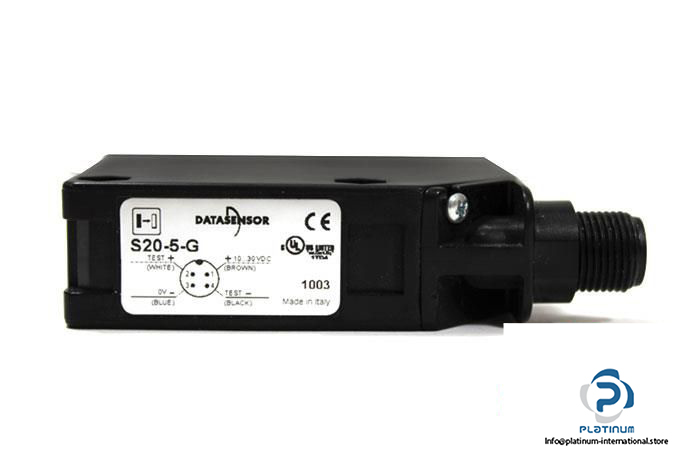

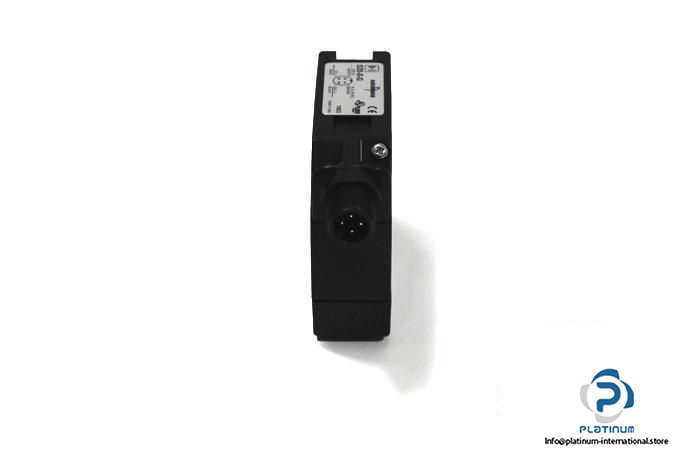

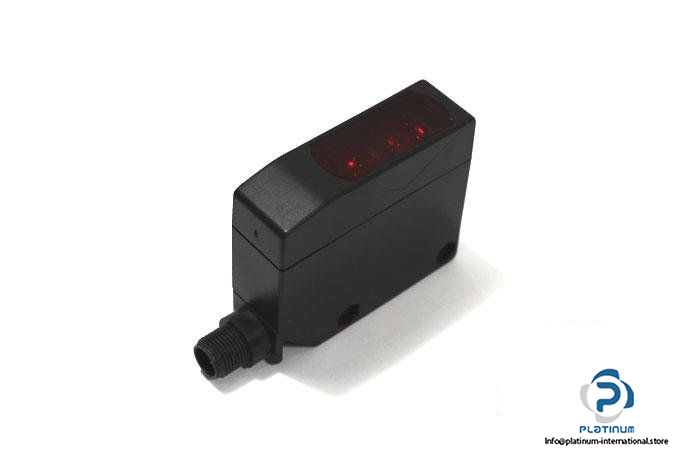

Datasensor Datalogic S20-5-G Photoelectric Sensor Emitter
The Datasensor Datalogic S20-5-G photoelectric sensor emitter is a high-performance sensing solution designed for reliable object detection in industrial automation environments. As part of the S20 Series, it delivers long sensing range, fast response time, and stable infrared light emission for accurate and consistent operation.
Manufacturer: DATASENSOR DATALOGIC
Type: PHOTOELCTRIC SENSOR-EMITTER
Model: S20-5-G
Code No.: 951351140
| Series | S20 Series |

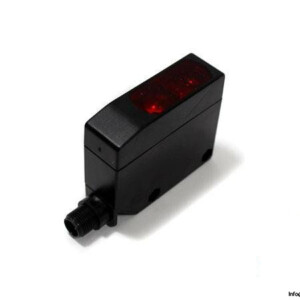

| Configured With | Receiver S20-5-F-P |
| Optic Function | Emitter |
| Operating Distance | 0.1 / 50 m |
| Response Time | 1 ms |
| Operating Voltage | 10 / 30 V DC |
| Current Consumption | 40 mA max. |
| Output Current | 200 mA max. |
| Light Emission | Infrared LED 880 nm |
| Indicators | Yellow OUTPUT LED, Green STABILITY LED |
| Switching Frequency Max. | 500 Hz |
| Housing | ABS |
| Connection | M12 Connector, 4-Pin |
| Mechanical Protection | IP66 |
| Operating Temperature | -25 / +60°C |
| Dimensions | 55 x 21 x 66 mm |
