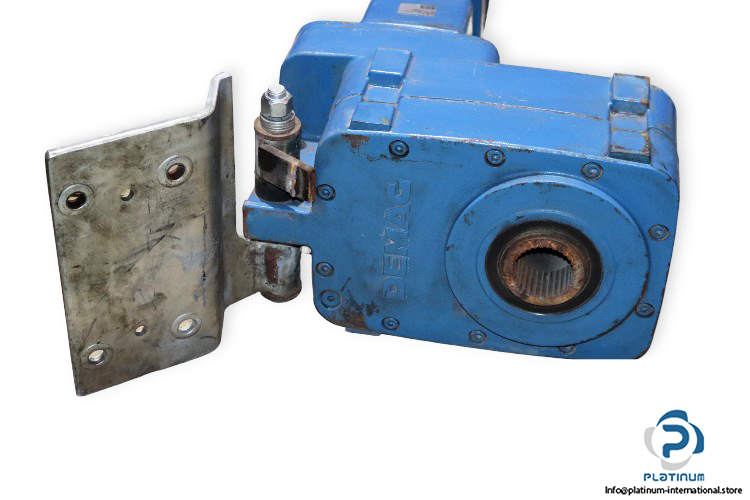

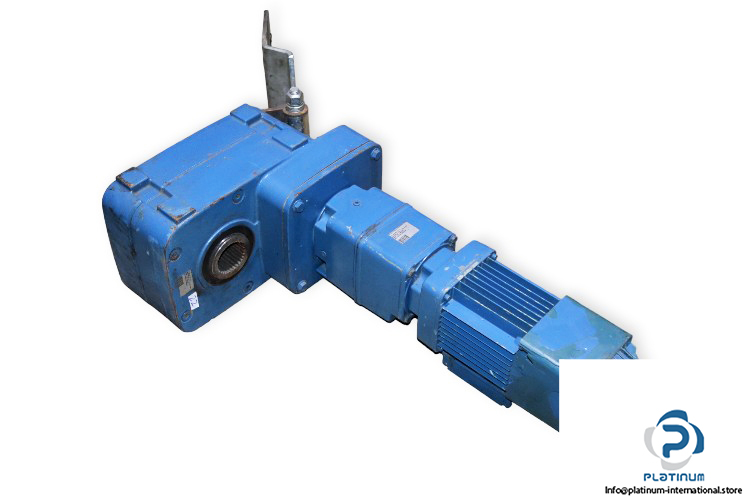

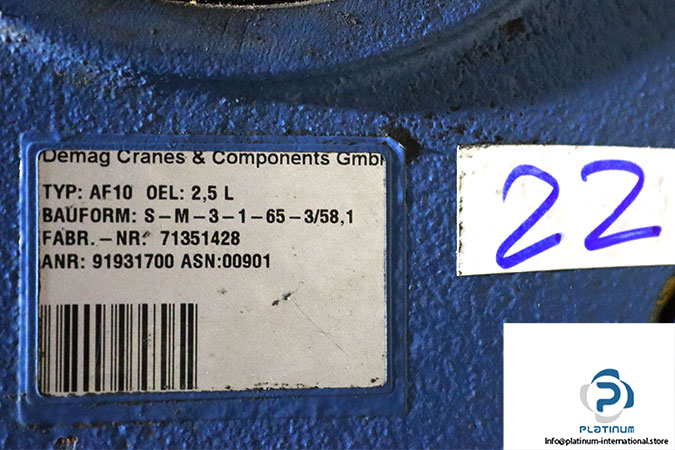

Demag AF10 Gear Motor

Manufacturer: Demag
Type: Gear Motors
Model: AF 10
Motor Nr.: 71351428

Ratio [i]: 58.1
Oil [L]: 2.5

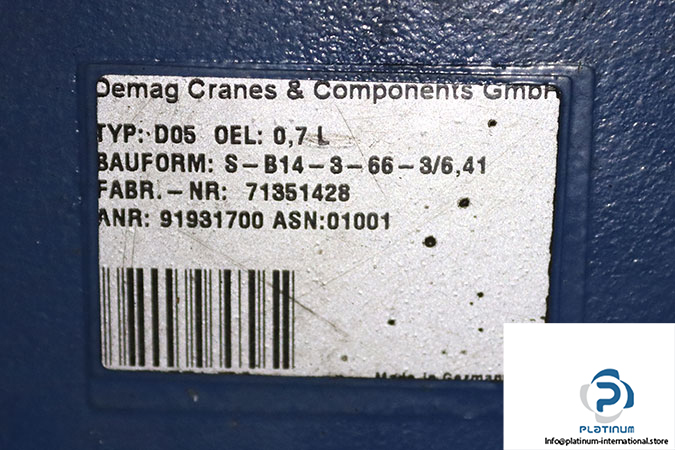

Attachments: DEMAG D05 GEAR MOTOR
Manufacturer: Demag
Type: Gear Motors
Model: D 05
Ratio [i]: 6.41
Oil [L]: 0.7

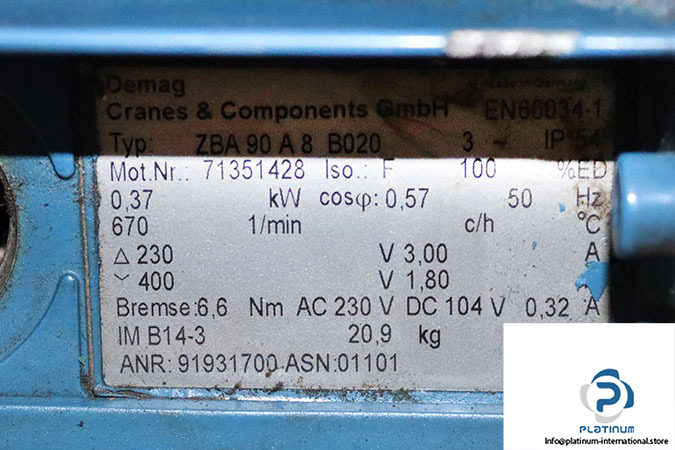

DEMAG ZBA 90 A 8 B020 AC MOTOR
Manufacturer: Demag
Type: AC Motors
Model: ZBA90A8B020
Motor Speed [r/min]: 670
Motor Power [kW]: 0.37
Rated Voltage [V]: 230/400
Nominal Current [A]: 3.0/1.8
Motor Frequency [Hz]: 50
Cos Phi: 0.57
Thermal Class: F
Protection Class [IP]: 54
Brake Voltage [VDC]: 104
Brake Voltage [VAC]: 230
Brake Current [A]: 0.32
Brake Torque [Nm]: 6.6
