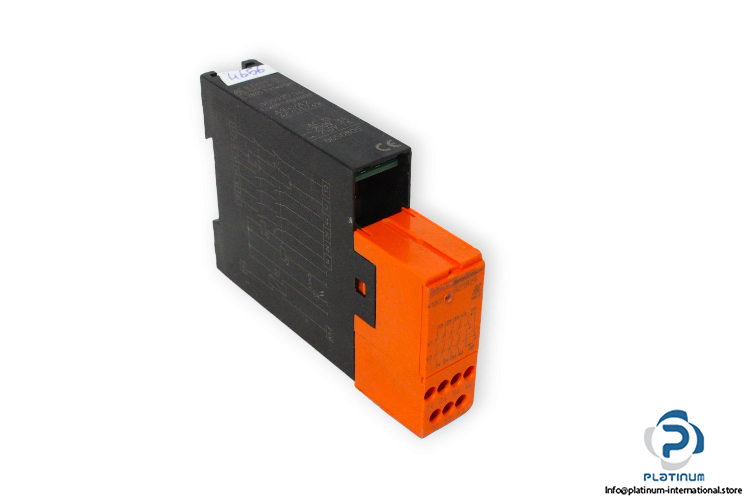

Dold BG5929.54 Extension Module
Manufacture: Dold
Type: Extension Module
Model: BG5929.54
Art. No.: 0050805
Nominal voltage UN: 24 V AC/DC
Nominal frequency of UN: 50/60 Hz
Nominal consumption: 1,5 W/ 2.1 VA
Contact rating: 4 NO
Switching capacity
AC-15: 250 V AC,3/2 A
Operation temperature: -25 … 55°C
Degree of protection: Housing: IP 40, Terminals: IP 20
Housing: Thermoplastic with V0 behavior
Mounting: DIN rail
Dimensions: 22.5 x 84 x 121 mm
