Dropsa SMX-16LR 0.16 CC Modular Progressive Distributor

Name: DROPSA SMX-16LR 0.16 CC MODULAR PROGRESSIVE DISTRIBUTOR
SKU: 1056011
Availability: LimitedAvailability

dropsa-SMX-16LR-0.16-CC-modular-progressive-distributor-(new)

dropsa-SMX-16LR-0.16-CC-modular-progressive-distributor-(new)-1

dropsa-SMX-16LR-0.16-CC-modular-progressive-distributor-(new)-2

dropsa-SMX-16LR-0.16-CC-modular-progressive-distributor-(new)-3

Neu

Auf Lager3 EinheitenVersandbereit

Dropsa SMX-16LR0.16CC Bridge Valve “ Modular progressive distributor with G1/8 port, nickel-plated build, 500 bar capacity, and II2GD explosion-proof rating. Compatible with oil and grease lubrication systems.

Hersteller

DROPSA

SKU

1056011

Kategorie

Other Mechanical Equipment

Zustand

Neu

500 bar bridge Centralized Distribut Distributor Dropsa Grease High II2GD Industrial lubrication Modular nickel-plated oil Pressure Progressive SMX-16LR0.16CC Valve

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

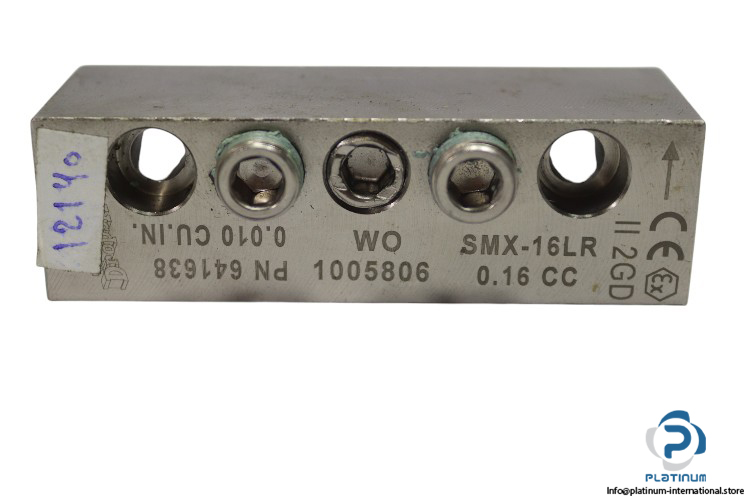

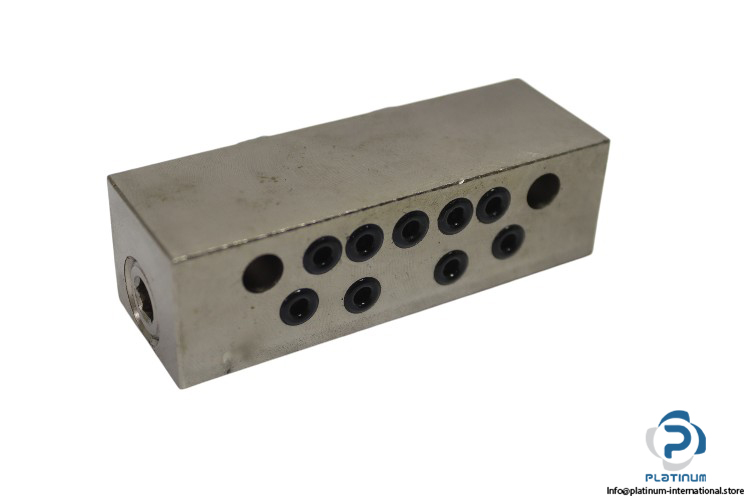

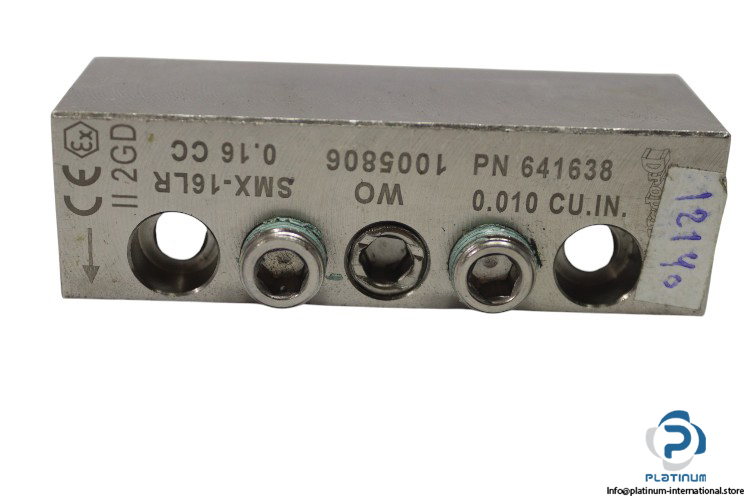

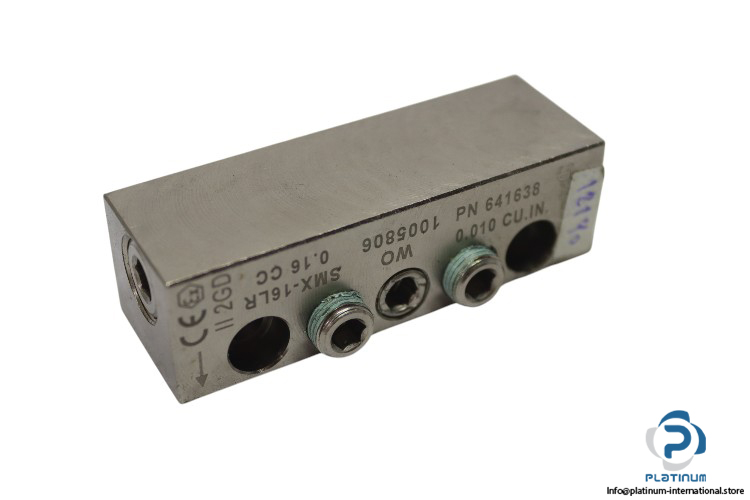

Dropsa SMX-16LR0.16CC Modular Progressive Distributor / Bridge Valve

The Dropsa SMX-16LR0.16CC is a high-precision modular progressive distributor/bridge valve designed for use in advanced lubrication systems. Built for durability and flexibility, it supports multiple thread types and includes key features for reliable and customizable grease and oil delivery.

Manufacturer: Dropsa

Type: Modular Progressive Distributor / Bridge Valve

Model: SMX-16LR0.16CC

MNR: 0.010 CU.IN.

Part No.: 641638

Order No.: 1005806

Key Features:

The two outputs are combined by replacing the adapter

Air bleed valves built into both sides of the base

SAE, Metric, BSP, and NPTF threads available

Full monitoring controls for system diagnostics

Bases include standard O-rings for secure sealing

Fluid	Grease and Oil
Connection	G1/8
Material	Nickel-Plated
Protection	II2GD (Explosion-proof rated)
Operating Pressure	SMX: 7,200 psi (500 bar), SMO: 5,800 psi (400 bar)
