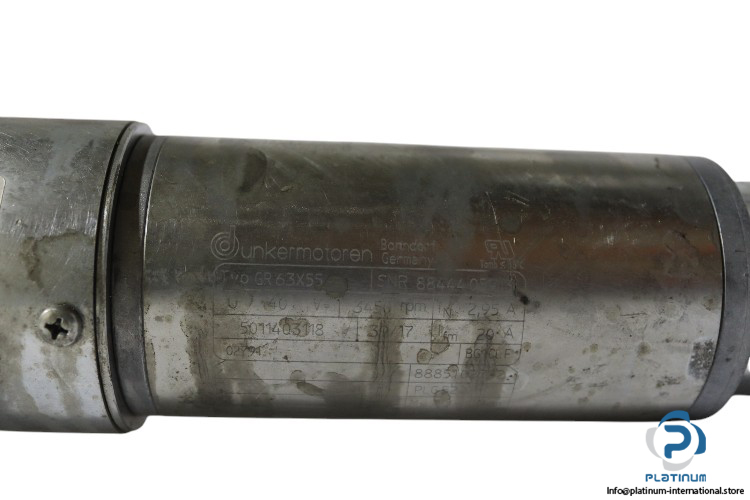

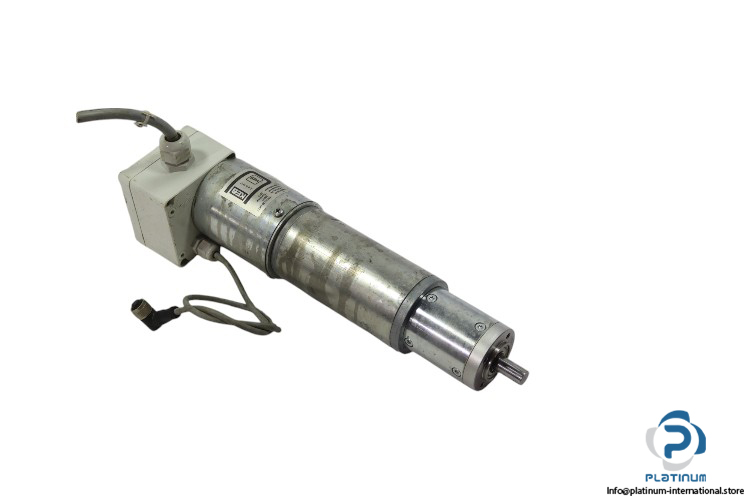

Dunkermotoren GR63X55 DC Gearmotor

Dunkermotoren GR 63X55 DC Gearmotor

The Dunkermotoren GR 63X55 DC Gearmotor is a high-performance motor designed for precision and durability in industrial automation. Featuring a robust PLG52 gear system with a 50:1 ratio, this motor delivers exceptional torque and efficiency. It operates at 40V with a rated torque of 800 Ncm and a rated speed of 3450 rpm, making it ideal for demanding applications. The motor comes integrated with a KEB 37.17.05.02.100.0577 Magnetic Clutch Brake, ensuring controlled operation and enhanced reliability.

• Manufacturer: Dunkermotoren
• Type: DC Gearmotor
• Model: GR 63X55

Technical Specifications

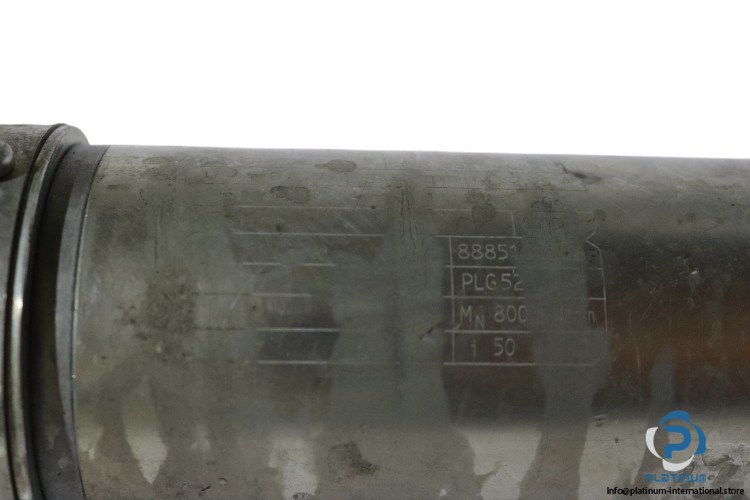

• Ratio: 50
• Gear: PLG52
• Rated Voltage: 40 V
• Rated Current: 2.95 A
• fm Current: 20 A
• Rated Torque: 800 Ncm
• Rated Speed: 3450 rpm

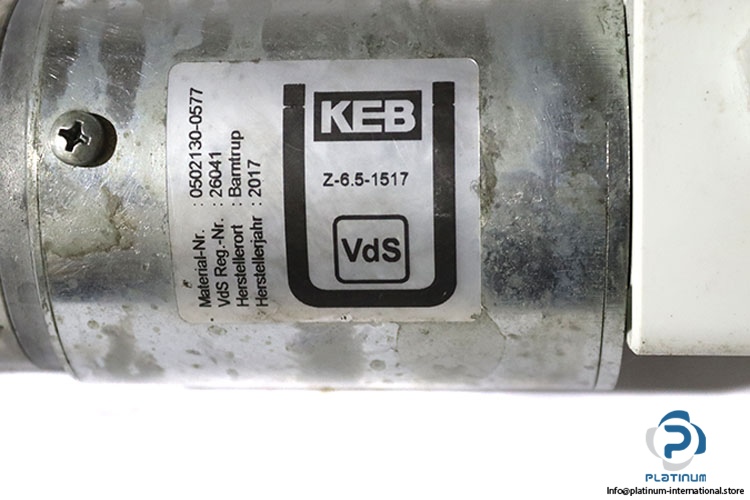

Magnetic Clutch Brake Specifications

• Model: KEB 37.17.05.02.100.0577
• Voltage: 24 V
• Power: 3 W
