Ebro EB10 DW Pneumatic Actuator

Name: EBRO EB10 DW PNEUMATIC ACTUATOR
SKU: 1083901
Availability: LimitedAvailability

Gebraucht

Auf Lager2 EinheitenVersandbereit

Pneumatic Actuator

The EBRO EB10 DW is a double acting pneumatic actuator with 882 Nm torque, 10 bar pressure rating, and hard anodized aluminum body, designed for reliable valve control in industrial systems.

Hersteller

Ebro

SKU

1083901

Kategorie

Pneumatic Actuators

Zustand

Gebraucht

10 882 Acting Actuator Aluminum Anodized bar Components Control Double DW EB-DW EB10 Ebro Hard Industrial Nm Pneumatic Series Valve

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

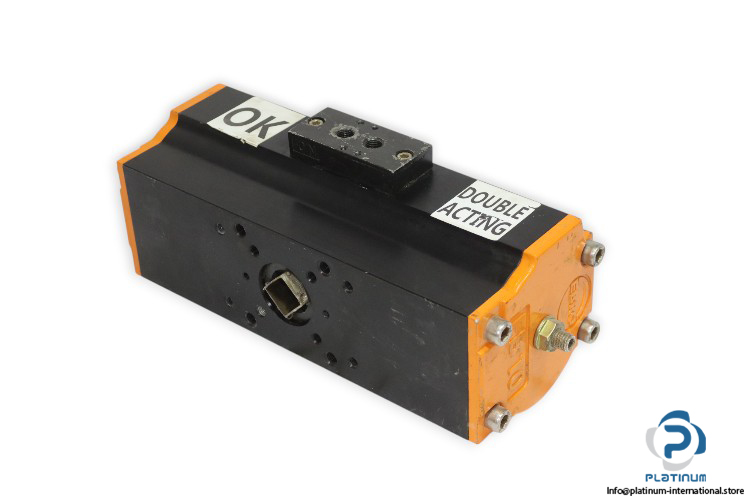

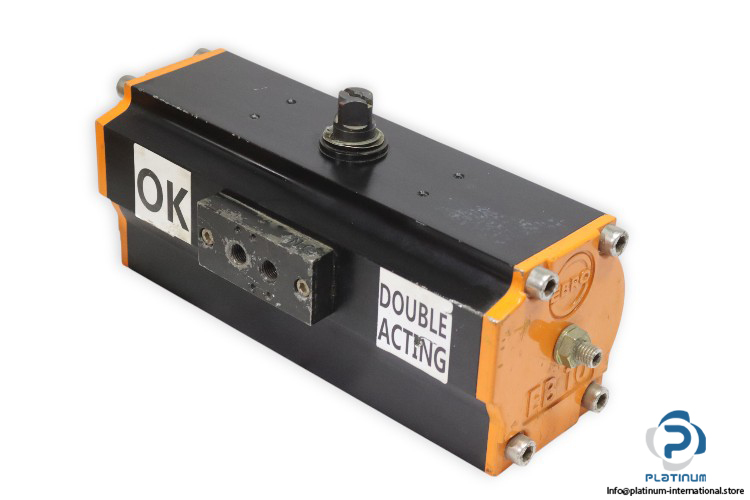

EBRO EB10 DW Pneumatic Actuator

The EBRO EB10 DW Pneumatic Actuator is a durable and precise actuator designed for reliable performance in industrial automation and valve control applications. It features double acting operation and a hard anodized aluminum body for long service life under demanding conditions.

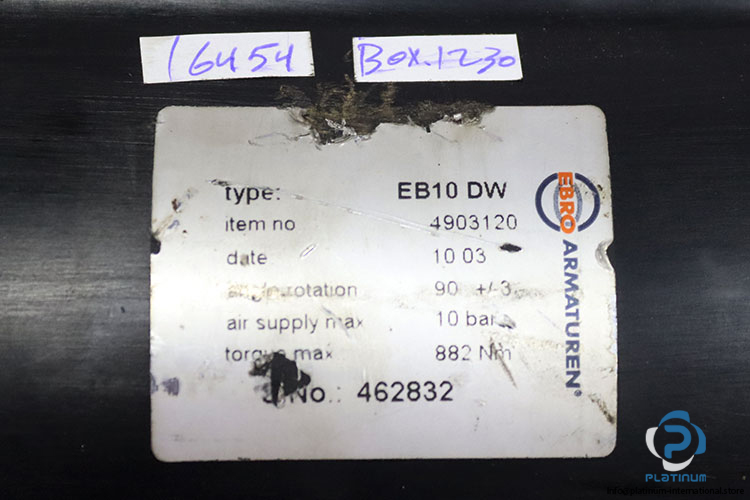

Manufacturer: EBRO

Type: Pneumatic Actuator

Model: EB10 DW

Item No.: 4903120

Serial No.: 462832

Code: 10/03

Series: EB-DW

Size: EB10

Operating Media	Compressed filtered air, not necessarily lubricated
Actuation Type	Double acting
Operating Pressure	Maximum 10 bar
Rotation Angle	90 degrees ± 3 degrees
Maximum Output Torque	882 Nm
Body Material	Hard anodized aluminum
Temperature Range	“20 to +85 degrees Celsius
Dimension (Length x Depth x Piston Dia)	312 x 155 x F07/10 mm
