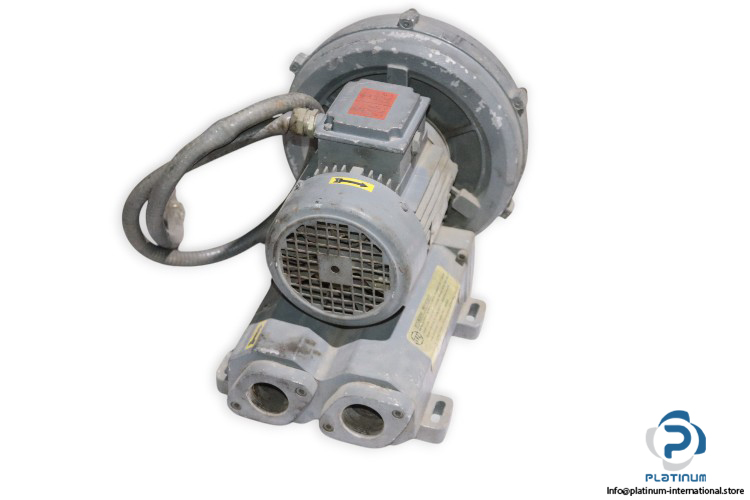

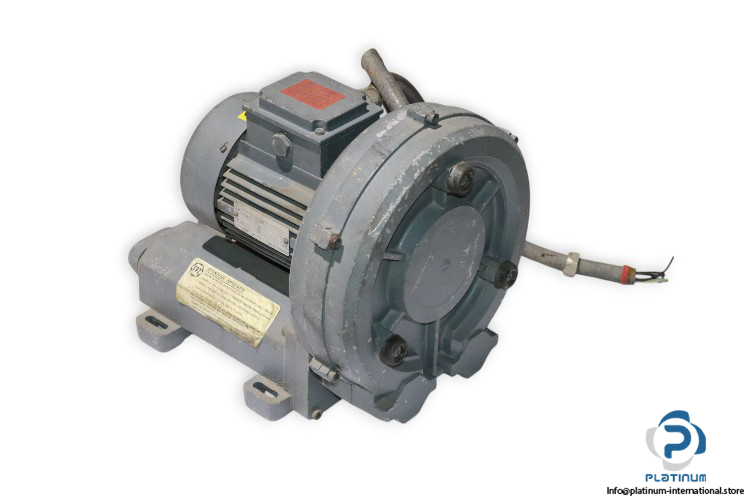

Effepizeta SCL 310 Side Channel Blower

EFFEPIZETA FPZ SCL310 SIDE CHANNEL BLOWER

The EFFEPIZETA FPZ SCL310 Side Channel Blower is a high-performance blower designed for various industrial applications. It is attached with the 5AZ 71B-2 B9 Electric Motor, ensuring reliable operation with an efficient power output for effective air circulation and ventilation.

Manufacturer: EFFEPIZETA FPZ

Type: Side Channel Blower

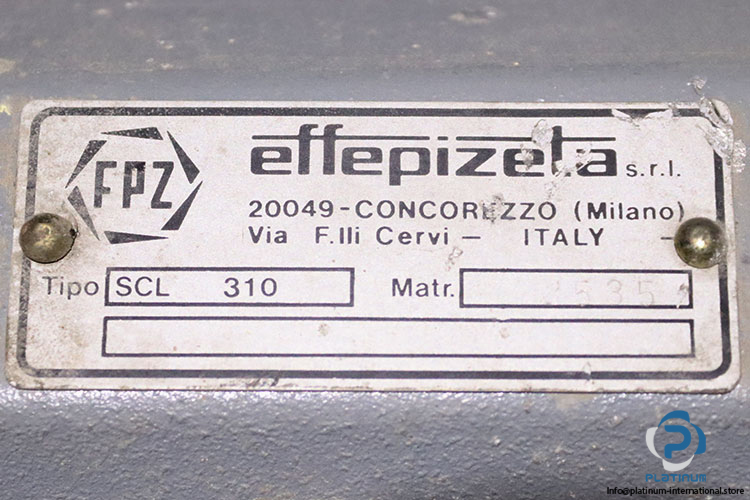

Model: SCL310

Attached with: 5AZ 71B-2 B9 ELECTRIC MOTOR

Electric Motor Type: ELECTRIC MOTOR

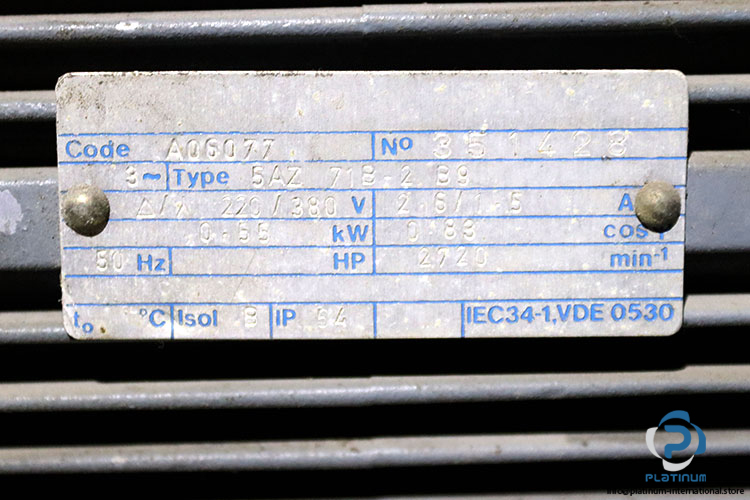

Motor Model: 5AZ 71B-2 B9

Motor Code no.: A06077

Motor Part No.: 351428

Technical Specifications

• Supply Voltage [V]: 220 / 380
• Rated Power [kW]: 0.55
• Rated Current [A]: 2.6 / 1.5
• Frequency [Hz]: 50
• Rated Speed [rpm]: 2720
• Protection Class [IP]: 54
• Power Factor [cos]: 0.88
• Insulation Class: B
