Eltra EL58C400S5/28P8X3PR3.788 Incremental Encoder

Name: ELTRA EL58C400S5/28P8X3PR3.788 INCREMENTAL ENCODER
SKU: 1044813
Availability: LimitedAvailability

eltra-EL58C400S5_28P8X3PR3.788-incremental-encoder-(new)

eltra-EL58C400S5_28P8X3PR3.788-incremental-encoder-(new)-1

eltra-EL58C400S5_28P8X3PR3.788-incremental-encoder-(new)-2

eltra-EL58C400S5_28P8X3PR3.788-incremental-encoder-(new)-3

eltra-EL58C400S5_28P8X3PR3.788-incremental-encoder-(new)-4

Neu

Auf Lager1 EinheitVersandbereit

INKREMENTALER ENCODER ELTRA EL58C400S528P8X3PR3.788 ist ein 58 mm rotierender optischer Encoder mit 400 PPR Auflösung, Push-Pull-Schnittstelle und IP54 Schutz. Ideal für Automatisierungs- und Hochgeschwindigkeits-Drehmesssysteme.

Hersteller

ELTRA

SKU

1044813

Kategorie

Rotary Encoders

Zustand

Neu

400 58 EL58C400S528P8X3PR3.788 Eltra Encoder Feedback Incremental Industrial IP54 mm Optical PPR Pull Push Rotary Sensor

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

ELTRA EL58C400S528P8X3PR3.788 INCREMENTAL ENCODER

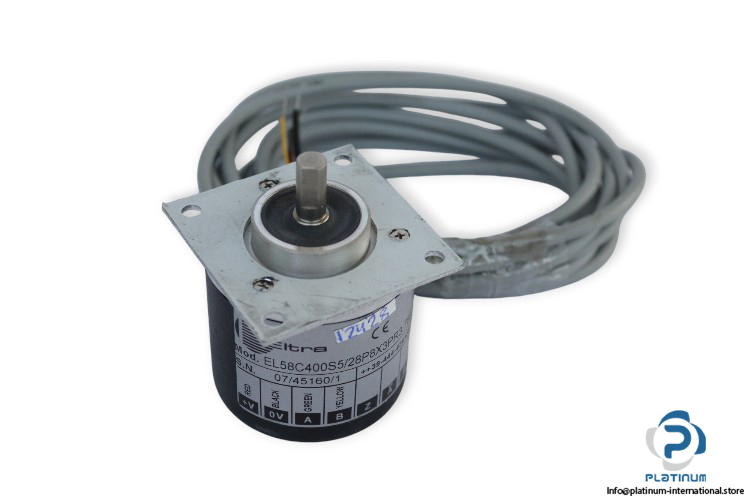

This rotary optical encoder is engineered for accurate and high-speed position feedback. Ideal for automation systems, it combines a compact 58 mm body with solid performance and IP54 protection.

Manufacturer: ELTRA

Type: Incremental Encoder

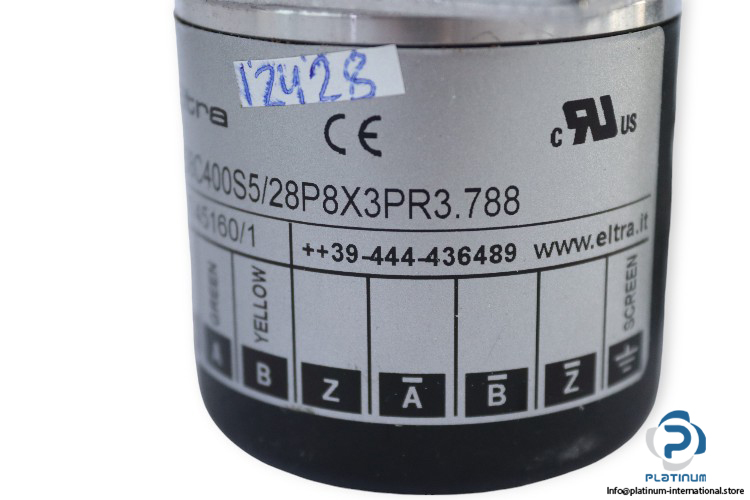

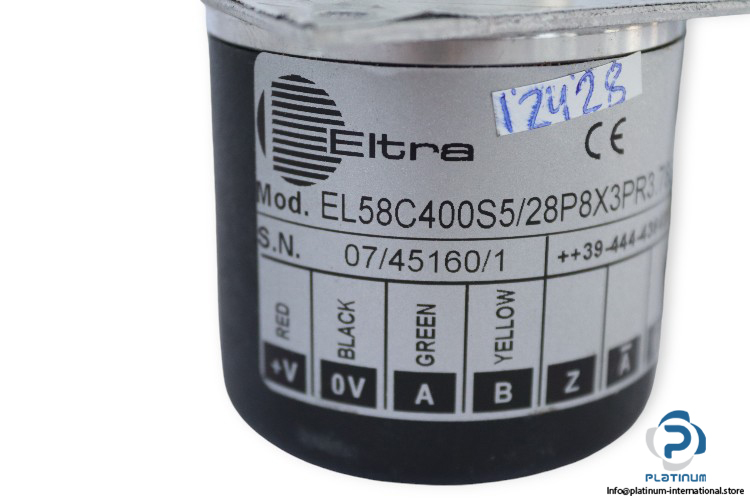

Model: EL58C400S528P8X3PR3.788

Serial No.: 07/45160/1

Power Supply	5 / 28 V DC
Operating Principle	Incremental
Measurement Type	Rotary
Sensor Type	Optical
Resolution	400 PPR
Shaft Type	Solid Shaft
Shaft Diameter	8 mm
Mounting Type	Clamping Flange
Electronic Interface	Push Pull

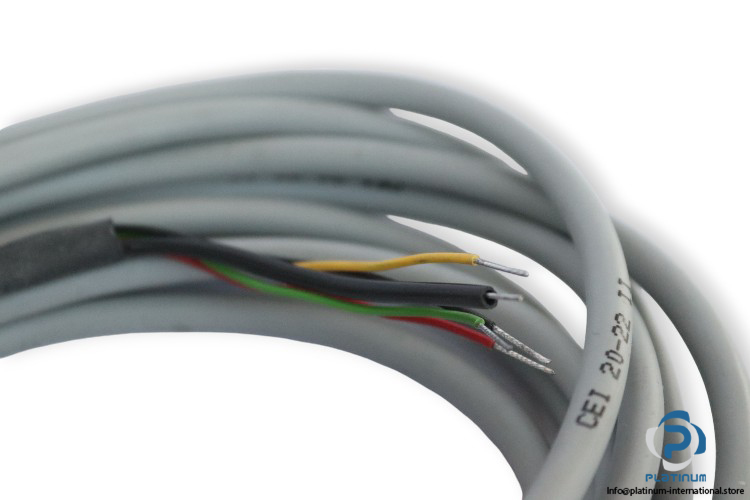

Output Type	Cable (5 wires)
Max Output Frequency	250 kHz
Max Rotation Speed	3000 RPM
Protection Degree	IP54
Direction Type	Radial
Construction Size (Diameter)	58 mm
Operating Temperature	-10 / +60°C
