Eltra EL63G1200S5/28P15X3PR.T Incremental Encoder
Gebraucht
Auf Lager1 EinheitVersandbereit
Inkrementeller Encoder Eltra EL63G1200S5/28P15X3PR.T Drehgeber liefert 1200 ppr Auflösung mit Push-Pull-Schnittstelle, blindem Hohlwelle und IP54 Schutz. Ideal für präzises Feedback in Automatisierungssystemen.
1200AutomationEL63G1200S5EltraEncoderFeedbackhollowIncrementalIndustrialIP54OpticalPPRRotarySensorshaft
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

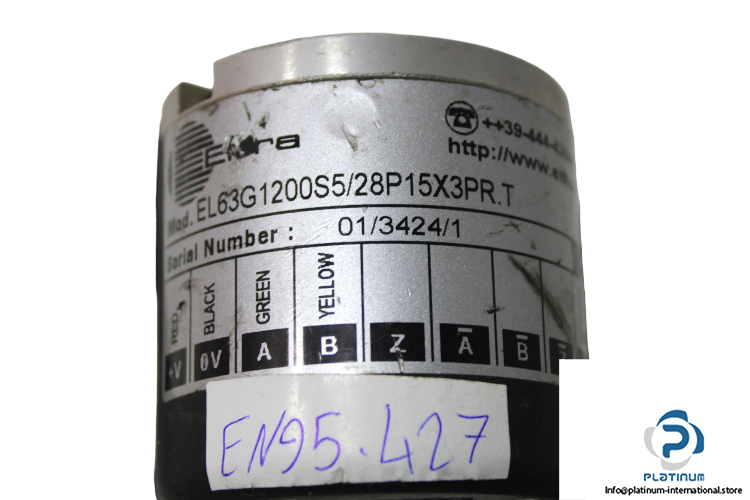

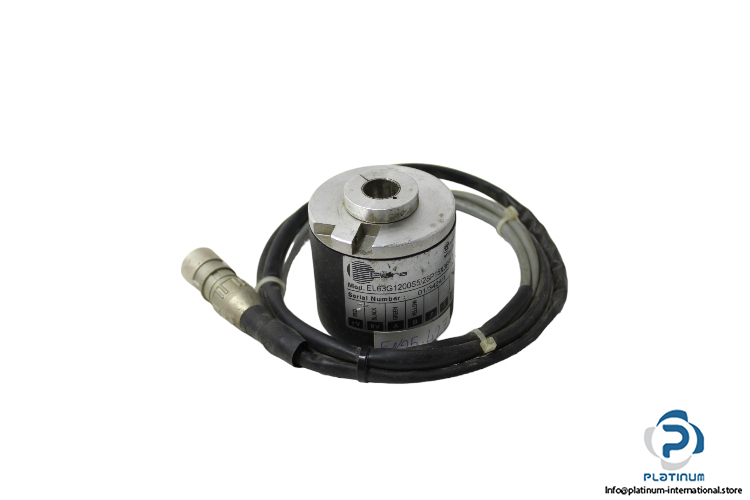

ELTRA EL63G1200S5/28P15X3PR.T INCREMENTAL ENCODER
Eltra's EL63G1200S5/28P15X3PR.T is a high-resolution incremental encoder built for precise rotary motion feedback in industrial automation systems. With a compact build and optical sensing technology, it offers stable and accurate performance, even in demanding environments.
Manufacturer: Eltra
Type: Incremental Encoder
Model: EL63G1200S5/28P15X3PR.T
Serial No.: 01/3424/1
| Power Supply | 5 / 28 V DC |
| Bore Diameter | 15 mm |
| Construction Size (Diameter) | 63.5 mm |
| Max Rotation Speed | 3000 rpm |
| Resolution | 1200 pulses per revolution (ppr) |
| Max Output Frequency | 300 kHz |
| Shaft Type | Blind hollow shaft |
| Electronic Interface | Push pull |
| Output Type | Cable |
| Cable Length | 1.5 m |
| Direction Type | Radial |
| Measurement Type | Rotary |
| Sensor Type | Optical |
| Enclosure Rating | IP54 |
| Operating Temperature | -10 / +60 °C |
