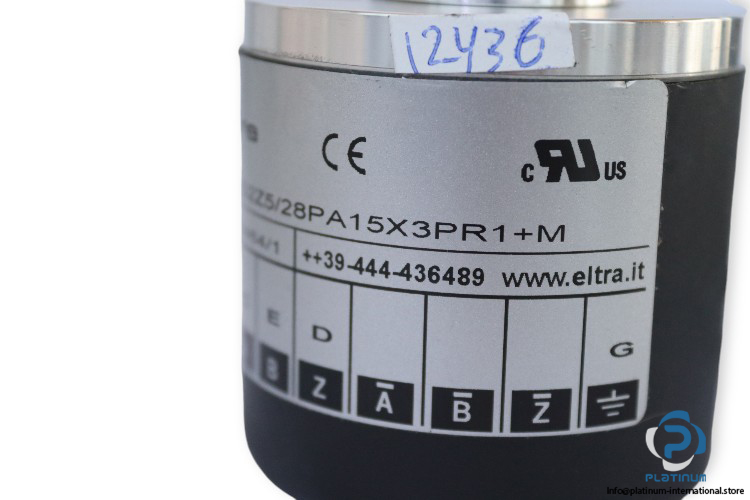

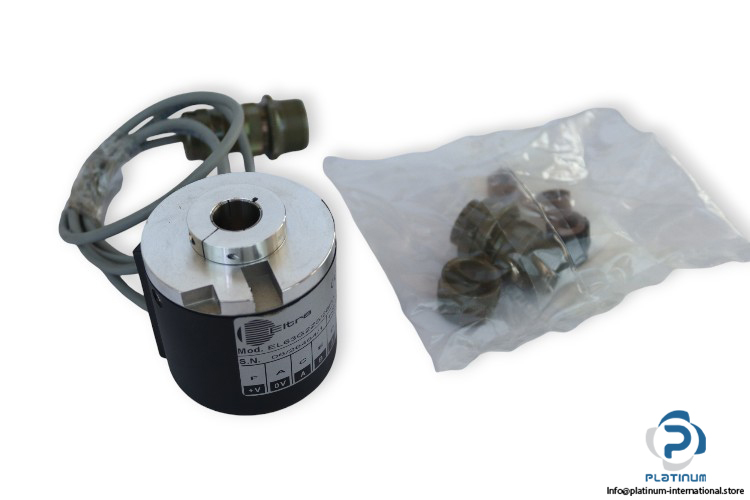

Eltra EL63G2Z5/28PA15X3PR1+M Incremental Encoder
INKREMENTALER DREHGEWICHTELER ELTRA EL63G2Z5/28PA15X3PR1M optischer Drehgeber mit Hohlwelle, Drehmomentstiftmontage, 2 PPR Auflösung und Push-Pull-Schnittstelle. Ideal für präzise industrielle Bewegungskontrollanwendungen.
ELTRA EL63G2Z5/28PA15X3PR1M INCREMENTAL ENCODER
The ELTRA EL63G2Z5/28PA15X3PR1M is a high-precision optical rotary encoder designed for accurate and reliable position feedback in industrial automation systems. Engineered with a 63.5 mm construction diameter, this hollow shaft encoder offers durable performance in a compact design. With a wide voltage range and push-pull electronic interface, it ensures consistent signal transmission even in demanding environments.
Manufacturer: ELTRA
Type: Incremental Encoder

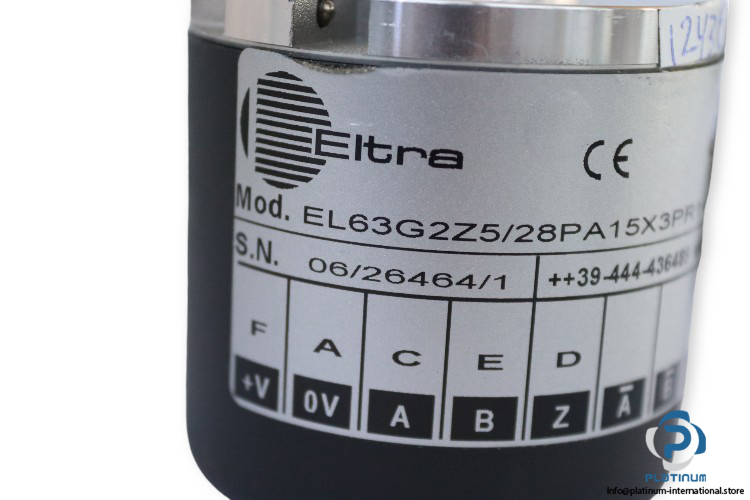

Model: EL63G2Z5/28PA15X3PR1M
Serial No.: 06/26464/1
| Power Supply | 5 / 28 V DC |
| Operational Principle | Incremental |
| Shaft Type | Hollow Shaft |
| Mounting Type | Torque Pin |
| Electronic Interface | Push Pull |
| Resolution | 2 PPR |
| Bore Diameter | 15 mm |
| Max Rotation Speed | 3000 RPM |

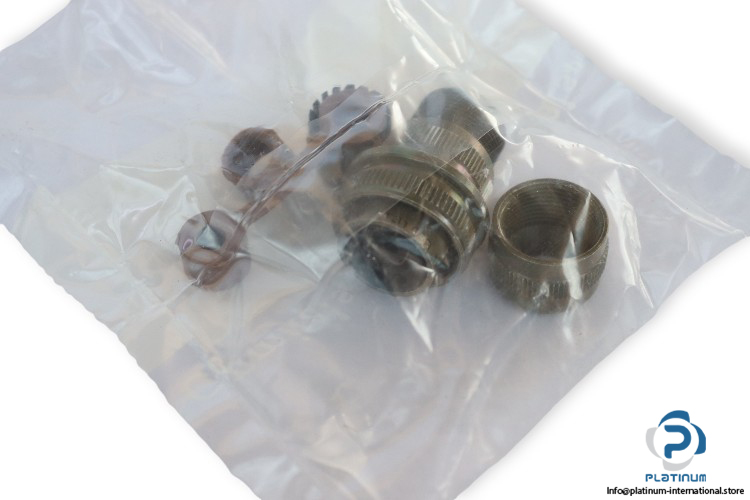

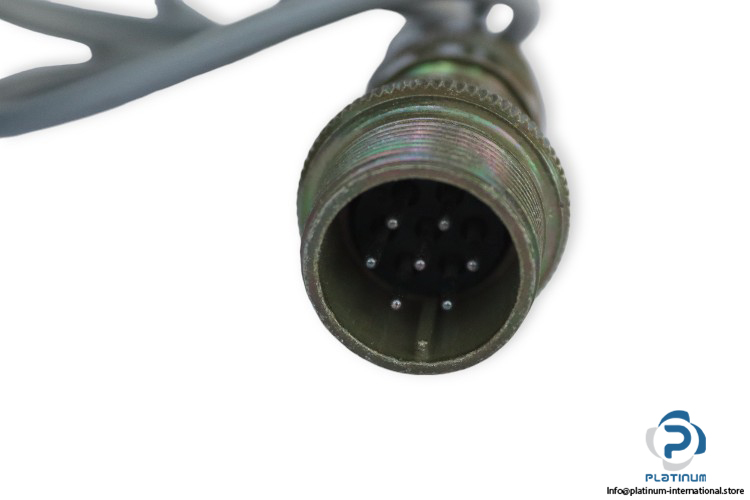

| Output Type | Cable End with Connector (7 Pins) |
| Protection Degree | IP54 |
| Direction Type | Radial |
| Construction Size | 63.5 mm |
| Max Output Frequency | 250 kHz |
| Operating Temperature | -10 / +60°C |
| Measurement Type | Rotary |
| Type of Sensor | Optical |
