Embraco EMT6170Z Compressor
Neu
Auf Lager2 EinheitenVersandbereit
KOMPRESSORPAKET Hochleistungs-Einphasen-Kompressorsystem mit Embraco EMT6170Z, Elco Schattiertpolmotor und Frigomec Akkumulator. Entwickelt für Niedertemperaturanwendungen mit konstanter Leistung und Energieeffizienz.
1.3accumulatorcompressorElcoEmbracoEMT6170ZFrigomecHPlowmotorNET2T12PVN001PhaseR-134aRefrigerationRV-77X220SingleSuctionSystemTemp
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

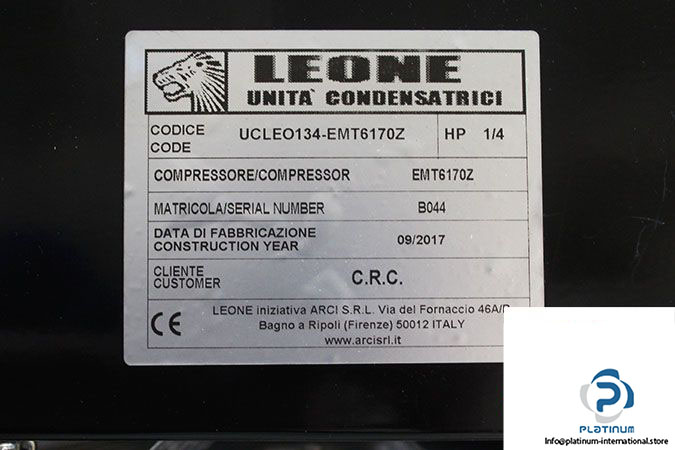

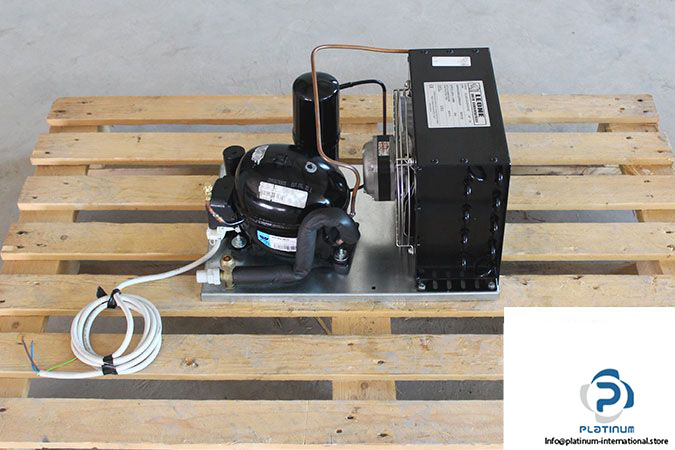

EMBRACO EMT6170Z COMPRESSOR PACKAGE

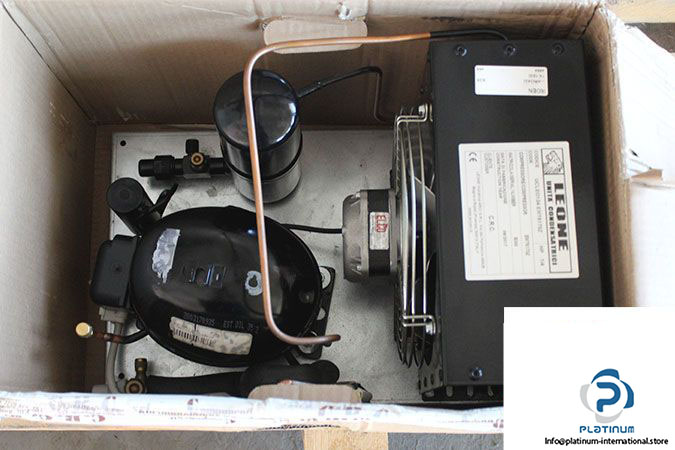

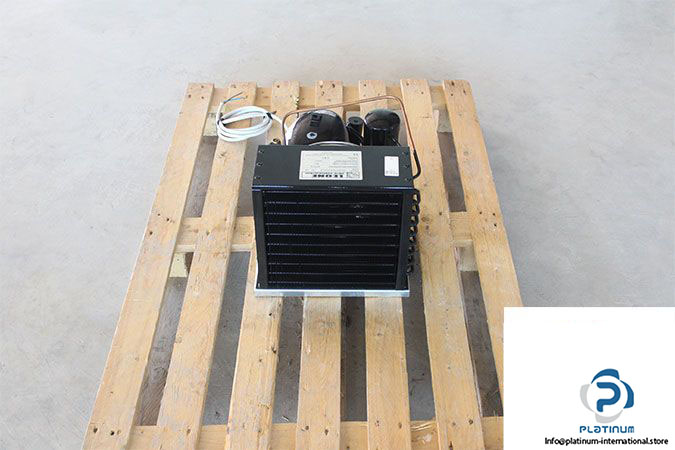

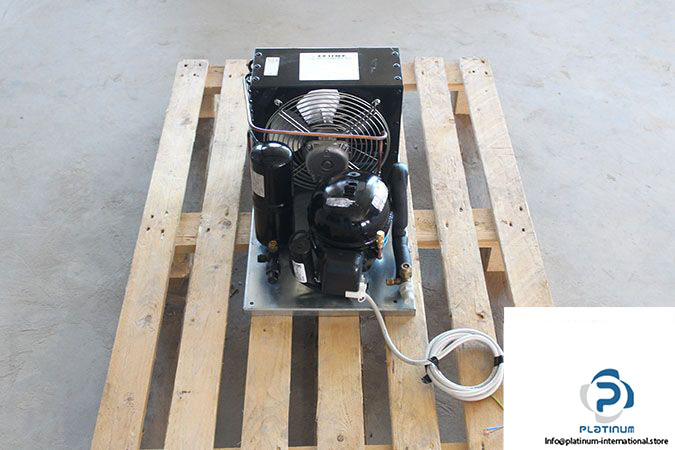

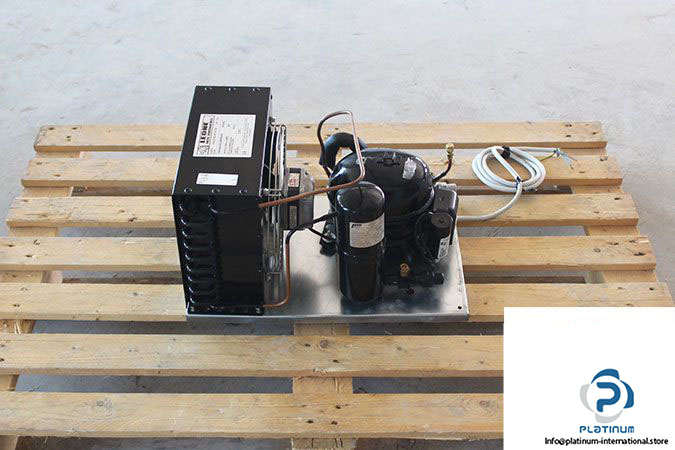

This complete refrigeration compressor solution features the Embraco EMT6170Z compressor, Elco shaded pole motor, and Frigomec RV-77X220 suction accumulator ” engineered for efficient cooling, reliability, and seamless integration in professional refrigeration systems.

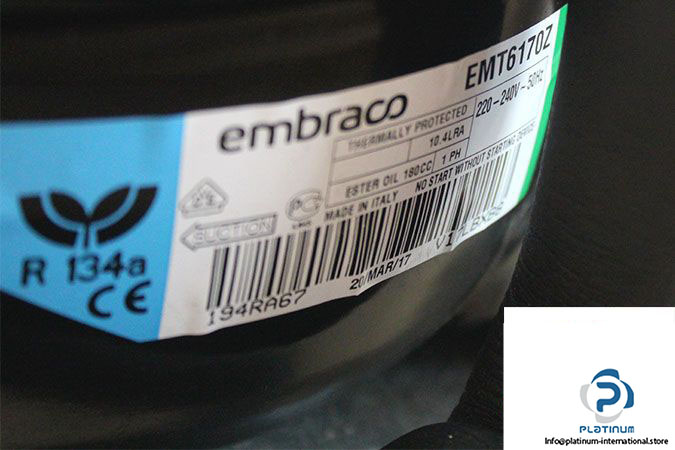

Manufacturer: Embraco
Type: Compressor
Model: EMT6170Z
Engineering Nr.: 194VA67
Phase: 1~ Single Phase
Attachments:
| Horsepower [Hp] | 1/3 “ |
| Rated Voltage [V] | 200-240 |
| Displacement [cm³] | 7.69 |
| Bore [mm] | 24.0 |
| Stroke [mm] | 17.0 |
| Range Temperature [°C] | -15 / 10 |
| Locked Rotor Amperage [A] | 10.4 |
| Lubricants Type/Viscosity | ESTER / ISO22 |
| Frequency [Hz] | 50 |
| Refrigerant | R-134a |
| Lubricant Charge [ml] | 180 |

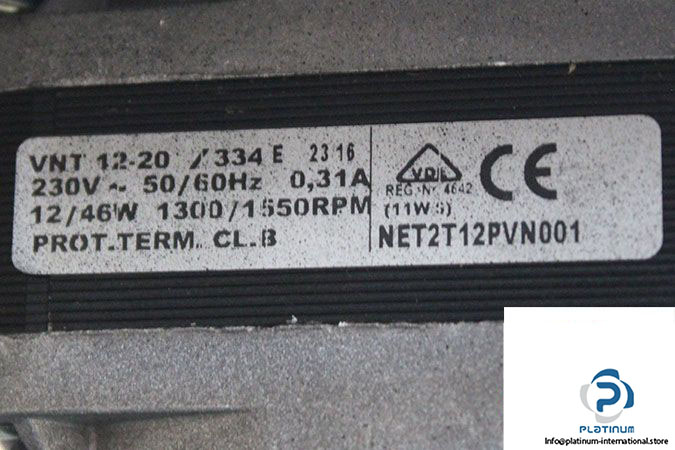

| Motor Type | VNT12-20/334 |
| Nominal Voltage [V] | 230 |
| Rated Current [A] | 0.31 |
| Power Input [W] | 46 |
| Power Output [W] | 12 |
| Frequency [Hz] | 50/60 |
| Speed [rpm] | 1300/1550 |
| Degree of Protection [IP] | 44 |
| Insulation Class | B |

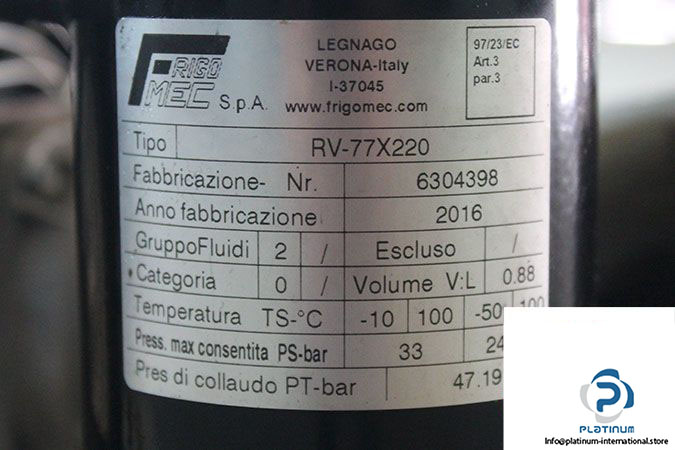

| Part No. | 6304398 |
| Fluids Group | 2 |
| Volume [L] | 0.88 |
| Temperature [°C] | -10 / 120 / -50 / 100 |
| Max Pressure [bar] | 33 / 24 |
| Test Pressure [bar] | 47.19 |
