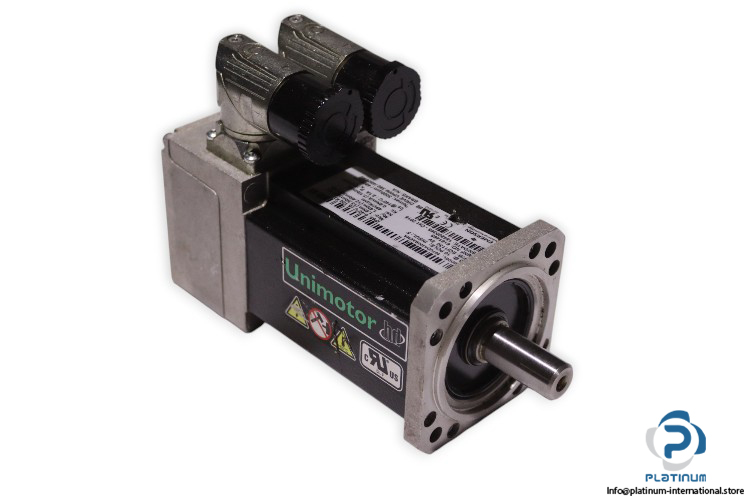

Emerson 067UDA300BAEMA Servo Motor
Manufacturer: EMERSON
Type: Servo Motor

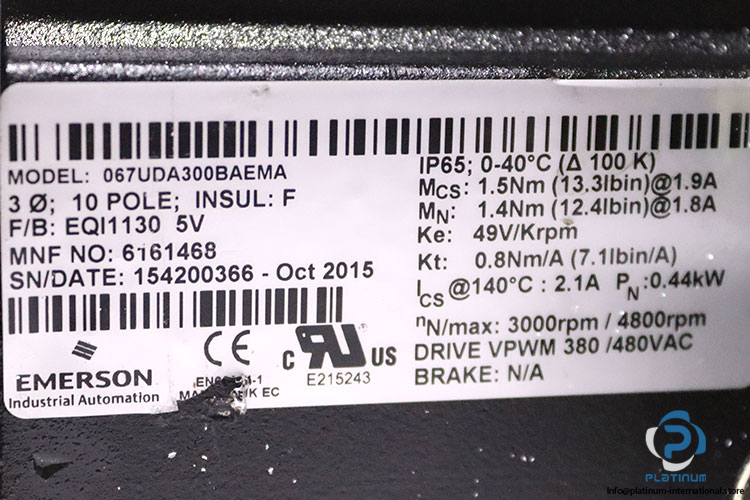

Model: 067UDA300BAEMA
MNF No.: 6161468
Rated Voltage: 380/480 VAC
Rated Power: 0.44 kW
Rated Torque: 1.4 Nm
Stall Torque: 1.5 Nm
Rated Current: 1.8 A
Stall Current: 1.9 A
Rated Speed: 3000 rpm
Max. Speed: 4800 rpm
Ke: 49 V/Krpm
Kt: 0.8 Nm/A
Protection Class [IP]: 65
Temperature: 0 … 40 ° C
Poles: 10
Insulation Class: F
