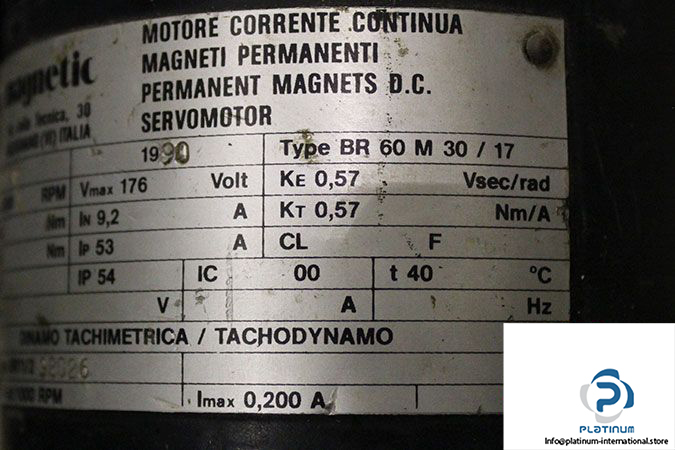

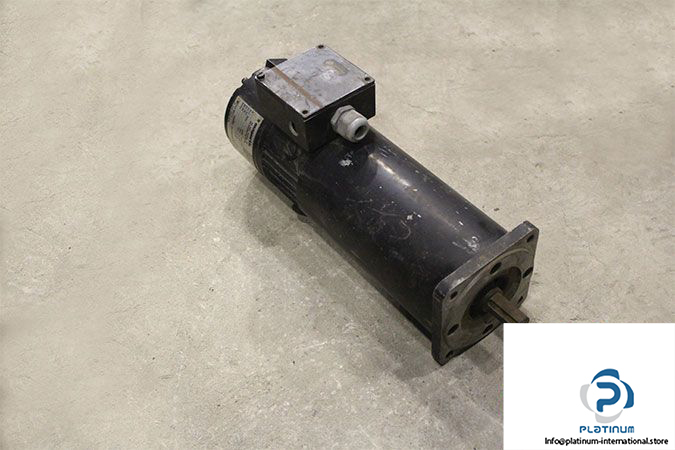

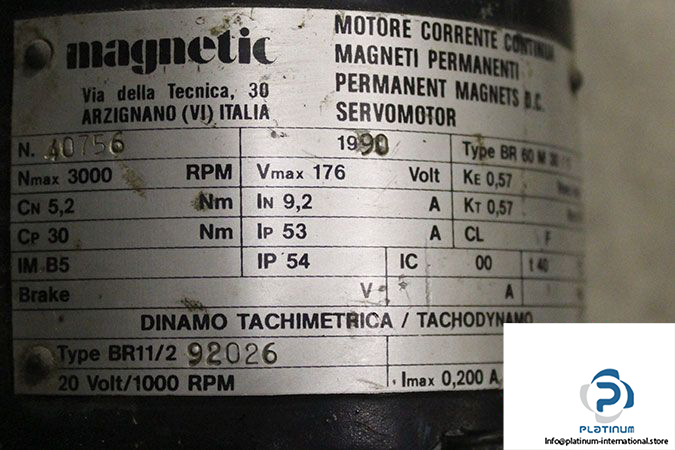

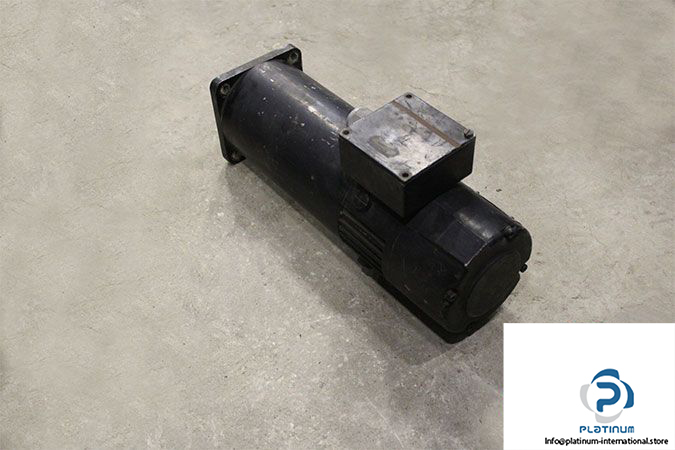

Magnetic BR 60 M 30/17 Permanent Magnet DC Servomotor

Manufacturer: Magnetic

Type: Permanent Magnet DC Servo Motor

Model: BR60M30/17

Max Speed [rpm]: 3000

Rated Torque [Nm]: 5.2

Peak Torque [Nm]: 30

Max. Voltage [VDC]: 176

Rated Current [A]: 9.2

Peak Current [A]: 53

Constant Voltage [Vsec/rad]: 0.57

Constant Current [Nm/A]: 0.57

Tacho Dynamo

Max. Current [A]: 0.2

Constant Voltage [V/1000rpm]: 20

Max. Temperature [°C]: 40

Protection Class [IP]: 54

Weight [Kg]: 15.7
