Endress+Hauser 65I-20AB1AD1AAABCA Thermal Mass Flowmeter

Name: ENDRESS+HAUSER 65I-20AB1AD1AAABCA THERMAL MASS FLOWMETER
SKU: 1056840
Availability: LimitedAvailability

endress-hauser-65I-20AB1AD1AAABCA-thermal-mass-flowmeter-(used)

endress-hauser-65I-20AB1AD1AAABCA-thermal-mass-flowmeter-(used)-1

endress-hauser-65I-20AB1AD1AAABCA-thermal-mass-flowmeter-(used)-2

endress-hauser-65I-20AB1AD1AAABCA-thermal-mass-flowmeter-(used)-3

endress-hauser-65I-20AB1AD1AAABCA-thermal-mass-flowmeter-(used)-4

endress-hauser-65I-20AB1AD1AAABCA-thermal-mass-flowmeter-(used)-5

endress-hauser-65I-20AB1AD1AAABCA-thermal-mass-flowmeter-(used)-6

endress-hauser-65I-20AB1AD1AAABCA-thermal-mass-flowmeter-(used)-7

Gebraucht

Auf Lager1 EinheitVersandbereit

Thermal Mass Flowmeter

The Endress+Hauser PROLINE t-MASS 65 thermal mass flowmeter measures gas flow rates from 20 to 720,000 kg/h. It supports various gases and offers digital communication options like Profibus and Modbus. Designed for duct or pipe installations, it is ideal for industrial gas measurement systems.

Hersteller

ENDRESS+HAUSER

SKU

1056840

Kategorie

Instrumentation

Zustand

Gebraucht

65 Communication Digital Endress+Hauser flow Flowmeter Gas Industrial Insertion Mass Measurement Modbus Profibus Proline Rate t-MASS Thermal

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

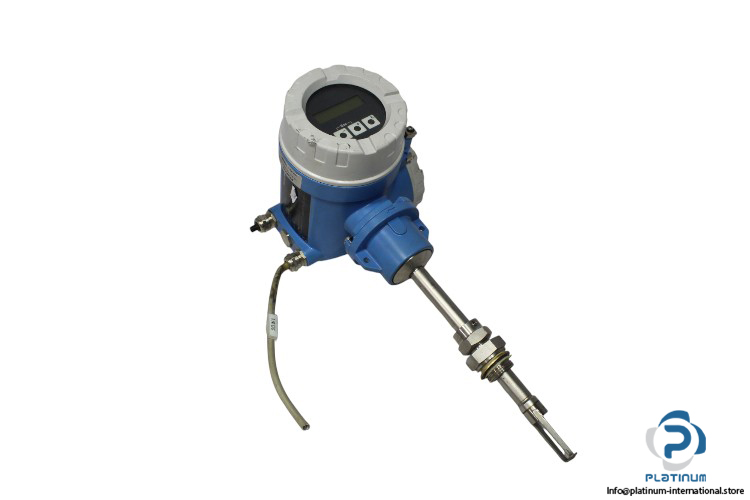

Endress+Hauser PROLINE t-MASS 65 “ Thermal Mass Flowmeter

The Endress+Hauser PROLINE t-MASS 65 is a state-of-the-art thermal mass flowmeter designed for precise mass flow measurement of gases in industrial applications. This model offers digital communication and flexible configurations, making it ideal for duct or pipe installations.

Manufacturer: Endress+Hauser

Type: Thermal Mass Flowmeter

Model: PROLINE t-MASS 65

Order Code: 65I20AB1AD1AAABCA

t-mass 65I	Insertion version for duct or pipe installations
Used	For precise measurement of mass flow rates of gases, particularly in industrial applications
Measuring Ranges	20 to 720000 kg/h (44 to 1587328 lb/h)
Measuring Variables	Mass flow, temperature, volume flow, energy flow
Gas Compatibility	Suitable for air, oxygen, nitrogen, carbon dioxide, argon, and other gases
Digital Communication	Profibus DP, Profibus PA, Foundation Fieldbus, Modbus
Max. Process Pressure	-0.5 to 20 bar gauge (-7.25 to 290 psi gauge)
Output Signals	4-20mA HART (active/passive selectable), pulse, frequency, status
Input Signal	4-20mA, status input

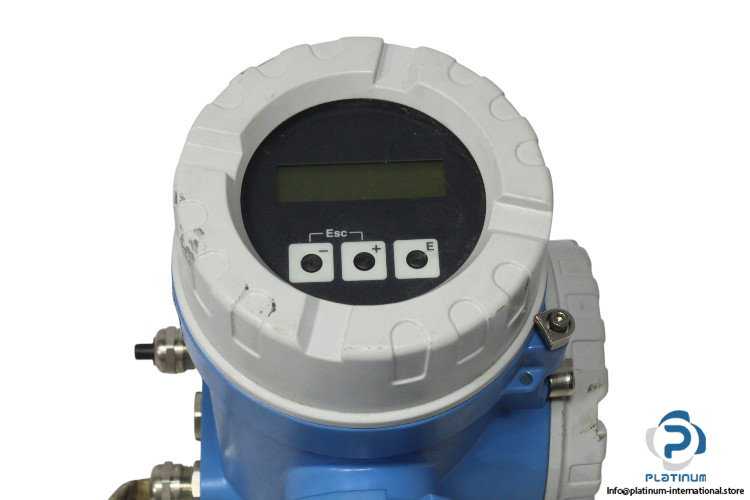

Display	Liquid crystal: back-lit, two lines with 16 characters per line
Configuration	Via local display and operating tools possible
Supply Voltage	20 to 55 VAC, 50 to 60 Hz / 16 to 62 VDC
Power	14VA/8W
Ambient Temperature Range	-20 to 60°C
Medium Temperature Range	-40 to +130°C
Transmitter Housing Material	Powder coated die-cast aluminum
Nominal Diameter Range	DN 80 to 1500 (3 to 60")
Protection Class	IP67 (NEMA 4X) for transmitter and sensor
