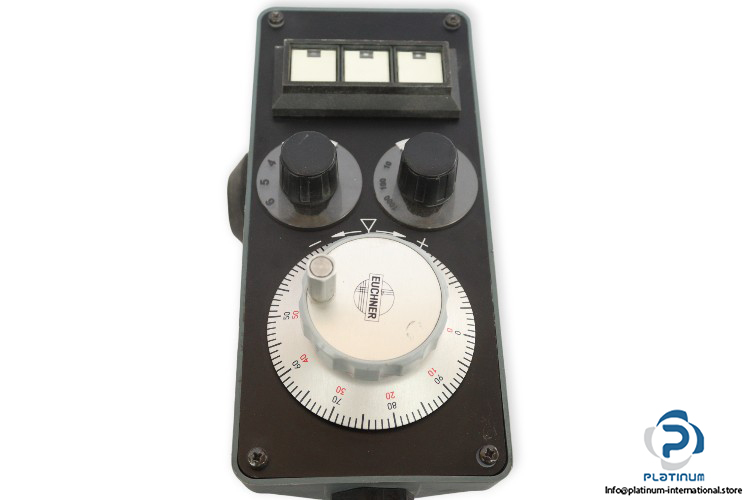

Euchner HBE-072599 Hand-Held Pendant Station

Manufacture: Euchner
Type: Hand-Held Pendant Station

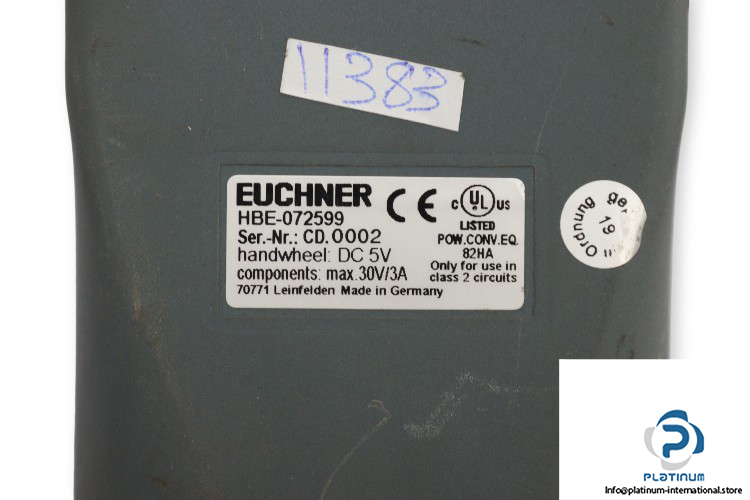

Model: HBE072599
Order No.: 072 599

Features:
3-stage Enabling Switch
3 Illuminated Push Buttons, individual inscribable
2 Selector Switches
Pulses/revolution: 2 x 100
Handwheel Operating voltage: 5 V DC
Enabling Push Button ZSE:
Switching element: 2 x NO, 1 x positively driven NC
Utilization category: (AC-15) Ue: 24 V Ie: 4 A, (DC-13) Ue: 24 V Ie: 3 A
3-fold Push Buttons:
Switching element: 1 x NO
Switching voltage max.: 30 V DC
Switching current max.: 100 mA
Switching load max.: 1 W
LED: I = 4.7 mA / U = 24 V DC / Rv = 4.7 k„¦
Selector Switches
Switching voltage max.: 30 V DC
Switching current max.: 100 mA
Switching load max.: 2 W
Component rating Max: 30 V/3 A
Material: Polyamide
Color: blue-grey RAL 7031
Ambient temperature: 0 … +55 °C
Degree of protection: IP65

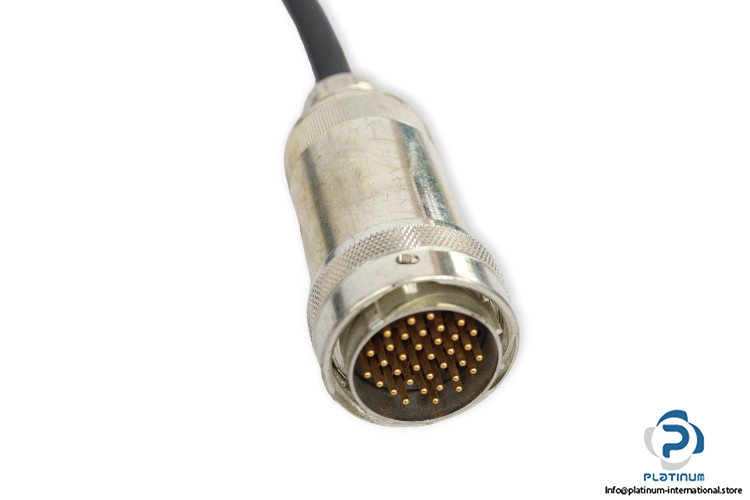

Connection: Lead 3.5 m, plug connector 35-pin
