Euchner N11R Precision Single Limit Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
Precision Single Limit Switch
The EUCHNER N11R Precision Single Limit Switch is a high-quality switch featuring **250 V insulation voltage**, **2.5 kV impulse voltage**, and **IP67 protection**, designed for industrial environments.102.5250aAlloyAmbientClassComponentsCurrentdie-castEuchnerImpulseIndustrialInsulationIP67kVLimitN11RNCNONormallyPrecisionProtectionSingleSwitchTemperatureThermalVvoltage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

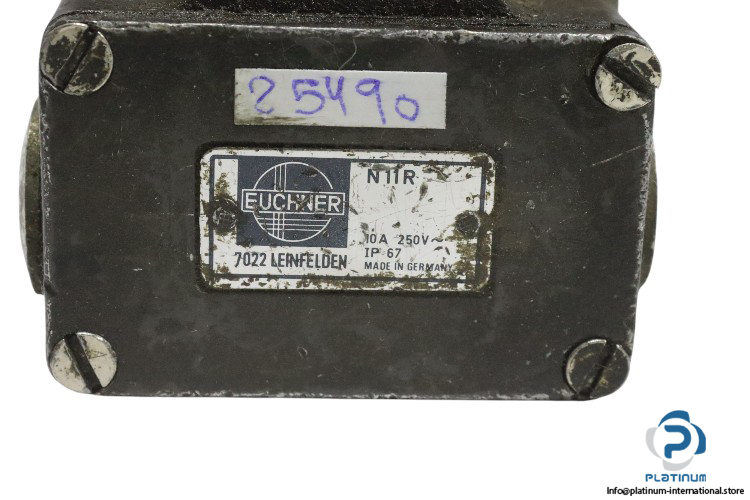

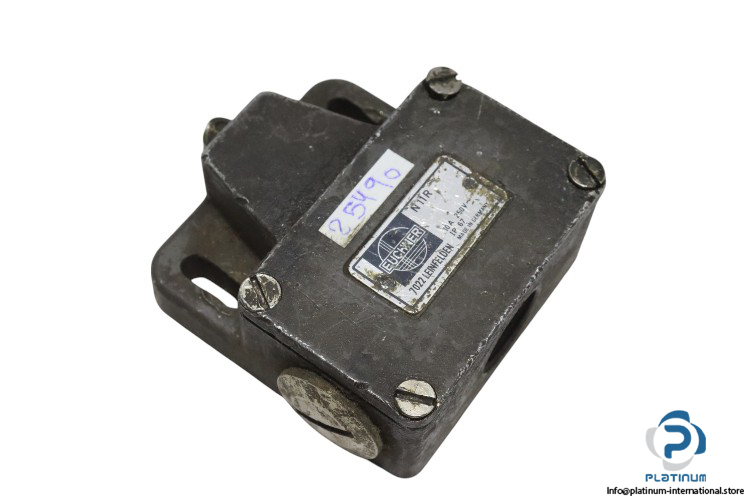

EUCHNER N11R Precision Single Limit Switch
The EUCHNER N11R Precision Single Limit Switch is designed for reliable switching in industrial applications. Made from anodized die-cast alloy, it offers high protection with an IP67 rating, ensuring durable and long-lasting performance in harsh environments.
Manufacturer: EUCHNER
Type: Precision Single Limit Switch
Model: N11R
| Rated Insulation Voltage (Ui) | 250 V |
| Rated Impulse Voltage (Uimp) | 2.5 kV |
| Rated Thermal Current | 10 A |
| Contact | 1 Normally (NO) + 1 Normally Closed (NC) |
| Material | Anodized Die-Cast Alloy |
| Protection Class | IP67 |
| Ambient Temperature | -5 to 80 °C |
| Dimensions | 65 x 62 x 30 mm |
