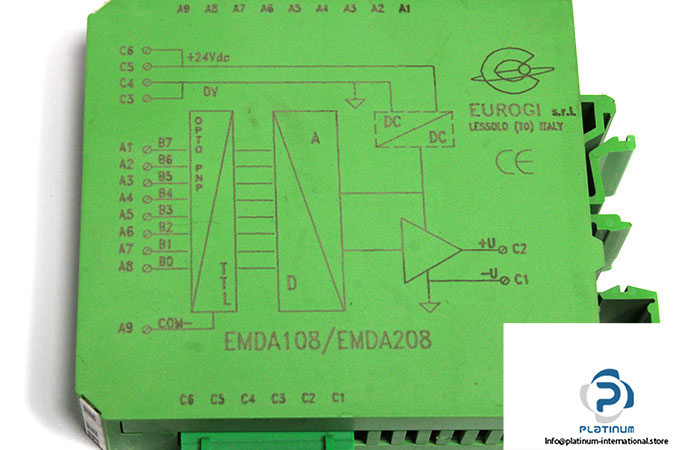

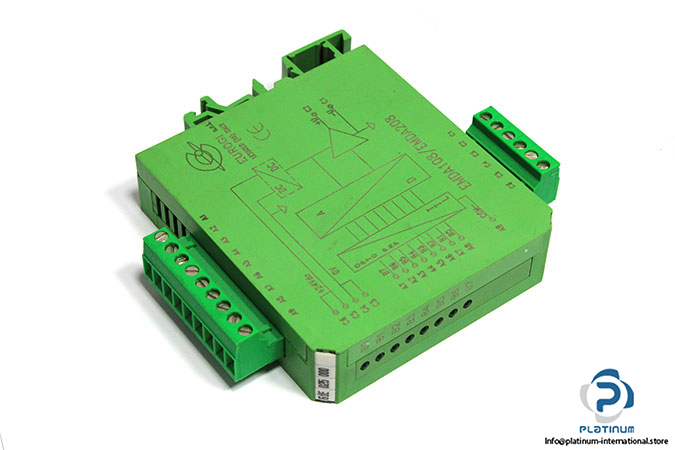

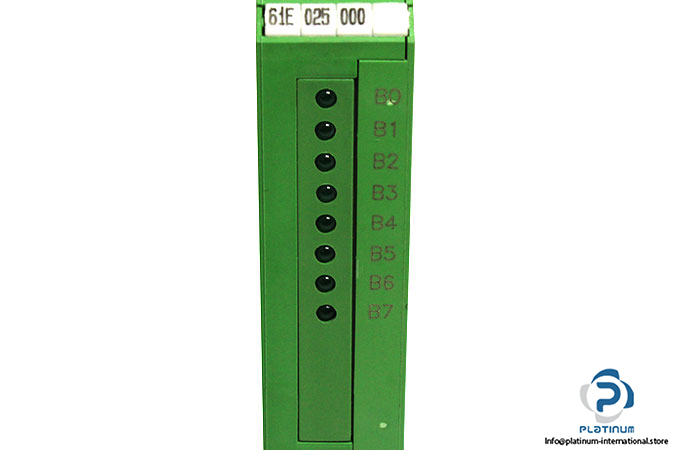

Eurogi EMDA108/EMDA208 Electronic Module

Manufacturer: Eurogi
Type: Electronic Module
Model: EMDA108/EMDA208

8 bit Digital/Analogic Binary Converter Module
Power Supply: 20…35 VDC
Absorbed Current: 100 mA

Input:
Voltage / Load: PNP 24 V DC / 5 mA
Insulation: 500 V AC

Output:
Voltage / Impedance: 0 … ± 10 Vdc / 20 mA

Connection: Morsetti Estraibili / Pluggable Terminal Blocks
Enclosure: IP20
Operating Temperature: 0 … 50 °C
Dimensions: 22,5 x 113 x 100 mm
