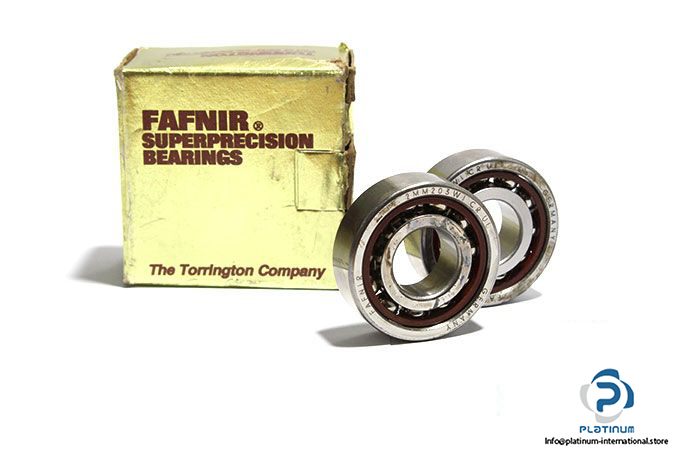

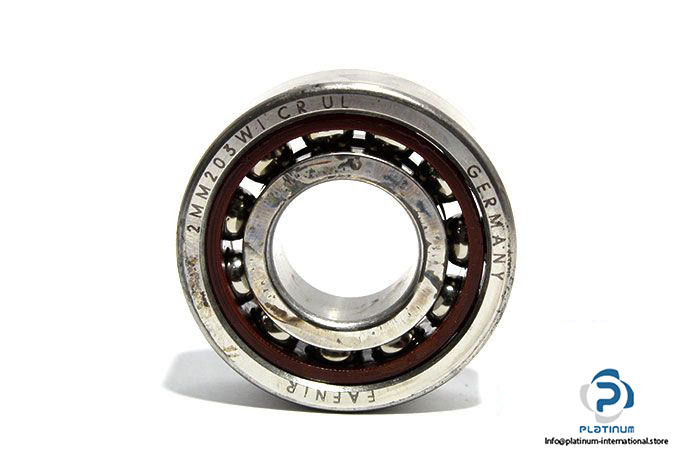

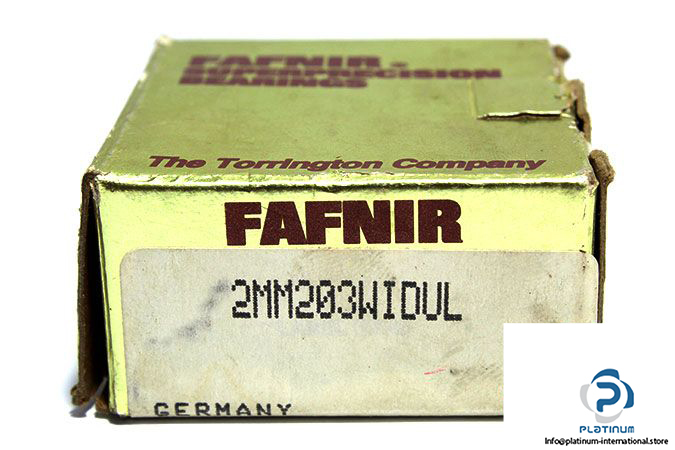

Fafnir 2MM203WIDUL Super Precision Angular Contact Ball Bearing

Manufacturer: FAFNIR

Type: Spindle Angular Contact Ball Bearing

Model: 2MM203WI CR DUL

Alternative part number: 7203



Dimensions:

Bore Diameter d: 17 mm

Outer diameter D: 40 mm

Width B: 12 mm

Contact angle α: 15 °

Mounting: Duplex pairs of bearings, light

Load Ratings

Static: 5900 N

Dynamic: 12000 N

Speed Rating(Ng): 41900 RPM

Operating Speeds (DUL)

For oil: 58100 RPM

For grease: 33500 RPM

Preload (DUL): 40 N

Cage: Phenolic cage
