Bearings Rolling Bearings Angular Contact

Fafnir 3MM9113W1 Angular Contact Ball Bearing

Name: FAFNIR 3MM9113W1 ANGULAR CONTACT BALL BEARING
SKU: 1058948
Availability: LimitedAvailability

fafnir-3MM9113W1-angular-contact-ball-bearing-new

fafnir-3MM9113W1-angular-contact-ball-bearing-new-1

fafnir-3MM9113W1-angular-contact-ball-bearing-new-2

fafnir-3MM9113W1-angular-contact-ball-bearing-new-3

Neu

Auf Lager2 EinheitenVersandbereit

Axialkugellager Das Fafnir 3MM9113W1 Axialkugellager ist ein hochpräzises Lager mit einem Bohrungsdurchmesser von 65 mm, einem Außendurchmesser von 100 mm und einem Kontaktwinkel von 25°, ideal für Hochgeschwindigkeitsanwendungen.

Hersteller

FAFNIR

SKU

1058948

Kategorie

Angular Contact

Zustand

Neu

100mm 3MM9113W1 65mm 7 9 Abec Angular Ball bearing bore Contact diameter Fafnir High-Speed ISO Outer P2 P4 Precision WI

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

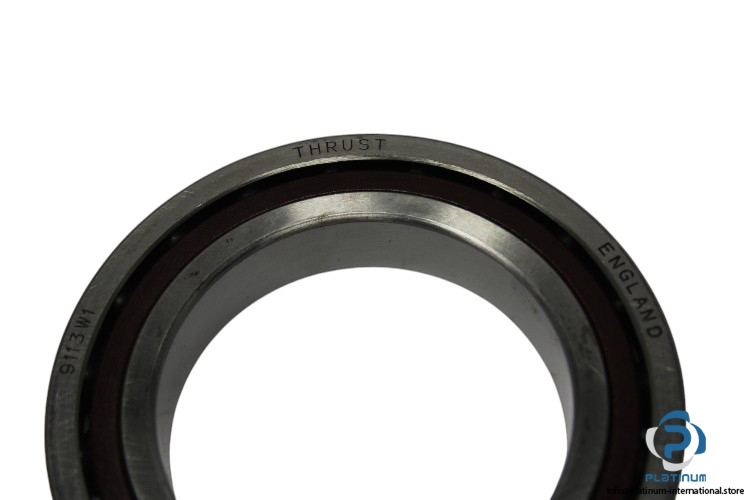

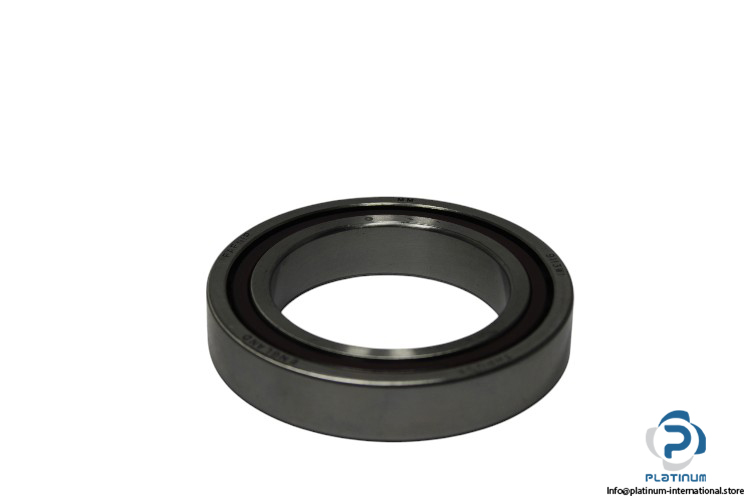

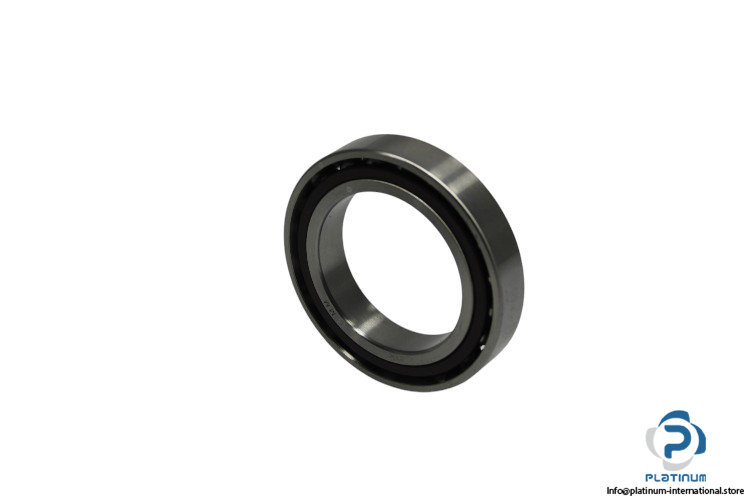

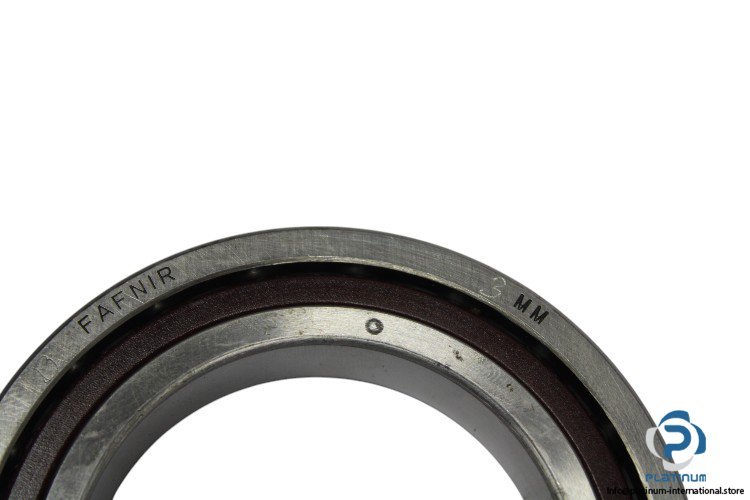

Fafnir 3MM9113W1 Angular Contact Ball Bearing

The Fafnir 3MM9113W1 Angular Contact Ball Bearing is a high-precision bearing designed for demanding applications requiring excellent speed and load capacity. Featuring WI angular contact construction with a 25Â° contact angle, this bearing ensures optimal performance in high-speed and high-precision environments.

Manufacturer: Fafnir

Type: Angular Contact Ball Bearing

Model: 3MM9113W1

Dimensions:

Basic Load Ratings:

Bore Diameter (d)	65 mm
Outer Diameter (D)	100 mm
Width (C)	18 mm
Construction	WI angular contact; low shoulder on outer ring
Contact Angle (Î±)	25Â°
Dynamic (Cr)	37,700 N
Static (C0r)	31,000 N
Speed Rating	11,400 RPM
Precision Class	Super high precision between ABEC 7 (ISO P4) and ABEC 9 (ISO P2)
