Fafnir Scjt 1 1/4 TWO-Bolt Flanged Unit

Name: FAFNIR SCJT 1 1/4 TWO-BOLT FLANGED UNIT
SKU: 1030931
Availability: LimitedAvailability

fafnir-SCJT-1-1_4-two-bolt-flanged-unit-(new)

fafnir-SCJT-1-1_4-two-bolt-flanged-unit-(new)-1

fafnir-SCJT-1-1_4-two-bolt-flanged-unit-(new)-2

fafnir-SCJT-1-1_4-two-bolt-flanged-unit-(new)-3

Neu

Auf Lager3 EinheitenVersandbereit

Hersteller: FAFNIR Typ: Zweischraubige Flanschlager mit Schraubensicherung Modell: SCJT 1 1/4 Lagernummer: YA104/R Gehäusenummer: T-40144

Hersteller

FAFNIR

SKU

1030931

Kategorie

Plummer Block Housing Units

Zustand

Neu

1.25 bearing bearings Block Fafnir flanged Housing inch Oval Pillow Two-Bolt Unit Units

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: FAFNIR
Type: Two-Bolt Flanged Mounted Bearings Setscrew Locking
Model: SCJT 1 1/4
Bearing Number: YA104/R
Housing Number: T-40144

Series: SCJT

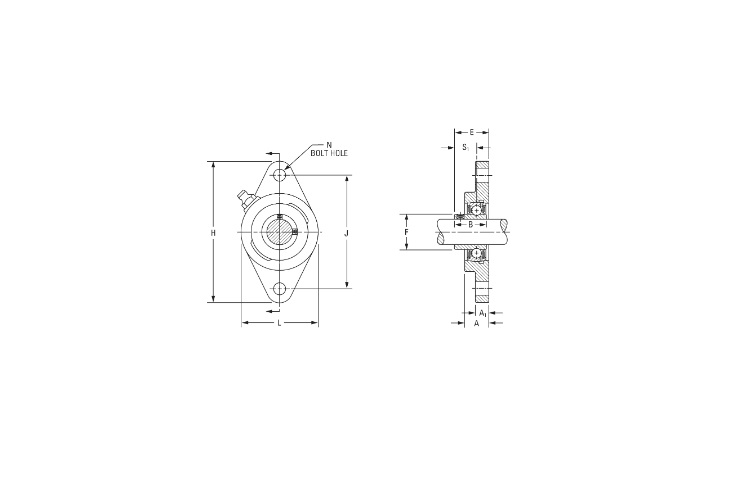

Dimensions
Shaft Size d: 1.25 Inch
Total Length H: 6.126 inch
Total Height L: 3.626 inch
Housing Width A: 0.969 inch
Bolt Hole Spacing J: 5.125 inch
Bolt Hole Size N : 0.516 inch
Inside Ring Width B: 1.4370 inch
Basic load rating:
Dynamic Cr: 3440 lbf
Static C0r: 6400 lbf
Seal Type: Narrow Shroud
Material, housing: Cast iron
Housing Construction: Two-Bolt Flange
Locking Device: Setscrew
