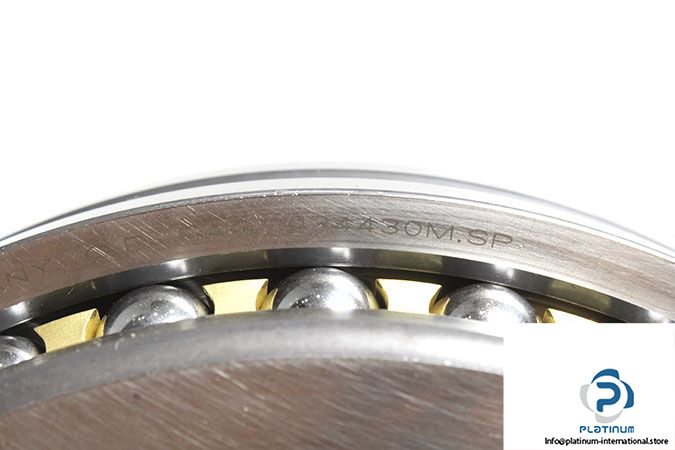

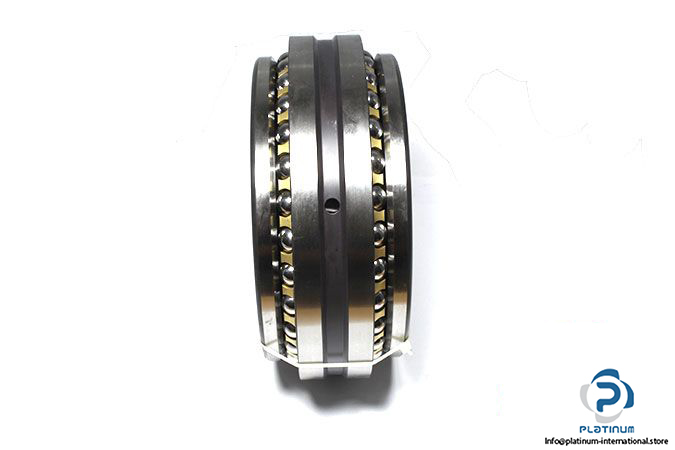

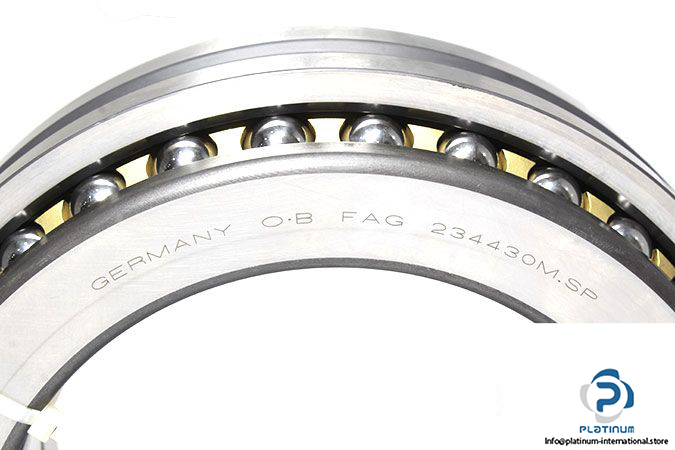

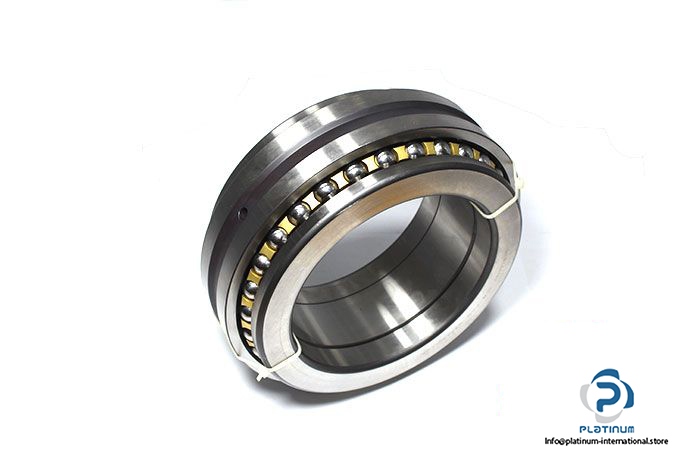

FAG 234430M.SP Axial Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Axial Angular Contact Ball Bearing

Model: 234430-M-SP

Replaces: 234430M.SP

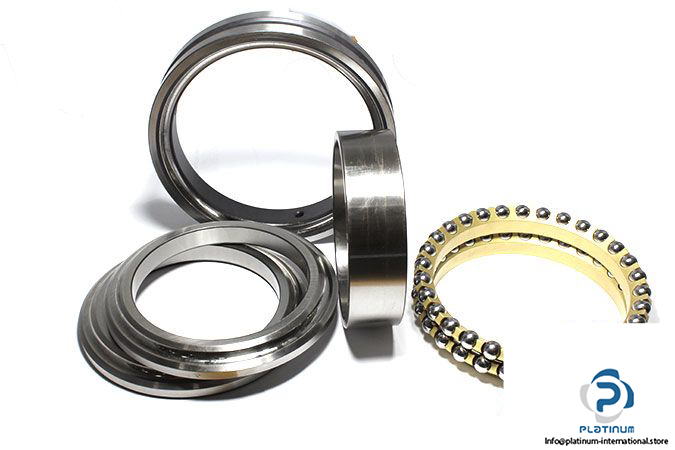

Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances

Bore Diameter: 150 mm

Outer diameter: 225 mm

Width B: 90 mm

Width – outer ring: 45 mm

Contact Angel: 60°

Chamfer r_min: 2.1 mm

Basic load ratings:

Dynamic C_r: 143 kN

Static C_0r: 510 kN

Fatigue load rating: 34.5 kN

Limiting speed – Grease n_G: 2600 rpm

Limiting Speed – Oil n_G: 3600 rpm

Cage: M; Solid Brass Cage

Tolerance: SP; Super Precision Specification, Tolerance Class SP

Weight: 10.7 kg
