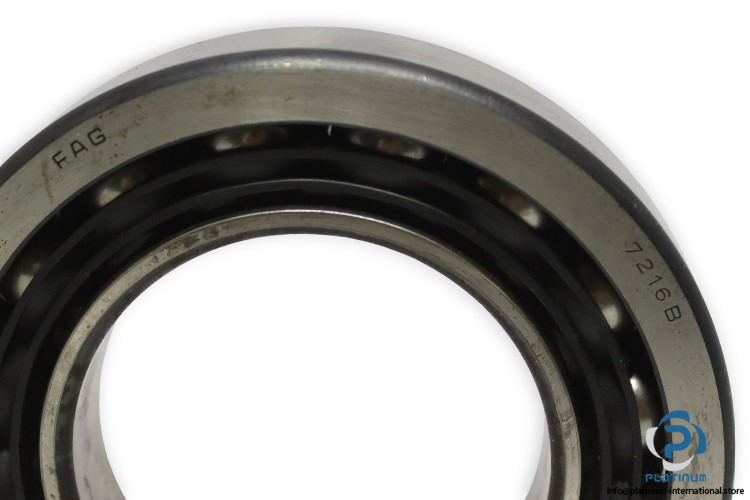

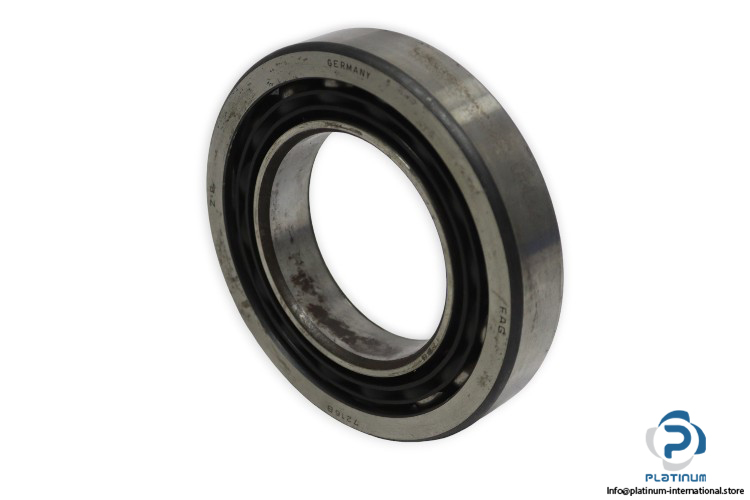

FAG 7216B.TVP Angular Contact Ball Bearing

Manufacturer: FAG
Type: ANGULAR CONTACT BALL BEARING
Model: 7216B TVP

Bore Diameter: 80 mm
Outer diameter: 140 mm
Width: 26 mm
Chamfer r_min: 2 mm
Contact Angle: 40°
Basic load ratings:
Dynamic C_r: 85000N
Static C_0r:   72000 N
Fatigue load rating:  4800 N
Limiting speed: 6400 1/min
Reference speed: 4950 1/min
Cage: TVP, solid cage made of glass-fiber reinforced polyamide PA66
Tolerance class: PN, Normal (PN)
Design variant: B
