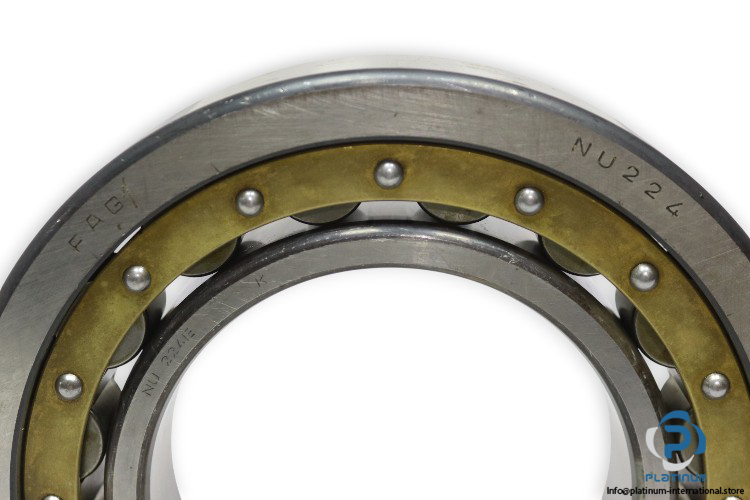

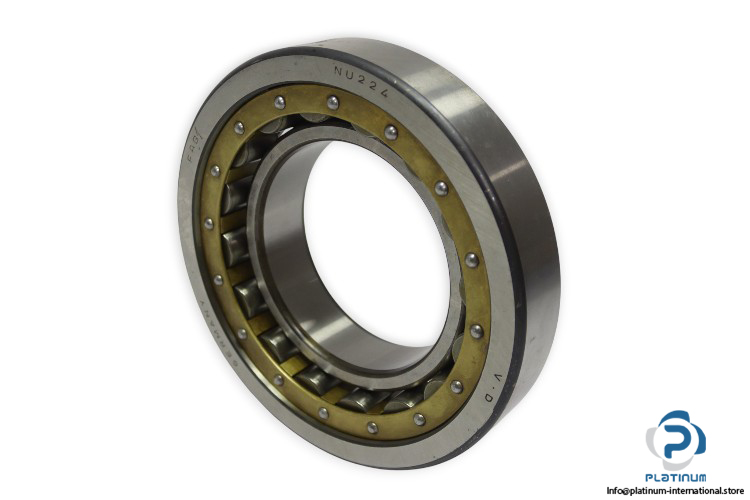

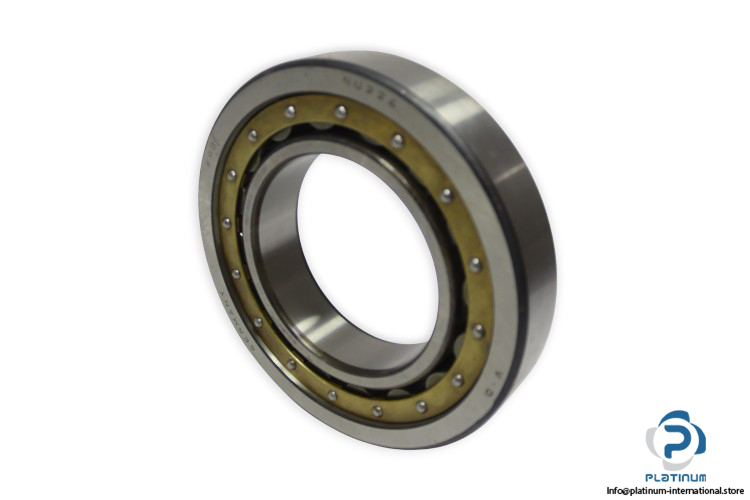

FAG NU 224E Cylindrical Roller Bearing

Name: FAG NU 224E CYLINDRICAL ROLLER BEARING
SKU: 1089662
Availability: LimitedAvailability

fag-NU-224E-cylindrical-roller-bearing-(used)

fag-NU-224E-cylindrical-roller-bearing-(used)-1

fag-NU-224E-cylindrical-roller-bearing-(used)-2

Gebraucht

Auf Lager1 EinheitVersandbereit

Zylinderrollenlager Einreihiges FAG NU224-E Zylinderrollenlager mit erhöhter Tragfähigkeit, Messingkäfig und NU-Bauform für hohe radiale Belastungen.

Hersteller

FAG

SKU

1089662

Kategorie

Cylindrical Bearings

Zustand

Gebraucht

bearing brass Cage Cylindrical Design Fag High Industrial Load NU NU224-E radial Roller Row Schaeffler Single

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

FAG NU224-E Cylindrical Roller Bearing

The FAG NU224-E is a single row cylindrical roller bearing designed for high radial load capacity and reliable operation in demanding industrial applications. Its NU design allows axial displacement in one direction, supporting thermal expansion and shaft alignment.

Manufacturer: FAG / Schaeffler

Type: Single Row Cylindrical Roller Bearing

Model: NU224-E

Bore Diameter (d)	120 mm
Outer Diameter (D)	215 mm
Width (B)	40 mm
Dynamic Load Rating (Cr)	390,000 N
Static Load Rating (C0r)	415,000 N
Fatigue Load Rating	54,000 N
Limiting Speed	5,600 rpm
Reference Speed	3,050 rpm
Cage	Brass
Design	NU
Suffix	E “ Increased Capacity Design
