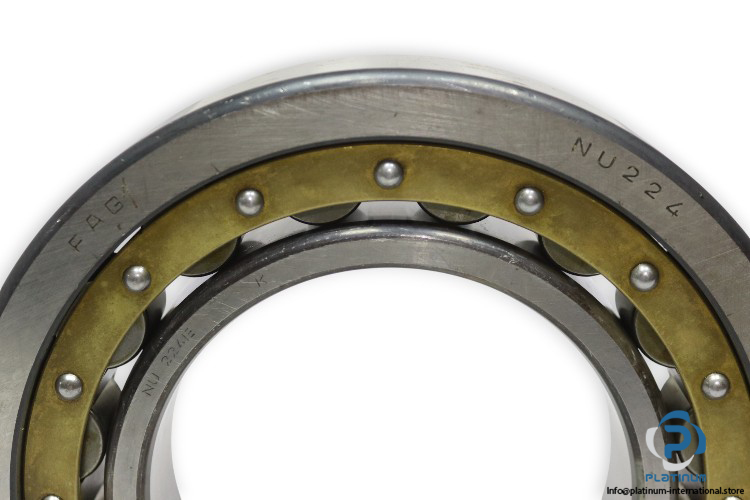

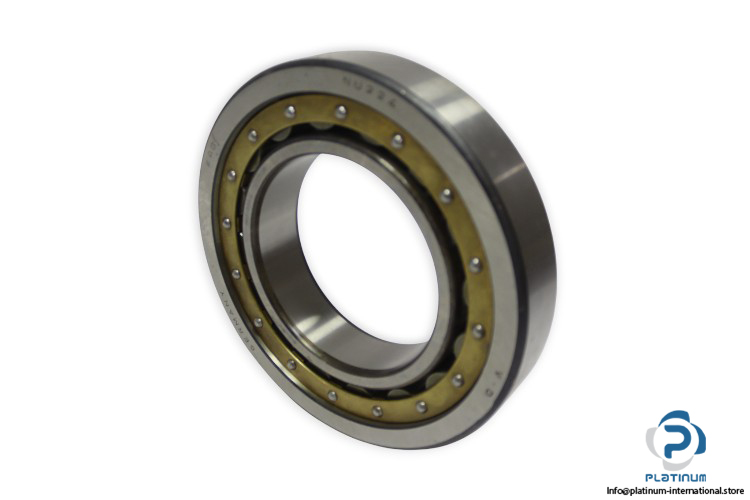

FAG NU 224E Cylindrical Roller Bearing
Used
In stock1 unitReady to ship
Cylindrical Roller Bearing
Single row FAG NU224-E cylindrical roller bearing with increased load capacity, brass cage, and NU design for high radial load applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG NU224-E Cylindrical Roller Bearing
The FAG NU224-E is a single row cylindrical roller bearing designed for high radial load capacity and reliable operation in demanding industrial applications. Its NU design allows axial displacement in one direction, supporting thermal expansion and shaft alignment.
Manufacturer: FAG / Schaeffler
Type: Single Row Cylindrical Roller Bearing
Model: NU224-E
| Bore Diameter (d) | 120 mm |
| Outer Diameter (D) | 215 mm |
| Width (B) | 40 mm |
| Dynamic Load Rating (Cr) | 390,000 N |
| Static Load Rating (C0r) | 415,000 N |
| Fatigue Load Rating | 54,000 N |
| Limiting Speed | 5,600 rpm |
| Reference Speed | 3,050 rpm |
| Cage | Brass |
| Design | NU |
| Suffix | E “ Increased Capacity Design |
