Festo 14324 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO-Zylinder Kompakter doppeltwirkender Pneumatikzylinder von Festo mit 20 mm Hub und 12 mm Kolbendurchmesser. Entwickelt für industrielle Automatisierung mit elastischem Dämpfungssystem und Näherungssensors zur Positionsmessung.
1220ActingActuatorAutomationCylinderDoubleDsnuDSNU-12-20-P-AFestoIndustrialISOmmPistonPneumaticStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

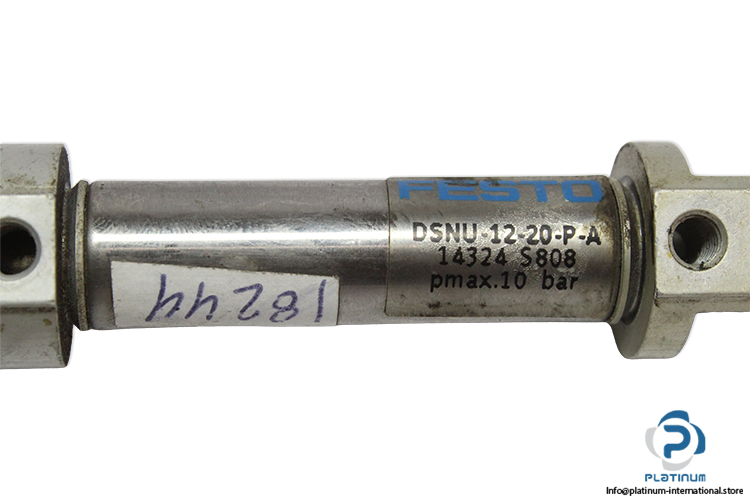

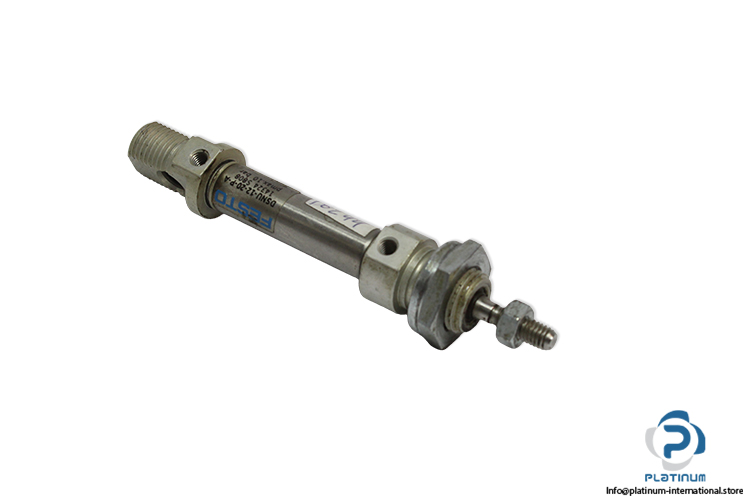

Festo DSNU-12-20-P-A ISO Cylinder
The Festo DSNU-12-20-P-A is a compact ISO pneumatic cylinder designed for reliable linear motion in industrial automation systems. This double-acting cylinder operates using compressed air and features elastic cushioning rings at both ends for smooth and controlled piston movement.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-12-20-P-A
Part No.: 14324
| Stroke | 20 mm |
| Piston Diameter | 12 mm |
| Cushioning | Elastic Cushioning Rings/Plates At Both Ends |
| Position Sensing | Via Proximity Sensor |
| Piston Rod Thread | M6 |
| Piston-Rod End | Male Thread |
| Max Operating Pressure | 10 bar |
| Mode Of Operation | Double-Acting |
| Ambient Temperature | -20 To 80 °C |
| Operating Medium | Compressed Air |
| Connection | 7 mm |
