Festo 156002 Compact Cylinder

FESTO COMPACT CYLINDER

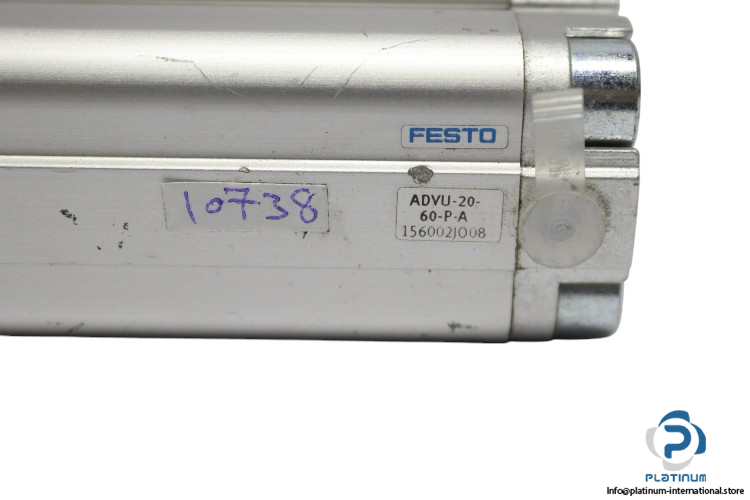

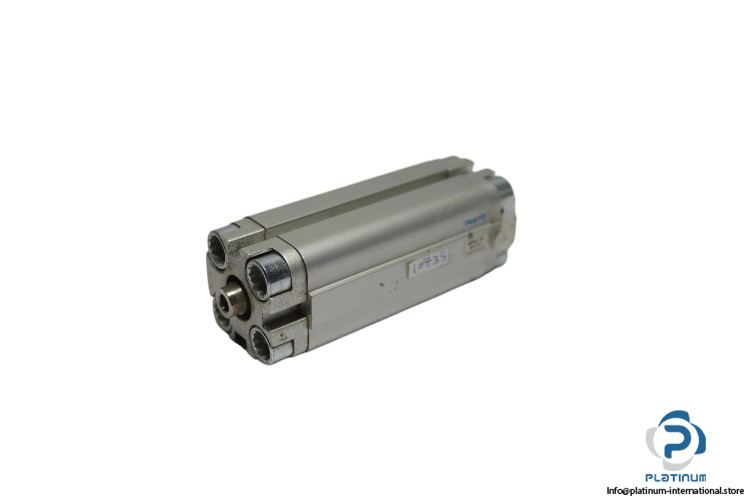

The Festo Compact Cylinder (Model: ADVU-20-60-P-A, Part No. 156002) offers high performance in a small and efficient package. With a stroke length of 60 mm and a piston diameter of 20 mm, this double-acting cylinder is equipped with elastic cushioning rings/pads at both ends for smooth operation and extended service life. It is ideal for use in a variety of pneumatic applications where space is limited and reliability is crucial.

Manufacturer: Festo

Type: Compact Cylinder

Model: ADVU-20-60-P-A

Part No.: 156002

Technical Specifications

• Stroke Length: 60 mm
• Piston Diameter: 20 mm
• Piston Rod Thread: Female
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Variant: Piston rod at one end
• Pneumatic Connection: 5 mm
• Temperature: -20 to 80 °C
