Festo 156002 Compact Cylinder
Used
In stock4 unitsReady to ship
compact cylinder
The Festo Compact Cylinder ADVU-20-60-P-A offers a 60 mm stroke, 20 mm piston diameter, and double-acting operation with elastic cushioning for smooth performance in pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO COMPACT CYLINDER

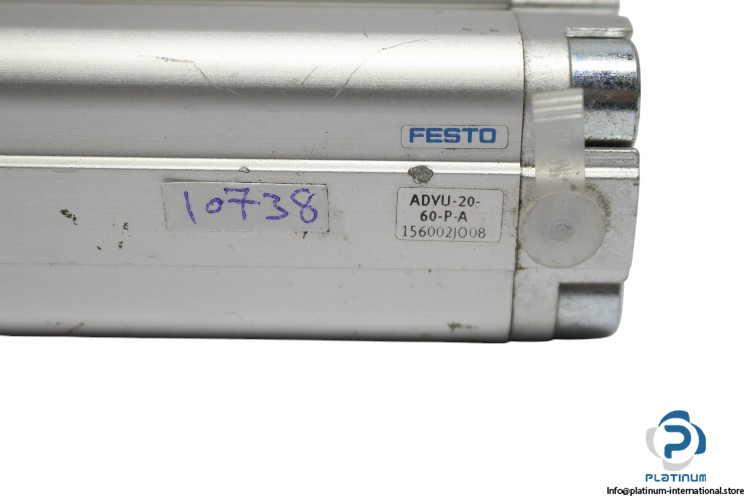

The Festo Compact Cylinder (Model: ADVU-20-60-P-A, Part No. 156002) offers high performance in a small and efficient package. With a stroke length of 60 mm and a piston diameter of 20 mm, this double-acting cylinder is equipped with elastic cushioning rings/pads at both ends for smooth operation and extended service life. It is ideal for use in a variety of pneumatic applications where space is limited and reliability is crucial.
Manufacturer: Festo
Type: Compact Cylinder
Model: ADVU-20-60-P-A
Part No.: 156002
Technical Specifications
- Stroke Length: 60 mm
- Piston Diameter: 20 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: 5 mm
- Temperature: -20 to 80 °C
